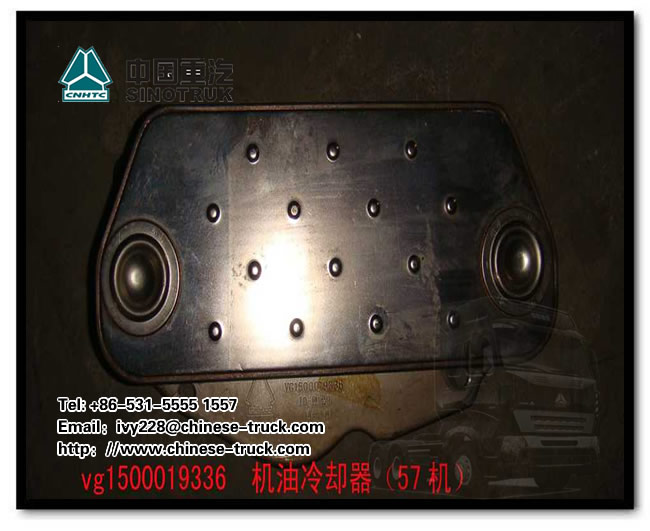

SINOTRUK Oil cooler core VG1500019336

Product Name Oil cooler core
Model Number VG1500019336
Material steel
Weight 2kg
Suited Truck HOWO engine
Place of Origin Shandong (China)
Delivery Time Within5-7working days after placing the order
Port any port in china
Minimum Order Quantity 1 piece
Package Detail general export packing poly bag cartons or according to requirement
Type Sinotruk spare parts

序号No. 图号                Part No. 发动机型号 \ 件数                                 Engine Type  \ Qty 规格标准                     Standard Specification 零件名称 Part Name
斯太尔 STEYR 豪运 HOYUN
62 87 69 47 62 87 69 47
- VG1500070050 1 1 1 1 1 1 1 1 　 机滤器座及滤芯总成 Oil filter assembly
1 VG1500070051 1 1 1 1 1 1 1 1 　 机油滤清器底座组件 Oil filter body
2 VG61000070005 2 2 2 2 2 2 2 2 　 旋转式机油滤芯总成 Oil filter
3 VG1500010334 1 1 1 1 1 1 1 1 　 机油冷却器（8片） Oil cooler
4 VG1400010032 2 2 2 2 2 2 2 2 　 密封圈 Sealing ring
5 190003962051 1 1 1 1 1 1 1 1 M30×1.5-ST-A3C DIN7604 轻型六角头圆柱螺塞 Screw plug
6 VG2600010735 1 1 1 1 1 1 1 1   复合垫圈 Sealing ring
7 VG14070068 1 1 1 1 1 1 1 1 　 安全阀弹簧 Valve spring
8 VG14070069 1 1 1 1 1 1 1 1 　 安全阀 Valve cone
9 VG1500070097 1 1 1 1 1 1 1 1 　 主油道限压阀总成 Discharging valve assembly
10 190003862443 2 2 2 2 2 2 2 2 M8×40-8.8-ZN DIN912 内六角圆柱头螺钉 Socket cap screw
11 190003932023 8 8 8 8 6 6 6 6 B8-ZN DIN137 波形弹性垫圈 Wave spring washer
12 190003862482 2 2 2 2 2 2 2 2 M8×90- 8.8-ZN DIN912 内六角圆柱头螺钉 Socket cap screw
13 190003862419 4 4 4 4 4 4 4 4 M8×16-8.8-ZN DIN912 内六角圆柱头螺钉 Socket cap screw
MORE OIL COOLER AS FOLLOWS
Applicable Part No.
D10 high horse power/EU‖/2-valve common rail VG1500010334
EGR VG1500019336
D10 high horse power 4-valve common rail VG1500019335
d12 VG1246070012
