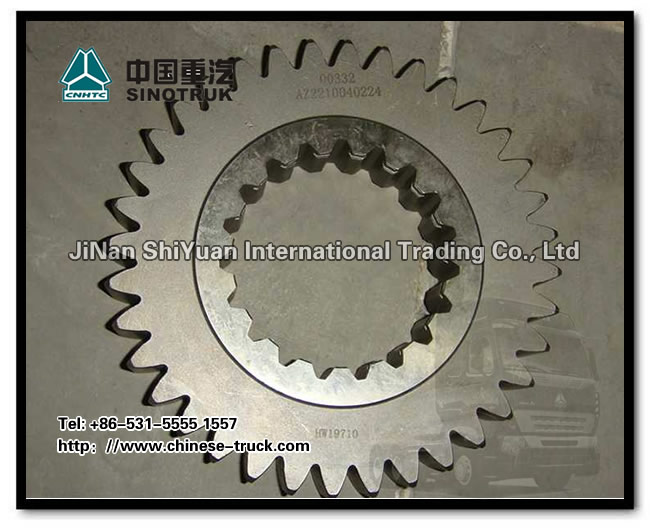

Product Name | Main shaft/4 |
Model Number | AZ2210040224 |
Suited Truck | HOWO series |
Place of Origin | Shandong (China) |
Delivery Time | Sufficient storage |
Port | any port in china |
Minimum Order Quantity | 1 piece |
Package Detail | Carton Wooden box or according to customer requirements |
Type | Sinotruk spare parts |
序号 | 零 件 号 | 数 量 | 适 用 范 围 | 中 文 名 称 | 英 文 名 称 |
1 | F99882 | 1 | 副箱主轴 | Main shaft | |
1 | JS180-1707105 | 1 | 9H,9T,8F | 副箱主轴 | Main shaft |
2 | 14332 | 1 | 副箱主轴垫圈 | Main shaft washer | |
2 | JS180-1707107 | 1 | 9H,9T,8F | 副箱主轴垫圈 | Main shaft washer |
3 | 14331 | 1 | 副箱主轴垫片 | Main shaft washer | |
4 | 19726 | 1 | 副箱主轴减速齿轮 | Release gear | |
4 | JS100T-1707121 | 1 | 8B,8C | 副箱主轴减速齿轮 | Release gear |
4 | 19665 | 1 | 9B | 副箱主轴减速齿轮 | Release gear |
4 | JS130T-1707121 | 1 | 8D,8E | 副箱主轴减速齿轮 | Release gear |
4 | 19165 | 1 | 9A | 副箱主轴减速齿轮 | Release gear |
4 | JS180-1707106 | 1 | 9H,9T | 副箱主轴减速齿轮 | Release gear |
4 | JS180T-1707121 | 1 | 8F | 副箱主轴减速齿轮 | Release gear |
5 | F14327 | 1 | 止动环 | Snap ring | |
6 | 19466 | 1 | 副箱减速齿轮垫片 | Washer | |
6 | JS180-1707108 | 1 | 9H,9T,8F | 副箱减速齿轮垫片 | Washer |
7 | F96006 | 1 | 凸缘螺母 | Flange nut |
