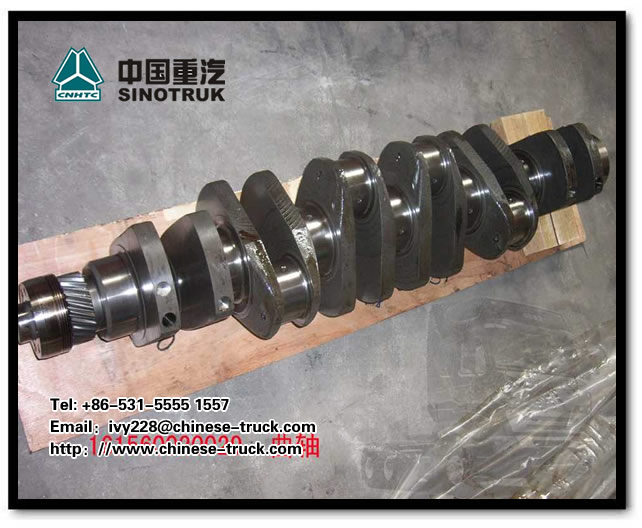

| Product Name | WEICHAI EURO2 Engine Crankshaft |
| Model Number | 161560020029 |
| Material | forged steel |
| Weight | 92.08kg |
| Suited Truck | Shacman,Shaanxi,Shanqi ,D’Long,A’Long, F2000 Howo , Sinotruck |
| Place of Origin | Shandong (China) |
| Delivery Time | Within 7-15 working days after placing the order |
| Port | Qingdao Tianjin Shanghai |
| Minimum Order Quantity | 1 piece |
| Package Detail | Carton, wooden box or according to customer requirements |
| Type | Sinotruk spare parts |
| Crankshaft and Flywheel/曲轴飞轮 | ||||||||||||
| 序号No. | 图号 Part No. | 发动机型号 \ 件数 Engine Type \ Qty | 规格标准 Standard Specification | 零件名称 | Part Name | |||||||
| 斯太尔 STEYR | 豪运 HOYUN | |||||||||||
| 62 | 87 | 69 | 47 | 62 | 87 | 69 | 47 | |||||
| - | 161560020029 | 1 | 1 | 1 | 1 | 曲轴总成 | Crankshaft assembly | |||||
| 161500020071 | 1 | 1 | 1 | 1 | 曲轴总成 | Crankshaft assembly | ||||||
| 1 | 161560020024 | 1 | 1 | 1 | 1 | 曲轴 | Crankshaft | |||||
| 161500020012 | 1 | 1 | 1 | 1 | 曲轴 | Crankshaft | ||||||
| 2 | VG14020038 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 曲轴齿轮 | Crankshaft gear | |
| 3 | VG1500020070 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 法兰 | Flange | |
| 4 | 190003901418 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 8m6×18 DIN7 | 圆柱销 | Straight pin |
| 5 | 190003901504 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 10h8×10 DIN7 | 圆柱销 | Straight pin |
| 6 | 190003960569 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | A8×7×28 DIN6885 | 普通平键 | Straight key |
| 7 | 190003802558 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | M10×70 DIN933 | 六角头螺栓 | Hex head bolt |
| 8 | VG1560020010 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 减振器 | Vibration damper | |
| 9 | VG1560020020 | 1 | 1 | 1 | 1 | 皮带轮 | Belt pulley | |||||
| 10 | 612600020220 | 1 | 1 | 飞轮 | Flywheel | |||||||
| 161500020041 | 1 | 1 | 1 | 1 | 1 | 1 | 飞轮 | Flywheel | ||||
| 11 | VG2600020208 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 飞轮齿圈 | Starter ring gear | |
| 12 | 190003813571 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | Q1201090F3 | 双头螺柱 | Stud |
| 13 | 190003800579 | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 | M10×85-8.8-ZN DIN931 | 六角头螺栓 | Hex head bolt |
| 14 | 190003871305 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | M10-8.8-ZN DIN934M | 1型六角螺母 | Hexagon nut |
| 15 | 190003932024 | 12 | 12 | 12 | 12 | 12 | 12 | 12 | 12 | B10 | 波形弹性垫片 | Wave spring washer |
