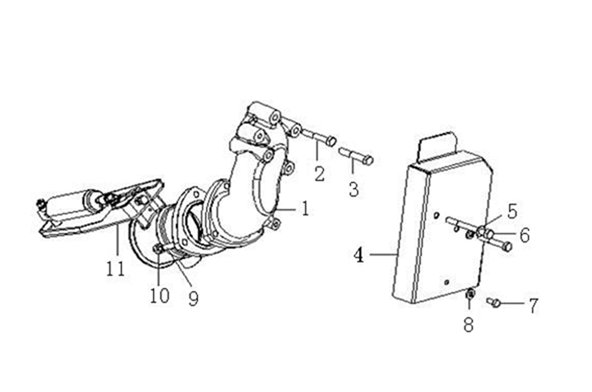

序号 No. |
名称 | Part Name |
零件图号 Part No. |
每台数量 Q’ty |
规格标准 Standard Specification |
备注 Remark |
|||
| MC0724G401 | MC0728G401 | MC0731G401 | MC0731G402 | ||||||
| 1 | 排气弯管 | Exhaust elbow | 081V15201-0112 | 1 | 1 | 1 | 1 | ||
| 2 | 六角头螺栓 | Bolt | 080V90001-0123 | 1 | 1 | 1 | 1 | ||
| 3 | 六角头螺栓 | Bolt | 082V90001-0129 | 1 | 1 | 1 | 1 | M10X60 | |
| 4 | 隔热罩 | Insulation cover | 081V15215-5011 | 1 | 1 | 1 | 1 | ||
| 5 | 垫圈 | Washer | 080V90710-0207 | 2 | 2 | 2 | 2 | ||
| 6 | 六角头螺栓 | Bolt | 082V90001-0128 | 2 | 2 | 2 | 2 | M10X90 | |
| 7 | 六角头螺栓 | Bolt | MQ6-01289-0266 | 2 | 2 | 2 | 2 | Q150B-M 8X16-8.8-GB/T5267.1-C3J | |
| 8 | 垫圈 | Washer | 080V90710-0314 | 1 | 1 | 1 | 1 | D9/19/3 | |
| 9 | 双头螺栓 | Bolt | 080V90201-0251 | 3 | 3 | 3 | 3 | M10X25-SD HWF | |
| 10 | 六角螺母 | Nut | 080V90501-0202 | 3 | 3 | 3 | 3 | M10-S13 | |
| 11 | 排气蝶阀 | Exhaust valve | 082V15600-6134 | 1 | 1 | 1 | 1 | ||
