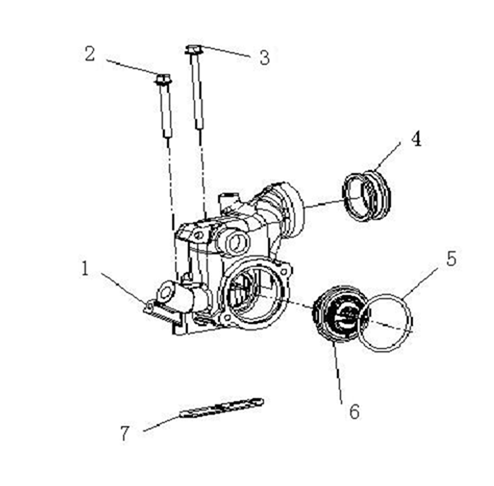

序号 No. |
名称 | Part Name |
零件图号 Part No. |
每台数量 Q’ty |
规格标准 Standard Specification |
备注 Remark |
|||
| MC0724G401 | MC0728G401 | MC0731G401 | MC0731G402 | ||||||
| 1 | 节温器壳 | Thermostat housing | 08OVO6404-0098 | 1 | 1 | 1 | 1 | ||
| 2 | 六角法兰面螺栓 | Bolt | MQ6-03216-8313 | 2 | 2 | 2 | 2 | Q186-M8X65-10.9-MAN183-B1 | |
| 3 | 六角法兰面螺栓 | Bolt | MQ6-03216-8316 | 1 | 1 | 1 | 1 | Q186-M8X90-10.9-MAN183-B1 | |
| 4 | 插管 | Pipe | 080V98182-0009 | 1 | 1 | 1 | 1 | ||
| 5 | O型圈 | O-ring | MQ6-56939-0040 | 1 | 1 | 1 | 1 | 58,8 X 4,2 N-FPM 1-60 | |
| 6 | 节温器元件 | Thermostat element | 082V06402-0115 | 1 | 1 | 1 | 1 | ||
| 7 | 节温器垫片 | Thermostat gasket | 080V06904-0044 | 1 | 1 | 1 | 1 | ||
