序号 No. |
名称 | Part Name |
零件图号 Part No. |
每台数量 Q’ty |
规格标准 Standard Specification |
备注 Remark |
|||
| MC0724G401 | MC0728G401 | MC0731G401 | MC0731G402 | ||||||

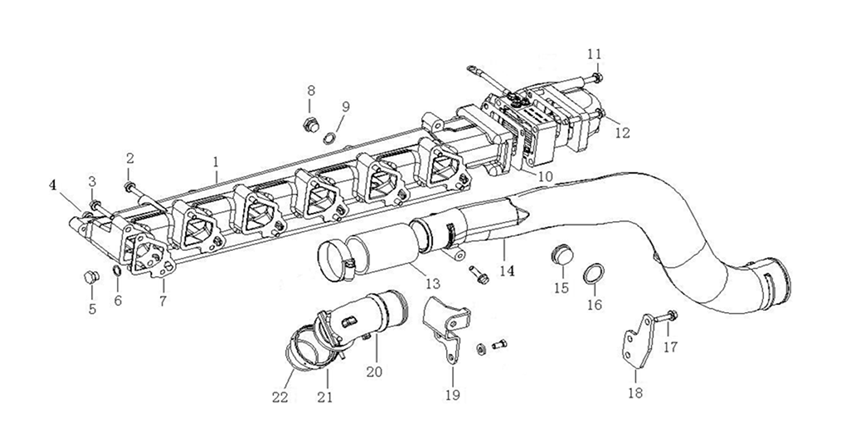

| 1 | 进气管 | Intake manifold | 081V08201-0467 | 1 | 1 | 1 | 1 | ||
| 2 | 六角法兰面螺栓 | Bolt | MQ6-03216-8319 | 5 | 5 | 5 | 5 | Q186-M8X120-10.9-MAN183-B1 | |
| 3 | 六角法兰面螺栓 | Bolt | MQ6-03216-8309 | 6 | 6 | 6 | 6 | Q186-M8X45-10.9-MAN183-B1 | |
| 4 | 六角法兰面螺栓 | Bolt | MQ6-03216-8317 | 1 | 1 | 1 | 1 | Q186-M8X100-10.9-MAN183-B1 | |
| 5 | 闭锁螺栓 | Bolt | MQ6-08092-0144 | 1 | 1 | 1 | 1 | A-M14X1,5-ST-A3C | |
| 6 | 复合密封垫圈 | Sealing washer | MQ6-56631-0106 | 1 | 1 | 1 | 1 | BS-14,7 X22,0 -ST/FPM1-80 | |
| 7 | 进气管垫片 | Gasket | 081V08902-0212 | 6 | 6 | 6 | 6 | ||
| 8 | 闭锁螺栓 | Bolt | MQ6-08092-0145 | 1 | 1 | 1 | 1 | A-M16X1.5-ST-A3C | |
| 9 | 复合密封垫圈 | Sealing washer | MQ6-56631-0107 | 1 | 1 | 1 | 1 | BS-16,7 X24,0 -ST/FPM1-80 | |
| 10 | 垫片 | Gasket | 082V08902-0203 | 2 | 2 | 2 | 2 | ||
| 11 | 六角法兰面螺栓 | Bolt | MQ6-03216-8320 | 2 | 2 | 2 | 2 | Q186-M8X130-10.9-MAN183-B1 | |
|
序号 No. |
名称 | Part Name |
零件图号 Part No. |
每台数量 Q’ty |
规格标准 Standard Specification |
备注 Remark |
|||
| MC0724G401 | MC0728G401 | MC0731G401 | MC0731G402 | ||||||
| 12 | 六角法兰面螺栓 | Bolt | MQ6-03216-8314 | 1 | 1 | 1 | 1 | Q186-M8X70-10.9-MAN183-B1 | |
| 13 | 管 | Pipe | 080V96301-0108 | 1 | 1 | 1 | 1 | M 3055-607L X100 | |
| 14 | 中冷管 | Cooling pipe | 081V09411-0916 | 1 | 1 | 1 | 1 | ||
| 15 | 闭锁螺栓 | Bolt | MQ6-08042-0211 | 1 | 1 | 1 | 1 | M30X1,5-ST-ZNPHR3F | |
| 16 | 复合密封垫圈 | Sealing washer | MQ6-56631-0114 | 1 | 1 | 1 | 1 | BS-31 X39 -ST/FPM1-80 | |
| 17 | 六角法兰面螺栓 | Bolt | MQ6-03216-8408 | 1 | 1 | 1 | 1 | Q186-M10X40-10.9-MAN183-B1 | |
| 18 | 进气管支架 | Support | 081V09440-0165 | 1 | 1 | 1 | 1 | ||
| 19 | 中冷管支架 | Support | 081V09440-0127 | 1 | 1 | 1 | 1 | ||
| 20 | 增压进气弯管 | Pipe | 081V09411-0647 | 1 | 1 | 1 | 1 | ||
| 21 | 夹子 | Clamp | 080V97445-0052 | 1 | 1 | 1 | 1 | ||
| 22 | 密封圈 | O-ring | MQ6-56343-1313 | 1 | 1 | 1 | 1 | 62X3 B-FPM 1-70 | |
| 23 | 进气弯管 | Pipe | 081V09411-0743 | 1 | 1 | 1 | 1 | ||
| 24 | 进气法兰 | Flange | 082V08902-0205 | 1 | 1 | 1 | 1 | ||
|
序号 No. |
名称 | Part Name |
零件图号 Part No. |
每台数量 Q’ty |
规格标准 Standard Specification |
备注 Remark |
|||
| MC0724G401 | MC0728G401 | MC0731G401 | MC0731G402 | ||||||
| 25 | 软管卡箍 | Hose clamp | MQ6-67129-0021 | 2 | 2 | 2 | 2 | TORRO M FEDER 60-80/12-W2 | |
