序号 No. |
名称 | Part Name |
零件图号 Part No. |
每台数量 Q’ty |
规格标准 Standard Specification |
备注 Remark |
|||
| MC0724G401 | MC0728G401 | MC0731G401 | MC0731G402 | ||||||

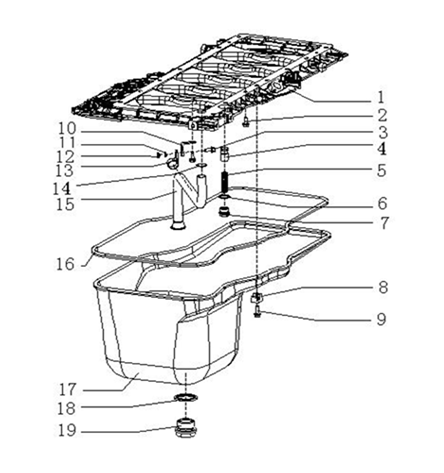

| 1 | 曲轴箱过渡板 | Crankcase transition board | 080V01108-0060 | 1 | 1 | 1 | 1 | RO-3030 | |
| 2 | 六角法兰面螺栓 | Bolt | MQ6-03215-8309 | 19 | 19 | 19 | 19 | Q186-M8X45-8.8-MAN183-B1 | |
| 3 | 六角法兰面螺栓 | Bolt | MQ6-03215-8304 | 4 | 4 | 4 | 4 | Q186-M 8X20-8.8-MAN183-B1 | |
| 4 | 限压阀活塞 | Pressure piston | 080V05410-0056 | 1 | 1 | 1 | 1 | ||
| 5 | 限压阀弹簧 | Pressure spring | 080V97601-0226 | 1 | 1 | 1 | 1 | ||
| 6 | 复合密封垫圈 | Washer | MQ6-56631-0111 | 1 | 1 | 1 | 1 | BS-24,7 X32,0 -ST/FPM1-80 | |
| 7 | 螺塞 | Plugs | 080V90310-0153 | 1 | 1 | 1 | 1 | M24X1,5 | |
| 8 | 油底壳托块 | Holding piece | 080V05840-0097 | 12 | 12 | 12 | 12 | ||
| 9 | 六角法兰面螺栓 | Bolt | MQ6-03216-8309 | 12 | 12 | 12 | 12 | Q186-M8X45-10.9-MAN183-B1 | |
| 10 | 支架 | Support | 080V97485-0262 | 2 | 2 | 2 | 2 | ||
| 11 | 垫圈 | Washer | MQ6-15013-0411 | 2 | 2 | 2 | 2 | GB/T97.1-8-200HV-MAN183-B1 | |
|
序号 No. |
名称 | Part Name |
零件图号 Part No. |
每台数量 Q’ty |
规格标准 Standard Specification |
备注 Remark |
|||
| MC0724G401 | MC0728G401 | MC0731G401 | MC0731G402 | ||||||
| 12 | 六角螺母 | Nut | MQ6-11240-2104 | 2 | 2 | 2 | 2 | AM8-8-A2C | |
| 13 | 管夹 | Pipe clip | 080V97401-0390 | 2 | 2 | 2 | 2 | ||
| 14 | O型圈 | O-ring | MQ6-56333-258 | 1 | 1 | 1 | 1 | 25X3 B-FPM 1-70 | |
| 15 | 集滤器 | Strainer | 080V05703-5007 | 1 | 1 | 1 | 1 | ||
| 16 | 油底壳密封垫 | Washer | 080V05904-0195 | 1 | 1 | 1 | 1 | ||
| 17 | 油底壳 | Oil pan | 080V05801-5725 | 1 | 1 | 1 | 1 | ||
| 18 | 复合密封垫圈 | Washer | MQ6-56631-0110 | 1 | 1 | 1 | 1 | BS-22,7 X30,0 -ST/FPM1-80 | |
| 19 | 螺塞 | Plugs | MQ6-08042-0207 | 1 | 1 | 1 | 1 | M22X1,5-ST-GB/T 11376-ZNPHR3F | |
| 20 | 机油泵组件 | Oil pump assemble | 080V05100-6297 | 1 | 1 | 1 | 1 | ||
| 21 | 六角头螺栓 | Bolt | MQ6-01284-7113 | 3 | 3 | 3 | 3 | M8X20-10.9-MAN183-PHR | |
| 22 | 垫圈 | Washer | MQ6-15013-0411 | 3 | 3 | 3 | 3 | GB/T97.1-8-200HV-MAN183-B1 | |
| 23 | 弹性垫圈 | Spring washer | MQ6-16044-0212 | 1 | 1 | 1 | 1 | B12-ZNPHR 3F | |
|
序号 No. |
名称 | Part Name |
零件图号 Part No. |
每台数量 Q’ty |
规格标准 Standard Specification |
备注 Remark |
|||
| MC0724G401 | MC0728G401 | MC0731G401 | MC0731G402 | ||||||
| 24 | 六角螺母 | Nut | MQ6-11204-0103 | 1 | 1 | 1 | 1 | M 12X1,5-17H-ZNPHR3F | |
| 25 | 连接套 | Connected sets | 080V05207-0010 | 1 | 1 | 1 | 1 | ||
| 26 | O型圈 | O-ring | MQ6-56333-245 | 2 | 2 | 2 | 2 | 19X3 B-FPM 1-70 | |
| 27 | 螺塞 | Plugs | MQ6-08042-0605 | 1 | 1 | 1 | 1 | M18X1,5-ST-GB/T 5267.1-电镀锌A3C | |
| 28 | 复合密封垫圈 | Washer | MQ6-56631-0109 | 1 | 1 | 1 | 1 | BS-18,7 X26,0 -ST/FPM1-80 | |
