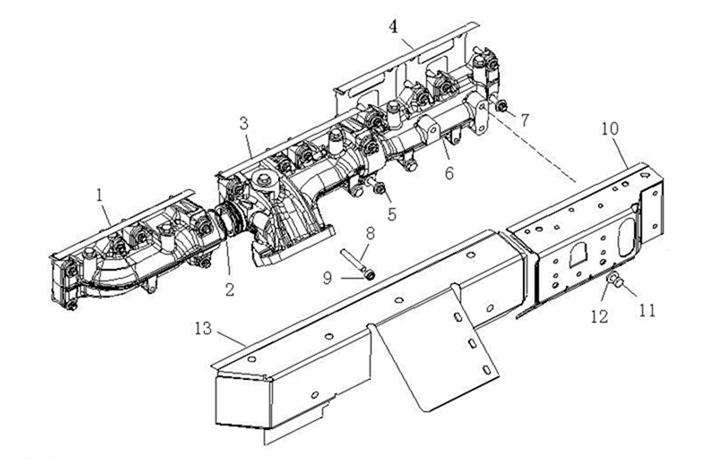

序号 No. |
名称 | Part Name |
零件图号 Part No. |
每台数量 Q’ty |
规格标准 Standard Specification |
备注 Remark |
|||
| MC0724G401 | MC0728G401 | MC0731G401 | MC0731G402 | ||||||
| 1 | 五、六缸排气歧管 | Exhaust manifold（5、6） | 081V08102-0253 | 1 | 1 | 1 | 1 | ||
| 2 | 排气管密封环 | Sealing ring | 080V98701-0085 | 16 | 16 | 16 | 16 | ||
| 3 | 三、四缸排气歧管 | Exhaust manifold（3、4） | 081V08102-0209 | 1 | 1 | 1 | 1 | ||
| 4 | 排气管垫片 | Gasket | 081V08901-0269 | 3 | 3 | 3 | 3 | ||
| 5 | 排气管螺栓 | Bolt | 080V9叫90-0090 | 4 | 4 | 4 | 4 | M8X80 HWF | |
| 6 | 一、二缸排气歧管 | Exhaust manifold（1、2） | 081V08102-0161 | 1 | 1 | 1 | 1 | ||
| 7 | 排气管螺栓 | Bolt | 080V90490-0102 | 18 | 18 | 18 | 18 | M8X40 WF | |
| 8 | 双头螺栓 | Bolt | 080V90210-0012 | 2 | 2 | 2 | 2 | M8X40 WF | |
| 9 | 六角螺母 | Nut | MQ6-11249-0017 | 2 | 2 | 2 | 2 | A M8-GA-C2J | |
| 10 | 隔热罩1-2缸 | Insulation cover | 080V08120-5284 | 1 | 1 | 1 | 1 | ||
| 11 | 六角头螺栓 | Bolt | MQ6-01289-0266 | 10 | 10 | 10 | 10 | Q150B-M X16-8.8-GB/T5267.1-C3J | |
| 12 | 垫圈 | Washer | 080V90710-0314 | 10 | 10 | 10 | 10 | D9/19/3 | |
| 13 | 隔热罩3-6缸 | Insulation cover | 081V08120-5285 | 1 | 1 | 1 | 1 | ||
