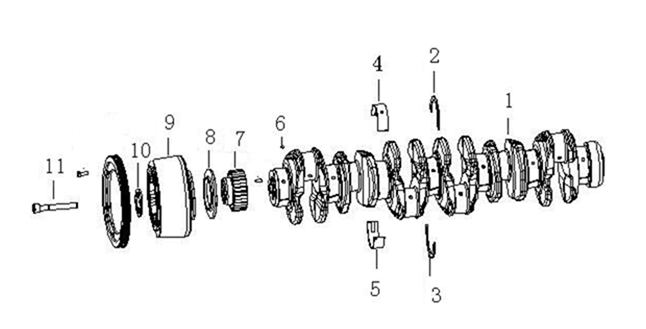

序号 No. |
名称 | Part Name |
零件图号 Part No. |
每台数量 Q’ty |
规格标准 Standard Specification |
备注 Remark |
|||
| MC0724G401 | MC0728G401 | MC0731G401 | MC0731G402 | ||||||
| 1 | 曲轴 | Crankshaft | 080-02100-6022 | 1 | 1 | 1 | 1 | ||
| 2 | 止推片上片 | Thrust piece poorly | 080V01114-0222 | 2 | 2 | 2 | 2 | ||
| 3 | 止推片下片 | Thrust piece Showings | 080V01114-0223 | 2 | 2 | 2 | 2 | ||
| 4 | 主轴瓦上瓦 | Main bearing | 082V01113-0129 | 7 | 7 | 7 | 7 | ||
| 5 | 主轴瓦下瓦 | Main bearing | 081V01113-0130 | 7 | 7 | 7 | 7 | ||
| 6 | 密封塞 | Plug | MQ6-21649-0003 | 1 | 1 | 1 | 1 | 6X5 | |
| 7 | 曲轴前端分油齿轮 | Gear | 080V02115-0251 | 1 | 1 | 1 | 1 | ||
| 8 | 挡油环 | Ring | 080V01505-0169 | 1 | 1 | 1 | 1 | ||
| 9 | 减振器 | Vibration damper | 080V02201-0158 | 1 | 1 | 1 | 1 | ||
| 10 | 垫片 | Gasket | 080V02205-0021 | 1 | 1 | 1 | 1 | ||
| 11 | 内六角圆柱头螺栓 | Bolt | 080V90030-0036 | 6 | 6 | 6 | 6 | ||
