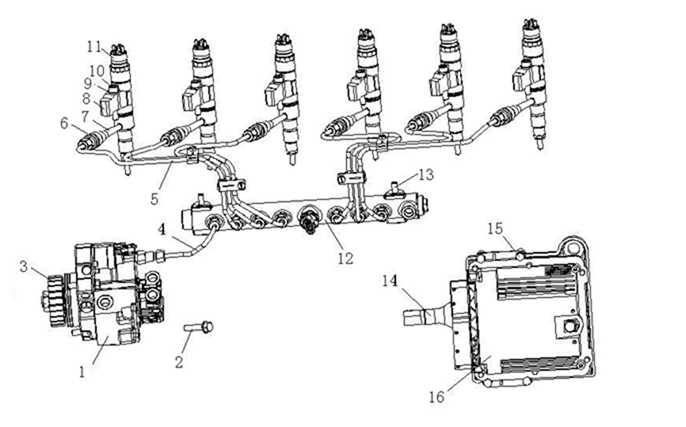

序号 No. |
名称 | Part Name |
零件图号 Part No. |
每台数量 Q’ty |
规格标准 Standard Specification |
备注 Remark |
|||
| MC0724G401 | MC0728G401 | MC0731G401 | MC0731G402 | ||||||
| 1 | 喷油泵 | Injection pump | 080Vlll03-7763 | 1 | 1 | 1 | 1 | ||
| 2 | 六角法兰面螺栓 | Bolt | MQ6-03216-8308 | 3 | 3 | 3 | 3 | Q186-M8X40-10.9-MAN183-B1 | |
| 3 | 喷油泵齿轮 | Gear | 080Vll301-0259 | 1 | 1 | 1 | 1 | ||
| 4 | 泵-轨高压油管 | Pressure pipe | 080V10304-0295 | 1 | 1 | 1 | 1 | ||
| 5 | 1-6缸高压油管组件 | Pressure pipe | OSOVIO300-6151 | 1 | 1 | 1 | 1 | ||
| 6 | 压紧螺母 | Nut | 080V10108-0013 | 6 | 6 | 6 | 6 | ||
| 7 | 进油接管 | Pipe | OSOVIO3OI-6159 | 6 | 6 | 6 | 6 | ||
| 8 | 喷油器压紧块 | Injector clamp | 080V10104-0056 | 6 | 6 | 6 | 6 | ||
| 9 | 球面垫圈 | Washer | MQ6-15140-2102 | 6 | 6 | 6 | 6 | C 8,4-GB/T 11376-ZNPHR3F | |
| 10 | 圆柱头螺栓 | Bolt | MQ6-02191-0413 | 6 | 6 | 6 | 6 | M8X45-10.9-MAN183-PHR | |
| 11 | CR-喷油器 | CR-injector | 080V10100-6085 | 6 | 6 | 6 | 6 | ||
| 12 | 共轨管 | Pipe | 08OVIO311-6063 | 1 | 1 | 1 | 1 | ||
|
序号 No. |
名称 | Part Name |
零件图号 Part No. |
每台数量 Q’ty |
规格标准 Standard Specification |
备注 Remark |
|||
| MC0724G401 | MC0728G401 | MC0731G401 | MC0731G402 | ||||||
| 13 | 六角法兰面螺栓 | Bolt | MQ6-03216-8311 | 2 | 2 | 2 | 2 | Q186-M8X55-10.9-MAN183-B1 | |
| 14 | ECU托架 | ECU support | 082Vll640-6015 | 1 | 1 | 1 | 1 | ||
| 15 | 六角法兰面螺栓 | Bolt | MQ6-03216-8206 | 8 | 8 | 8 | 8 | Q186-M6X30-10.9-MAN183-B1 | |
| 16 | EDC-控制单元 | EDC control unite | 202V25803-7915 | 1 | 1 | 1 | 1 | Q186-M8X55-10.9-MAN183-B1 | |
