序号 No. |
名称 | Part Name |
零件图号 Part No. |
每台数量 Q’ty |
规格标准 Standard Specification |
备注 Remark |
|||
| MC0724G401 | MC0728G401 | MC0731G401 | MC0731G402 | ||||||

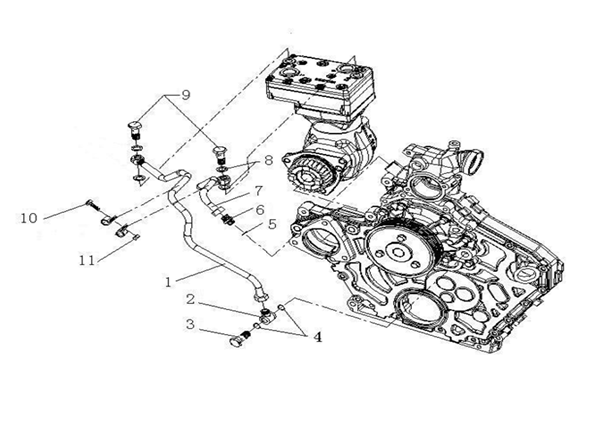

| 1 | 冷却管 | Cooling pipe | 080V06303-5680 | 1 | 1 | 1 | 1 | ||
| 2 | 回转接头 | Transition joint | 082V98110-0186 | 1 | 1 | 1 | 1 | ||
| 3 | 空心螺栓 | Bolt | 082V98150-0176 | 1 | 1 | 1 | 1 | ||
| 4 | O型圈 | O-ring | MQ6-56936-9738 | 2 | 2 | 2 | 2 | 16X1,5N-FPM 1-70 | |
| 5 | 复合密封垫圈 | Washer | MQ6-56631-0107 | 1 | 1 | 1 | 1 | BS-16,7 X24,0 -ST/FPM1-80 | |
| 6 | 直活管节 | Connectors | MQ6-71251-2403 | 1 | 1 | 1 | 1 | L10-A-M16X1,5-ST-MAN 183-B1 | |
| 7 | 冷却管 | Cooling pipe | 080V06303-5681 | 1 | 1 | 1 | 1 | ||
| 8 | 复合密封垫圈 | Washer | MQ6-56631-0106 | 4 | 4 | 4 | 4 | BS-14,7 X22,0 -ST/FPM1-80 | |
| 9 | 空心螺栓 | Bolt | 080V98150-0175 | 2 | 2 | 2 | 2 | ||
| 10 | 六角法兰面螺栓 | Bolt | MQ6-03216-8204 | 1 | 1 | 1 | 1 | Q186-M6X20-10.9-MAN183-B1 | |
| 11 | 六角螺母 | Nut | MQ6-11251-2017 | 1 | 1 | 1 | 1 | M 6 -10-MAN183-B1 | |
| 12 | 弹性钢带卡箍 | Spring clip | MQ6-67420-1232 | 1 | 1 | 1 | 1 | A-32X12 | |
|
序号 No. |
名称 | Part Name |
零件图号 Part No. |
每台数量 Q’ty |
规格标准 Standard Specification |
备注 Remark |
|||
| MC0724G401 | MC0728G401 | MC0731G401 | MC0731G402 | ||||||

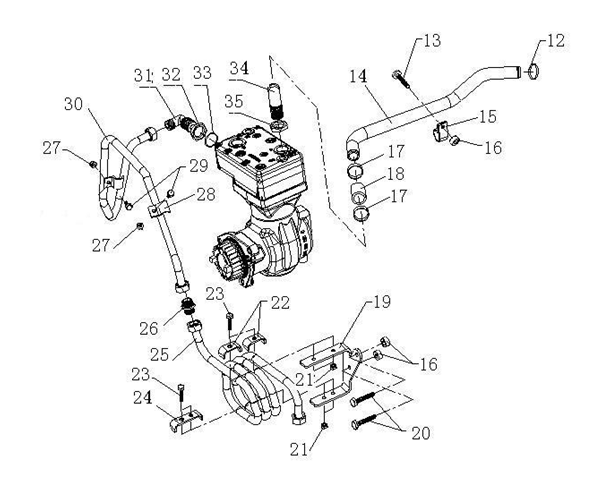

| 13 | 六角法兰面螺栓 | Bolt | MQ6-03216-8306 | 1 | 1 | 1 | 1 | Q186-M8X30-10.9-MAN183-B1 | |
| 14 | 空压机吸气管 | Intake Pipe | 082V54120-5352 | 1 | 1 | 1 | 1 | ||
| 15 | 管夹 | Clip | 080V97401-0390 | 1 | 1 | 1 | 1 | ||
| 16 | 垫圈 | Washer | 080V91701-0356 | 1 | 1 | 1 | 1 | ||
| 17 | 弹性钢带卡箍 | Clip | MQ6-67420-1235 | 2 | 2 | 2 | 2 | A-35X12 | |
| 18 | 软管 | Pipe | MQ4-27199-1260 | 1 | 1 | 1 | 1 | N1 -25 X 60 | |
| 19 | 托架 用于制动线路 | Support | 080V51710-0001 | 1 | 1 | 1 | 1 | ||
| 20 | 六角法兰面螺栓 | Bolt | MQ6-03216-8310 | 2 | 2 | 2 | 2 | Q186-M8X50-10.9-MAN183-B1 | |
| 21 | 六角螺母 | Nut | MQ6-11251-2017 | 4 | 4 | 4 | 4 | M 6 -10-MAN183-B1 | |
| 22 | 夹子 | Clip | MQ6-67066-0211 | 2 | 2 | 2 | 2 | 2X16-8-MAN183-B1 | |
| 23 | 六角法兰面螺栓 | Bolt | MQ6-03216-8207 | 4 | 4 | 4 | 4 | Q186-M6X35-10.9-MAN183-B1 | |
| 24 | 管夹 | Clip | 850W51710-0041 | 1 | 1 | 1 | 1 | 2X16-8-MAN183-B1 | |
|
序号 No. |
名称 | Part Name |
零件图号 Part No. |
每台数量 Q’ty |
规格标准 Standard Specification |
备注 Remark |
|||
| MC0724G401 | MC0728G401 | MC0731G401 | MC0731G402 | ||||||
| 25 | 制动管路总成 第二部分 | Brake pipe 2 | 850W51221-5005 | 1 | 1 | 1 | 1 | ||
| 26 | 直活管节 | Connector | MQ6-71070-2133 | 1 | 1 | 1 | 1 | LL16-A4C | |
| 27 | 制动管路 | Brake pipe | 850W51221-2107 | 1 | 1 | 1 | 1 | ||
| 28 | 夹子 | Clip | MQ6-67150-0106 | 2 | 2 | 2 | 2 | 16-A4C | |
| 29 | 六角法兰面螺栓 | Bolt | MQ6-03216-8203 | 1 | 1 | 1 | 1 | Q186-M6X16-10.9-MAN183-B1 | |
| 30 | 制动管路总成 第一部分 | Brake pipe 1 | 850W51221-5004 | 1 | 1 | 1 | 1 | ||
| 31 | 弯头套管 | Elbow sleeve | MQ6-71759-0001 | 1 | 1 | 1 | 1 | LL16 M26X1,5 OB-A4C | |
| 32 | 六角螺母 | Nut | MQ6-11154-8359 | 1 | 1 | 1 | 1 | M26X1,5-MAN 183-B1 | |
| 33 | O型圈 | O-ring | MQ6-56333-3256 | 2 | 2 | 2 | 2 | 24,2X3 B-FPM 1-70 GRUEN | |
| 34 | 吸气弯管 | Pipe | 080V54120-6026 | 1 | 1 | 1 | 1 | ||
| 35 | 六角头螺母 | Nut | MQ6-79090-4202 | 1 | 1 | 1 | 1 | DIN74 05-M26X1.5-4D-MAN183-B1 | |
