序号 No. |
名称 | Part Name |
零件图号 Part No. |
每台数量 Q’ty |
规格标准 Standard Specification |
备注 Remark |
|||
| MC0724G401 | MC0728G401 | MC0731G401 | MC0731G402 | ||||||

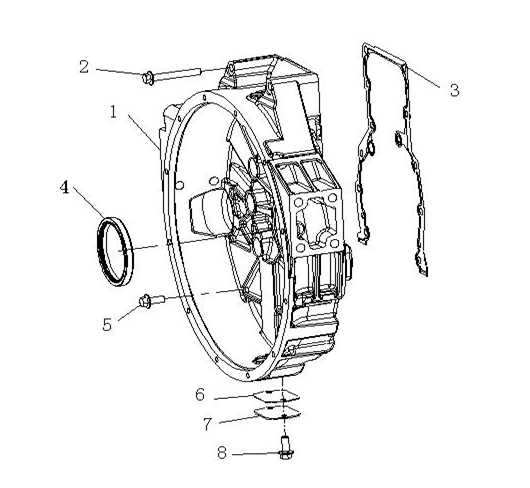

| 1 | 飞轮壳 | Flywheel housing | 082V01401-5197 | 1 | 1 | 1 | 1 | SAE1 | |
| 2 | 六角头螺栓 | Bolt | MQ6-03216-8634 | 2 | 2 | 2 | 2 | M14X105-10.9-MAN183-B1 | |
| 3 | 飞轮壳密封垫 | Gasket | 081V01904-0010 | 1 | 1 | 1 | 1 | ||
| 4 | 后油封 | Gasket | 080V01510-0281 | 1 | 1 | 1 | 1 | ||
| 5 | 六角法兰面螺栓 | Bolt | MQ6-03216-8506 | 9 | 9 | 9 | 9 | Q186-M12X30-10.9-MAN183-B1 | |
| 6 | 垫片 | Gasket | 201V96601-0382 | 1 | 1 | 1 | 1 | ||
| 7 | 观察孔盖 | Hole cover | 201V98112-0119 | 1 | 1 | 1 | 1 | ||
| 8 | 六角法兰面螺栓 | Bolt | MQ6-03216-8303 | 2 | 2 | 2 | 2 | Q186-M8X16-10.9-MAN183-B1 | |
