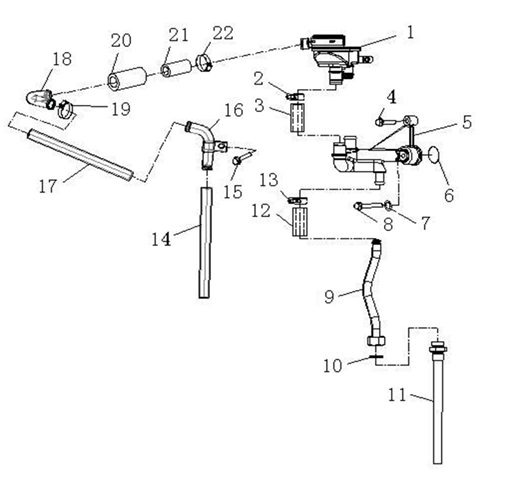

序号 No. |
名称 | Part Name |
零件图号 Part No. |
每台数量 Q’ty |
规格标准 Standard Specification |
备注 Remark |
|||
| MC0724G401 | MC0728G401 | MC0731G401 | MC0731G402 | ||||||
| 1 | 油气分离器(开式) | Oil separator | 082V01804-0011 | 1 | 1 | 1 | 1 | ||
| 2 | 弹性钢带卡箍 | Clip | MQ6-67420-1235 | 4 | 4 | 4 | 4 | A-35X12 | |
| 3 | 软管 | Hose | MQ4-27199-1260 | 1 | 1 | 1 | 1 | N1 -25 X 60 | |
| 4 | 六角法兰面螺栓 | Bolt | MQ6-03216-8307 | 1 | 1 | 1 | 1 | Q186- M8X35-10.9-MAN183-B1 | |
| 5 | 通风道 | Ventilation ducts | 080V01802-0448 | 1 | 1 | 1 | 1 | ||
| 6 | O型圈 | O-ring | MQ6-56332-2167 | 1 | 1 | 1 | 1 | 32X2,5 B-ACM 1-60 | |
| 7 | 复合密封垫圈 | Washer | MQ6-56631-0125 | 1 | 1 | 1 | 1 | BS-8,7 X14,0 -ST/FPM1-80 | |
| 8 | 六角法兰面螺栓 | Bolt | MQ6-03216-8332 | 1 | 1 | 1 | 1 | Q186- M8X85-10.9-MAN183-B1 | |
| 9 | 回油管 | Pipe | 080V05703-5799 | 1 | 1 | 1 | 1 | OELABSCH-KG-JOCH | |
| 10 | 密封垫圈 | Washer | MQ6-56190-0722 | 2 | 2 | 2 | 2 | A24X29-Cu | |
| 11 | 回油管 | Pipe | 080V05702-5948 | 1 | 1 | 1 | 1 | ||
|
序号 No. |
名称 | Part Name |
零件图号 Part No. |
每台数量 Q’ty |
规格标准 Standard Specification |
备注 Remark |
|||
| MC0724G401 | MC0728G401 | MC0731G401 | MC0731G402 | ||||||
| 13 | 弹性钢带卡箍 | Clip | MQ6-67420-1226 | 2 | 2 | 2 | 2 | A-26X12 | |
| 14 | 带纤维夹层的橡胶软管 | Hose | 082V96330-0334 | 1 | 1 | 1 | 1 | ||
| 15 | 六角法兰面螺栓 | Bolt | MQ6-03216-8305 | 1 | 1 | 1 | 1 | Q186-M8X25-10.9-MAN183-B1 | |
| 16 | 连接弯管总成 | Pipe assembly | 082V01802-5600 | 1 | 1 | 1 | 1 | ||
| 17 | 带纤维夹层的橡胶软管 | Hose | 082V96330-0333 | 1 | 1 | 1 | 1 | ||
| 18 | 连接弯管 | Pipe | 082V01802-5670 | 1 | 1 | 1 | 1 | ||
| 19 | 软管卡箍 | Clip | 90003989340 | 3 | 3 | 3 | 3 | ||
| 20 | 隔热软管 | Hose | 080V96330-0366 | 1 | 1 | 1 | 1 | ||
| 21 | 连接软管 | Hose | 082V96330-0246 | 1 | 1 | 1 | 1 | 22-1x | |
| 22 | 弹性钢带卡箍 | Clip | MQ6-67420-1232 | 2 | 2 | 2 | 2 | A-32X12 | |
| 23 | 软管 | Hose | MQ4-27199-1260 | 1 | 1 | 1 | 1 | N1 -25 X 60 | |
