序号 No. |
名称 | Part Name |
零件图号 Part No. |
每台数量 Q’ty |
规格标准 Standard Specification |
备注 Remark |
|||
| MC1136G401 | MC1140G401 | ||||||||

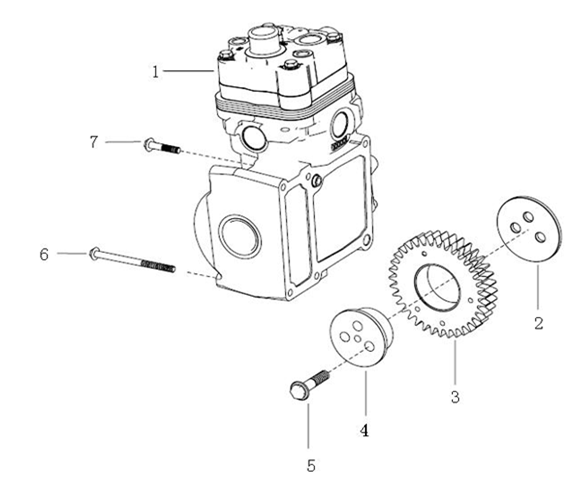

| 1 | 单缸空压机 | sngle cylinder air compressor | 201V54100-7121 | 0 | 0 | ||||
| 2 | 空压机中间齿轮轴止推片 | air compressor intermediate gear shaft thrust sheet | 200V90720-0208 | 1 | 1 | ||||
| 3 | 空压机中间齿轮总成 | air compressor intermediate gear assembly | 200-54210-6042 | 1 | 1 | ||||
| 4 | 空压机中间齿轮轴 | air compressor intermediate gear shaft | 200V54210-0172 | 1 | 1 | ||||
| 5 | 六角法兰面螺栓 | hexagon flange bolts | MQ6-03216-8511 | 3 | 3 | Q186-M12X55-10.9-MAN183-B1 | |||
| 6 | 六角法兰面螺栓 | hexagon flange bolts | MQ6-03216-8318 | 4 | 4 | Q186-M8X110-10.9-MAN183-B1 | |||
| 7 | 六角法兰面螺栓 | hexagon flange bolts | MQ6-03216-8308 | 2 | 2 | Q186-M8X40-10.9-MAN183-B1 | |||
