序号 No. |
名称 | Part Name |
零件图号 Part No. |
每台数量 Q’ty |
规格标准 Standard Specification |
备注 Remark |
|||
| MC1136G401 | MC1140G401 | ||||||||

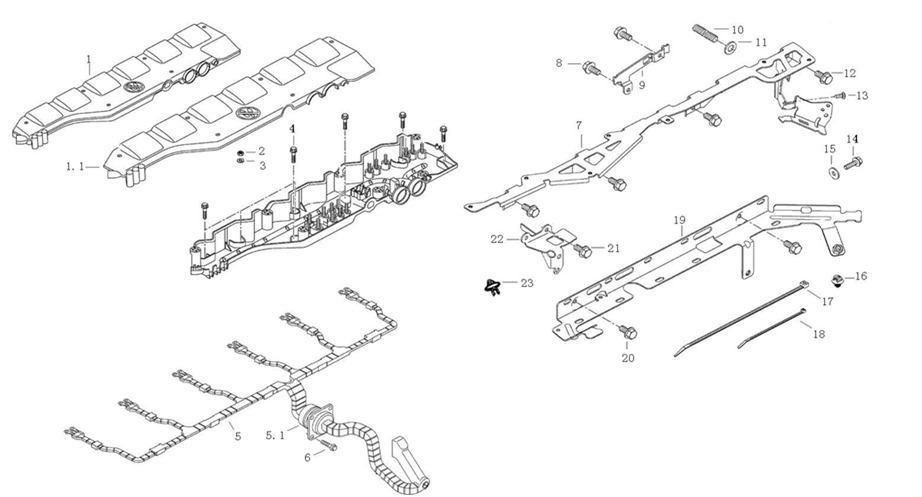

| 1 | 不带VCU发动机线束总成 | engine wiring harness assembly without VCU | 812VV25424-6345 | 1 | 1 | ||||
| 1.1 | 线束管道上部 D20 | harness the upper pipeline D20 | 810W25424-0033 | 1 | 1 | ||||
| 1.2 | 不带VCU发动机线束 | engine wiring harness without VCU | 812W25458-6747 | 1 | 1 | ||||
| 2 | 螺母 | nut | MQ6-11099-0043 | 1 | 1 | GB/T6172.2-M8-A2-70-GB/T 3098.15 | |||
| 3 | 垫圈 | gasket | MQ6-15013-0911 | 1 | 1 | GB/T97.1-8-GB/T5267.1-铜镍镀层G3J | |||
| 4 | 六角法兰面螺栓 | hexagon flange bolts | MQ6-03216-8203 | 7 | 7 | Q186-M6X16-10.9-MAN183-B1 | |||
| 5 | 喷油器线束 | fuel injector wiring harness | 202V25413-6266 | 1 | 1 | ||||
| 5.1 | 喷油器线束密封圈 | injector harness sealing ring | 202V25413-6258 | 1 | 1 | ||||
| 6 | 六角法兰面螺栓 | hexagon flange bolts | MQ6-03216-8203 | 4 | 4 | Q186-M6X16-10.9-MAN183-B1 | |||
| 7 | 线束管道支架 | harness pipe support | 200V25441-5081 | 1 | 1 | ||||
| 8 | 六角法兰面螺栓 | hexagon flange bolts | MQ6-03216-8303 | 2 | 2 | Q186-M8X16-10.9-MAN183-B1 | |||
| 9 | 线束支架 | harness support | 200V25441-6109 | 1 | 1 | ||||
| 10 | 双头螺栓 | bolt stud | 200V91020-0310 | 1 | 1 | M10X47-8.8-P4R | |||
|
序号 No. |
名称 | Part Name |
零件图号 Part No. |
每台数量 Q’ty |
规格标准 Standard Specification |
备注 Remark |
|||
| MC1136G401 | MC1140G401 | ||||||||
| 11 | 锁紧垫圈 | lock washer | MQ6-16169-0047 | 1 | 1 | GB/T956.2-10-GB/T5267.1-A2 | |||
| 12 | 六角法兰面螺栓 | hexagon flange bolts | MQ6-03216-8303 | 4 | 4 | Q186-M8X16-10.9-MAN183-B1 | |||
| 13 | 自攻螺钉 | self tapping screw | MQ6-07159-0014 | 4 | 4 | GB/T 845 T4.8X13-F-H-MAN183-B1 | |||
| 14 | 六角法兰面螺栓 | hexagon flange bolts | MQ6-03216-8204 | 2 | 2 | Q186-M6X20-10.9-MAN183-B1 | |||
| 15 | 大垫圈 | washer | MQ6-15193-0307 | 2 | 2 | GB/T96.1- 6-MAN183-B1 | |||
| 16 | 单路线束扎带 | single wiring harness ribbon | 200V97401-0557 | 2 | 2 | ||||
| 17 | 塑料紧固带 | plastic fastening belt | 190003171392 | 15 | 15 | ||||
| 18 | 塑料紧固带 | plastic fastening belt | 190003171390 | 11 | 11 | B5*180 | |||
| 19 | 线束支架 | harness support | 200V25441-6109 | 1 | 1 | ||||
| 20 | 六角法兰面螺栓 | hexagon flange bolts | MQ6-03216-8303 | 2 | 2 | Q186-M8X16-10.9-MAN183-B1 | |||
| 21 | 六角法兰面螺栓 | hexagon flange bolts | MQ6-03216-8303 | 2 | 2 | Q186-M8X16-10.9-MAN183-B1 | |||
| 22 | 共轨压力传感器线束支架 | common rail pressure sensor harness bracket | 200V27440-5035 | 1 | 1 | ||||
| 23 | 波形管夹 | corrugated pipe clamp | 200V97430-0005 | 1 | 1 | DN4,5 | |||
