序号 No. |
名称 | Part Name |
零件图号 Part No. |
每台数量 Q’ty |
规格标准 Standard Specification |
备注 Remark |
|||
| MC1136G401 | MC1140G401 | ||||||||

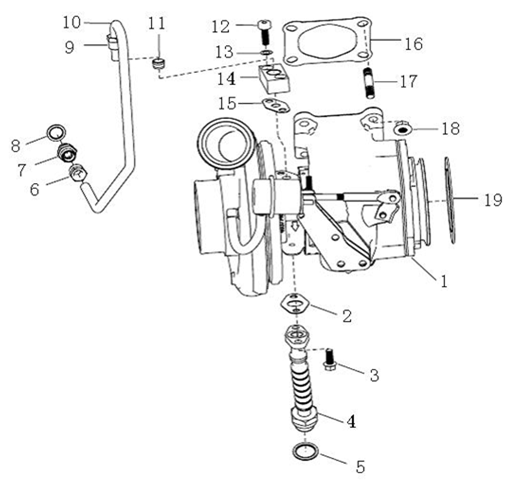

| 1 | 涡轮增压器 | turbocharger | 202V09100-7926 | 1 | 1 | ||||
| 2 | 增压器回油管垫片 | turbocharger oil return pipe gasket | 200V96601-0576 | 1 | 1 | ||||
| 3 | 六角法兰面螺栓 | hexagon flange bolts | MQ6-03216-8304 | 2 | 2 | Q186-M8X20-10.9-MAN183-B1 | |||
| 4 | 增压器回油管 | turbocharger oil return pipe | 201V05703-5395 | 1 | 1 | ||||
| 5 | 复合密封垫圈 | composite sealing gasket | MQ6-56631-0111 | 1 | 1 | BS-24,7 X32,0 -ST/FPM1-80 | |||
| 6 | 联管螺母 | union nut | MQ6-71030-2114 | 1 | 1 | DIN 3870-AL12-FLPST-GB/T 5267.1-电镀锌A4C-M3276-W | |||
| 7 | 卡套式端直通接头 | Sleeve type straight joint | MQ6-71060-2104 | 1 | 1 | L12A-M-ST-A4C | |||
| 8 | 复合密封垫圈 | composite sealing gasket | MQ6-56631-0107 | 1 | 1 | BS-16,7 X24,0 -ST/FPM1-80 | |||
| 9 | 联管螺母 | union nut | 190003559513 | 1 | 1 | ||||
| 10 | 管 | pipe | 201V05702-2913 | 1 | 1 | ||||
| 11 | 卡套 | cutting sleeve | MQ6-71020-0418 | 2 | 2 | BS12-ST-A3C | |||
| 12 | 内六角圆柱头螺钉 | hexagon socket head cap screws | 190003862428 | 2 | 2 | ||||
| 13 | 自锁垫圈 | self-locking washer | VG188250083 | 2 | 2 | ||||
| 14 | 进油管法兰 | oil inlet pipe flange | VG1560110152 | 1 | 1 | ||||
|
序号 No. |
名称 | Part Name |
零件图号 Part No. |
每台数量 Q’ty |
规格标准 Standard Specification |
备注 Remark |
|||
| MC1136G401 | MC1140G401 | ||||||||
| 15 | 进油管垫片 | oil inlet pipe gasket | VG609Ell0050 | 1 | 1 | ||||
| 16 | 增压器密封垫 | turbocharger seal | 201V08901-0182 | 1 | 1 | ||||
| 17 | 双头螺柱 | stud | 200V90210-0017 | 4 | 4 | M10X35 | |||
| 18 | 六角法兰面螺母 | hexagon flange nuts | MQ6-11229-0023 | 4 | 4 |
Q320-M10-21CrMoV5-7(1.7709)+QT -DIN267-13-GB/T5267.1-C3J |
|||
| 19 | 蜗壳出口密封垫 | volute outlet seal | 201V08901-0210 | 1 | 1 | ||||
