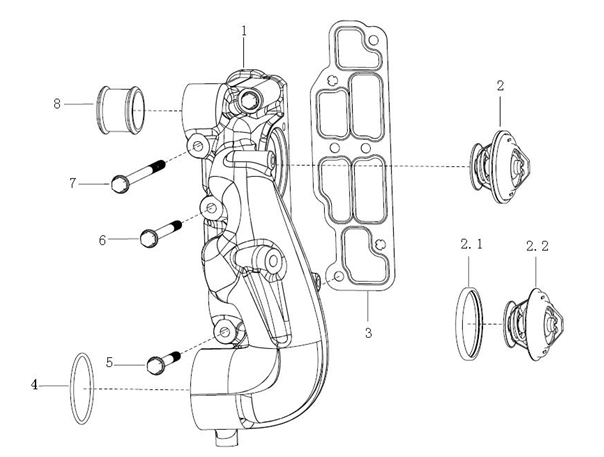

序号 No. |
名称 | Part Name |
零件图号 Part No. |
每台数量 Q’ty |
规格标准 Standard Specification |
备注 Remark |
|||
| MC1136G401 | MC1140G401 | ||||||||
| 1 | 节温器壳 | thermostat housing | 200V06404-0083 | 1 | 1 | ||||
| 2 | 节温器 | thermostat | 201V06402-6005 | 2 | 2 | 83℃~95℃ | |||
| 2.1 | 节温器密封圈 | thermostat sealing ring | 201V06904-0049 | 1 | 1 | ||||
| 2.2 | 节温器芯 | thermostat insert | 201V06402-0111 | 1 | 1 | 83℃~95℃ | |||
| 3 | 节温器壳密封垫 | thermostat housing gasket | 201V06904-01)42 | 1 | 1 | ||||
| 4 | O型圈 | o-ring | MQ6-56939-0079 | 1 | 1 | 57 X 4,5 N -EPDM 9-70 | |||
| 5 | 六角法兰面螺栓 | hexagon flange bolts | MQ6-03216-8313 | 2 | 2 | Q186-M8X65-10.9-MAN183-B1 | |||
| 6 | 六角法兰面螺栓 | hexagon flange bolts | MQ6-03216-8316 | 3 | 3 | Q186-M8X90-10.9-MAN183-B1 | |||
| 7 | 六角法兰面螺栓 | hexagon flange bolts | MQ6-03216-8320 | 1 | 1 | Q186-M8X130-10.9-MAN183-B1 | |||
| 8 | 插接管 | insert tube | 200V98182-0003 | 2 | 2 | 直径40/DN32 用于冷却液 | |||
