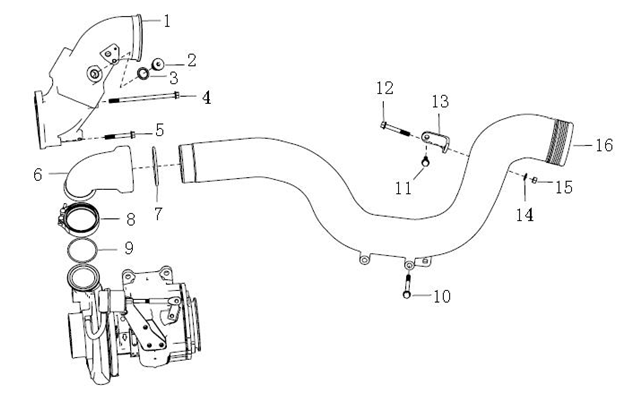

序号 No. |
名称 | Part Name |
零件图号 Part No. |
每台数量 Q’ty |
规格标准 Standard Specification |
备注 Remark |
|||
| MC1136G401 | MC1140G401 | ||||||||
| 1 | 中冷后进气管（T7） | air inlet pipe | 202V09411-0870 | 1 | 1 | ||||
| 2 | 螺塞 | plug | MQ6-08042-0206 | 1 | 1 | M20X1,5-ST-GB/T 5267.1-电镀锌A3C | |||
| 3 | 复合密封垫圈 | composite sealing gasket | MQ6-56631-0121 | 1 | 1 | BS-20,7 X28,0 -ST/FPM1-80 | |||
| 4 | 六角法兰面螺栓 | hexagon flange bolts | 202V03216-8322 | 1 | 1 | M8*152 | |||
| 5 | 六角法兰面螺栓 | hexagon flange bolts | MQ6-03216-8312 | 2 | 2 | Q186-M8X60-10.9-MAN183-B1 | |||
| 6 | 进气弯管 | intake pipe | 201V09411-0664 | 1 | 1 | ||||
| 7 | O型圈 | o-ring | MQ6-56936-3004 | 1 | 1 | 86 X 5 N FPM 1-70 | |||
| 8 | V型卡箍 | V type clamp | 202V97455-0076 | 1 | 1 | Φ77 | |||
| 9 | O型圈 | o-ring | MQ6-56936-2479 | 1 | 1 | 63X2,5 FPM 1-70 | |||
| 10 | 六角法兰面螺栓 | hexagon flange bolts | MQ6-03216-8416 | 2 | 2 | Q186-M10X90-10.9-MAN183-B1 | |||
| 11 | 六角法兰面螺栓 | hexagon flange bolts | MQ6-03216-8305 | 1 | 1 | Q186-M8X25-10.9-MAN183-B1 | |||
| 12 | 六角法兰面螺栓 | hexagon flange bolts | MQ6-03216-8312 | 1 | 1 | Q186-M8X60-10.9-MAN183-B1 | |||
| 13 | 支架 | support | 200V97485-0555 | 1 | 1 | ||||
| 14 | 垫圈 | gasket | MQ6-15013-0411 | 1 | 1 | GB/T97.1-8-200HV-MAN183-B1 | |||
|
序号 No. |
名称 | Part Name |
零件图号 Part No. |
每台数量 Q’ty |
规格标准 Standard Specification |
备注 Remark |
|||
| MC1136G401 | MC1140G401 | ||||||||
| 15 | 螺母 | nut | MQ6-11064-2114 | 1 | 1 | GB/T6170-M8-8级-MAN183-B1 | |||
| 16 | 中冷前进气管（T7） | air inlet pipe | 201V09411-5175 | 1 | 1 | ||||
