序号 No. |
名称 | Part Name |
零件图号 Part No. |
每台数量 Q’ty |
规格标准 Standard Specification |
备注 Remark |
|||
| MC1136G401 | MC1140G401 | ||||||||

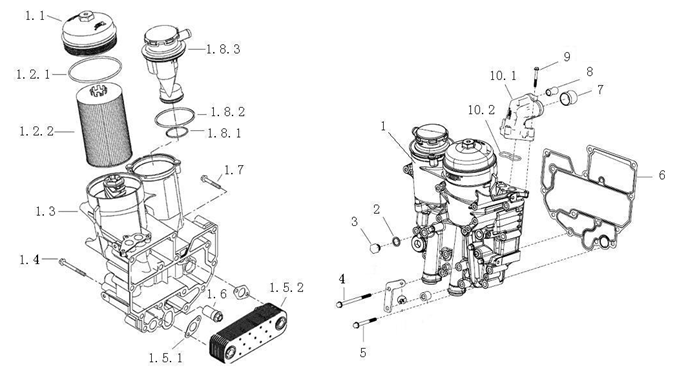

| 1 | 机油模块 | oil module | 201V05000-7040 | 1 | 1 | ||||
| 1.1 | 机油滤清器盖 | oil filter cover | 200V05505-0011 | 1 | 1 | 带密封圈 | |||
| 1.2 | 机油滤清器芯 | oil filter core | 200V05504-0107 | 1 | 1 | ||||
| 1.2.1 | O型密封圈 | o-ring | 200V96501-0558 | 1 | 1 | 用于机滤器盖 | |||
| 1.2.2 | 机油滤清器芯 | oil filter core | 200V05504-0108 | 1 | 1 | ||||
| 1.3 | 机油模块壳体 | oil module shell | 201V05005-3001 | 1 | 1 | ||||
| 1.4 | 六角法兰面螺栓 | hexagon flange bolts | MQ6-03215-8315 | 2 | 2 | Q186-M 8X80-8.8-MAN183-B1 | |||
| 1.5 | 机油冷却器 带密封垫 | oil cooler with gasket | 200V05601-0172 | 1 | 1 | ||||
| 1.5.1 | 密封垫 | gasket | MQ6-56254-2203 | 2 | 2 | 26X48X1,0-M3219-AFOE 2 | |||
| 1.5.2 | 机油冷却器 | oil cooler | 200V05601-0171 | 1 | 1 | ||||
| 1.6 | 限压阀 | pressure limiting valve | 202V05405-0014 | 1 | 1 | ||||
| 1.7 | 六角法兰面螺栓 | hexagon flange bolts | MQ6-03215-8311 | 2 | 2 | Q186-M 8X55-8.8-MAN183-B1 | |||
| 1.8 | 油气分离器 | oil and gas separator | 200V01804-0024 | 1 | 1 | 带密封圈 | |||
| 1.8.1 | O型圈 | o-ring | 200V96501-0645 | 1 | 1 | ||||
|
序号 No. |
名称 | Part Name |
零件图号 Part No. |
每台数量 Q’ty |
规格标准 Standard Specification |
备注 Remark |
|||
| MC1136G401 | MC1140G401 | ||||||||
| 1.8.2 | O型圈 | o-ring | 200V96501-0644 | 1 | 1 | ||||
| 1.8.3 | 油气分离器 | oil and gas separator | 200V01804-0025 | 1 | 1 | ||||
| 2 | 复合密封垫圈 | composite sealing gasket | MQ6-56631-0109 | 1 | 1 | BS-18,7 X26,0 -ST/FPM1-80 | |||
| 3 | 螺塞 | plug | MQ6-08042-0605 | 1 | 1 | M18X1,5-ST-GB/T 5267.1-电镀锌A3C | |||
| 4 | 六角法兰面螺栓 | hexagon flange bolts | MQ6-03216-8420 | 4 | 4 | Q186-M10X130-10.9-MAN183-B1 | |||
| 5 | 六角法兰面螺栓 | hexagon flange bolts | MQ6-03216-8415 | 10 | 10 | Q186-M10X80-10.9-MAN183-B1 | |||
| 6 | 机油模块密封垫 | oil module seal | 202V05901-0145 | 1 | 1 | ||||
| 7 | 插接管 | insert tube | 200V98182-0092 | 1 | 1 | 直径37/DN29 用于机油 | |||
| 8 | 插接管 | insert tube | 200V98182-0091 | 1 | 1 | 直径20/DN14 用于机油 | |||
| 9 | 六角法兰面螺栓 | hexagon flange bolts | MQ6-03216-8310 | 3 | 3 | Q186-M8X50-10.9-MAN183-B1 | |||
| 10 | 角形法兰 | angle flange | 200V05440-0003 | 1 | 1 | 带密封垫 | |||
| 10.1 | 角形法兰 | angle flange | 200V05440-000411 | 1 | 1 | (E050) | |||
| 10.2 | 角形法兰密封垫 | angle flange gasket | 200V05901-0135/1 | 1 | 1 | (E050) | |||
| 11 | 六角法兰面螺栓 | hexagon flange bolts | MQ6-03216-8418 | 1 | 1 | Q186-M10X110-10.9-MAN183-B1 | |||
