序号 No. |
名称 | Part Name |
零件图号 Part No. |
每台数量 Q’ty |
规格标准 Standard Specification |
备注 Remark |
|||
| MC1136G401 | MC1140G401 | ||||||||

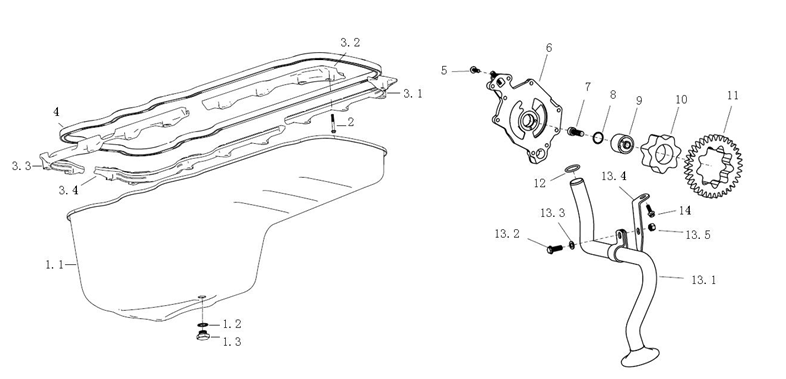

| 1 | 油底壳总成 | oil pan assembly | 201V05500-6370 | 1 | 1 | ||||
| 1.1 | 油底壳组件 | oil pan components | 201V05801-5741 | 1 | 1 | ||||
| 1.2 | 复合密封垫圈 | composite sealing gasket | MQ6-56631-0110 | 1 | 1 | BS-22,7 X30,0 -ST/FPM1-80 | |||
| 1.3 | 螺塞 | plug | MQ6-08042-0207 | 1 | 1 | M22X1,5-ST-GB/T 11376-ZNPHR3F | |||
| 2 | 六角法兰面螺栓 | hexagon flange bolts | MQ6-03216-8310 | 18 | 18 | Q186-M8X50-10.9-MAN183-B1 | |||
| 3 | 油底壳托块组 | oil pan support block group | 200V05840-6008 | 1 | 1 | ||||
| 3.1 | 油底壳托块 | oil pan support bloc | 200V05840-0126 | 1 | 1 | ||||
| 3.2 | 油底壳托块 | oil pan support bloc | 200V05840-0139 | 1 | 1 | ||||
| 3.3 | 油底壳托块 | oil pan support bloc | 200V05840-0128 | 1 | 1 | ||||
| 3.4 | 油底壳托块 | oil pan support bloc | 200V05840-0129 | 1 | 1 | ||||
| 4 | 油底壳密封垫 | oil pan gasket | 202V05904-0212 | 1 | 1 | ||||
| 5 | 六角法兰面螺栓 | hexagon flange bolts | MQ6-03216-8204 | 9 | 9 | Q186-M6X20-10.9-MAN183-B1 | |||
| 6 | 机油泵盖 | oil pump cover | 200V05103-5036 | 1 | 1 | ||||
| 7 | 内六角圆柱头螺钉 | hexagon socket head cap screws | MQ6-02191-0511 | 1 | 1 | GB/T70.1-M10×35-10.9--MAN183-PHR | |||
|
序号 No. |
名称 | Part Name |
零件图号 Part No. |
每台数量 Q’ty |
规格标准 Standard Specification |
备注 Remark |
|||
| MC1136G401 | MC1140G401 | ||||||||
| 8 | O型圈 | o-ring | MQ6-56936-1150 | 1 | 1 | 2 2X 2 N-FPM 1-70 | |||
| 9 | 机油泵内转子轴 | rotor shaft oil pump | 200V05105-5000 | 1 | 1 | ||||
| 10 | 机油泵内转子 | oil pump rotor | 200V05104-0234 | 1 | 1 | ||||
| 11 | 机油泵外转子 | outer rotor oil pump | 200V05104-0251 | 1 | 1 | ||||
| 12 | O型圈 | o-ring | MQ6-56333-3363 | 1 | 1 | 28X3 B-FKM 1-80 | |||
| 13 | 吸油管总成 | oil suction pipe assembly | 200V05701-6055 | 1 | 1 | ||||
| 13.1 | 吸油管组件 | oil suction pipe | 200V057D3-5364 | 1 | 1 | ||||
| 13.2 | 六角法兰面螺栓 | hexagon flange bolts | MQ6-03216-8305 | 2 | 2 | Q186-M8X25-10.9-MAN183-B1 | |||
| 13.3 | 垫圈 D9/19/4 | gasket D9/19/4 | 200V90710-0080 | 2 | 2 | ||||
| 13.4 | 吸油管支架 | oil suction pipe bracket | 200V05740-0174 | 2 | 2 | ||||
| 13.5 | 六角锁紧螺母 | hexagon lock nut | MQ6-11240-0404 | 2 | 2 | BM8-8-MAN183-B1 | |||
| 14 | 六角法兰面螺栓 | hexagon flange bolts | MQ6-03216-8303 | 2 | 2 | Q186-M8X16-10.9-MAN183-B1 | |||
