序号 No. |
名称 | Part Name |
零件图号 Part No. |
每台数量 Q’ty |
规格标准 Standard Specification |
备注 Remark |
|||
| MC1136G401 | MC1140G401 | ||||||||

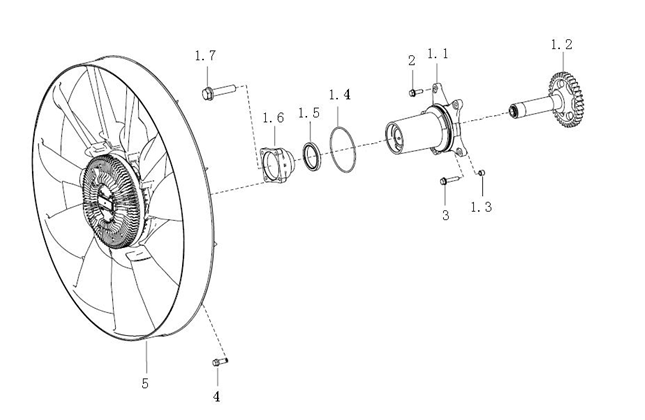

| 1 | 风扇托架总成 | fan bracket assembly | 201-06600-6117 | 1 | 1 | ||||
| 1.1 | 风扇托架壳体 | fan bracket shell | 201V06609-5006 | 1 | 1 | ||||
| 1.2 | 风扇托架轴组件 | fan bracket shaft assembly | 200-06603-5004 | 1 | 1 | ||||
| 1.3 | 定位轴套 | positioning shaft sleeve | 200V91701-0904 | 2 | 2 | ||||
| 1.4 | O型圈 | o-ring | MQ6-56939-0068 | 1 | 1 | 108X3 N -FPM 1-70-BES | |||
| 1.5 | 油封 | oil seal | 201V96501-0573 | 1 | 1 | ||||
| 1.6 | 风扇轮毂 | fan hub | 200V06604-0084 | 1 | 1 | ||||
| 1.7 | 六角头螺栓和垫圈组合件 |
hexagon head bolt and gasket assemblies |
200V90001-5004 | 1 | 1 | ||||
| 2 | 六角法兰面螺栓 | hexagon flange bolts | MQ6-03216-8305 | 4 | 4 | Q186-M8X25-10.9-MAN183-B1 | |||
| 3 | 六角法兰面螺栓 | hexagon flange bolts | MQ6-03216-8308 | 1 | 1 | Q186-M8X40-10.9-MAN183-B1 | |||
| 4 | 六角头带肩螺栓 | hexagon head shoulder bolt | MQ6-02202-4203 | 4 | 4 | M10X25-MAN183-B1 | |||
| 5 | 硅油风扇 | silicone oil fan | 202V06600-7050 | 1 | 1 | ||||
