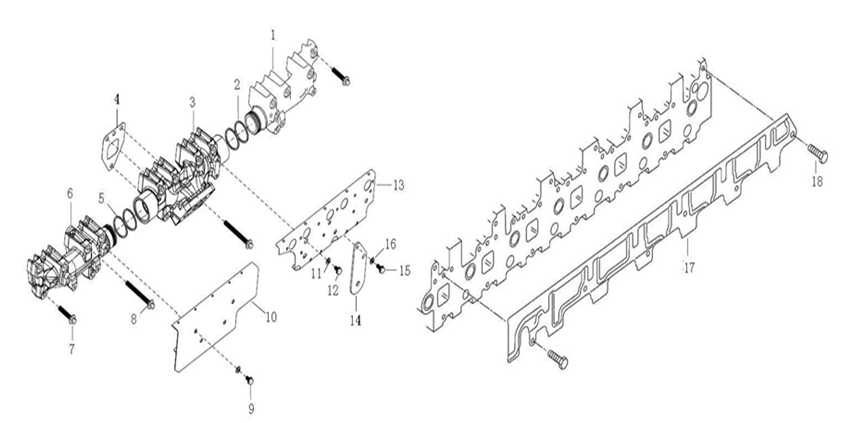

序号 No. |
名称 | Part Name |
零件图号 Part No. |
每台数量 Q’ty |
规格标准 Standard Specification |
备注 Remark |
|||
| MC1136G401 | MC1140G401 | ||||||||
| 1 | 前排气歧管 | front exhaust manifold | 200V08101-6315 | 1 | 1 | ||||
| 2 | 排气管密封环 | exhaust pipe sealing ring | 200V98701-0120 | 2 | 2 | ||||
| 3 | 中排气歧管 | middle exhaust manifold | 200V08102-0234 | 1 | 1 | ||||
| 4 | 排气管垫片 | exhaust pipe gasket | 201V08901-0284 | 6 | 6 | ||||
| 5 | 排气管密封环 | exhaust pipe sealing ring | 200V98701-0120 | 2 | 2 | ||||
| 6 | 后排气歧管 | behind exhaust manifold | 200V08101-6317 | 1 | 1 | ||||
| 7 | 耐热螺栓 | heat resisting bolt | 200V90490-0051 | 4 | 4 | M10X50 | |||
| 8 | 耐热螺栓 | Heat resisting bolt | 200V90490-0032 | 14 | 14 | M10X95 | |||
| 9 | 六角头螺栓 | hexagon head bolts | MQ6-01324-5310 | 2 | 2 | GB/T 5783-M8×12-21CrMoV5-7（17709）+QT-DIN267-13-GB/T5267.1-C3J | |||
| 10 | 隔热板4-6缸 | thermal baffle | 201V08120-5286 | 1 | 1 | ||||
| 11 | 垫圈 | gasket | MQ6-15013-0411 | 5 | 5 | GB/T97.1-8-200HV-MAN183-B1 | |||
| 12 | 六角头螺栓 | hexagon head bolts | MQ6-01324-5310 | 5 | 5 | GB/T 5783-M8×12-21CrMoV5-7（17709）+QT-DIN267-13-GB/T5267.1-C3J | |||
|
序号 No. |
名称 | Part Name |
零件图号 Part No. |
每台数量 Q’ty |
规格标准 Standard Specification |
备注 Remark |
|||
| MC1136G401 | MC1140G401 | ||||||||
| 13 | 隔热板1-3缸 | thermal baffle | 201V08120-5276 | 1 | 1 | ||||
| 14 | 空滤支架板 | air filter bracket plate | VG1092110148 | 1 | 1 | ||||
| 15 | 六角法兰面螺栓 | hexagon flange bolts | MQ6-01324-5311 | 2 | 2 | GB/T 5789-M8×16-21CrMoV5-7（17709）+QT-DIN267-13-GB/T5267.1-C3J | |||
| 16 | 垫圈 | gasket | MQ6-15013-0411 | 2 | 2 | GB/T97.1-8-200HV-MAN183-B1 | |||
| 17 | 隔热板-缸盖 | thermal baffle | 201V08120-0403 | 1 | 1 | ||||
| 18 | 六角法兰面螺栓 | hexagon flange bolts | MQ6-D3215-8403 | 6 | 6 | Q186-M10X16-8.8-MAN183-B1 | |||
