序号 No. |
名称 | Part Name |
零件图号 Part No. |
每台数量 Q’ty |
规格标准 Standard Specification |
备注 Remark |
|||
| MC1136G401 | MC1140G401 | ||||||||

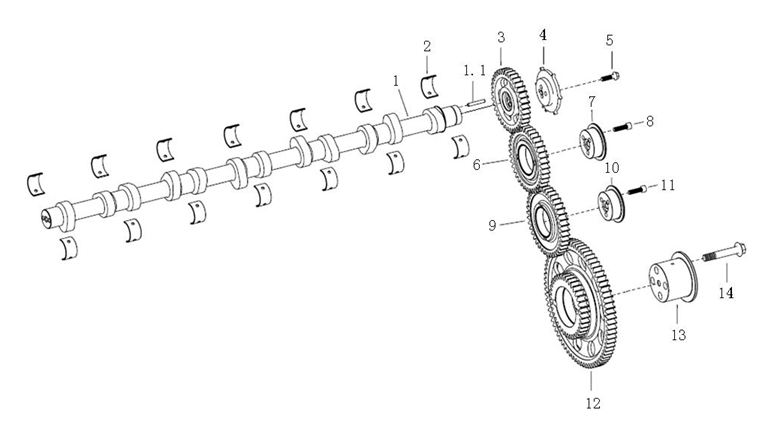

| 1 | 凸轮轴总成 | cam shaft | 200-04400-6050 | 1 | 1 | ||||
| 1.1 | 圆柱销 | cylindrical pin | MQ6-22022-0912 | 1 | 1 | GB/T 119.1 6M6X20-材料45-GB/T 3078 | |||
| 2 | 凸轮轴轴瓦 | camshaft bearing | 200V04410-0177 | 14 | 14 | ||||
| 3 | 凸轮轴齿轮 | camshaft gear | 200-04501-0191 | 1 | 1 | ||||
| 4 | 凸轮轴脉冲盘 | pulse disc cam shaft | 200V04501-0190 | 1 | 1 | ||||
| 5 | 六角法兰面螺栓 | hexagon flange bolts | MQ6-03216-8306 | 3 | 3 | Q186-M8X30-10.9-MAN183-B1 | |||
| 6 | 气缸盖中间齿轮总成 | middle gear of cylinder cover | 200-04505-5094 | 1 | 1 | ||||
| 7 | 小中间齿轮轴 | small middle gear shaft | 200V04506-0077 | 1 | 1 | ||||
| 8 | 内六角圆柱头螺钉 | hexagon socket head cap screws | MQ6-02191-0410 | 3 | 3 | GB/T70.1-M8×30-10.9--MAN183-PHR | |||
| 9 | 曲轴箱中间齿轮总成 | crankcase intermediate gear | 200-04505-5093 | 1 | 1 | ||||
| 10 | 小中间齿轮轴 | small middle gear shaft | 200V04506-0077 | 1 | 1 | ||||
| 11 | 内六角圆柱头螺钉 | hexagon socket head cap screws | MQ6-02191-0410 | 3 | 3 | GB/T70.1-M8×30-10.9--MAN183-PHR | |||
| 12 | 中间齿轮总成 | middle gear | 200-04505-5133 | 1 | 1 | ||||
| 13 | 大中间齿轮轴 | big middle gear shaft | 200V04506-0078 | 1 | 1 | ||||
| 14 | 六角法兰面螺栓 | hexagon flange bolts | MQ6-03216-8615 | 4 | 4 | Q186-M14X80-10.9-MAN183-B1 | |||
