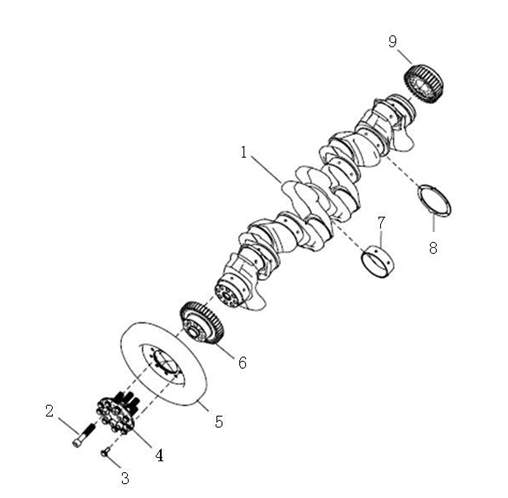

序号 No. |
名称 | Part Name |
零件图号 Part No. |
每台数量 Q’ty |
规格标准 Standard Specification |
备注 Remark |
|||
| MC1136G401 | MC1140G401 | ||||||||
| 1 | 曲轴 | crankshaft | 201-02101-0671 | 1 | 1 | ||||
| 2 | 内六角圆柱头螺钉 | hexagon socket head cap screws | MQ6-02099-0418 | 8 | 8 | GB/T70.1-细牙-M16 X1,5 X85-10.9-MAN183-B1 | |||
| 3 | 六角法兰面螺栓 | hexagon flange bolts | MQ6-03215-8405 | 9 | 9 | Q186-M10X25-8.8-MAN183-B1 | |||
| 4 | 减振器轮毂 | vibration damper hub | 200V02602-0109 | 1 | 1 | ||||
| 5 | 减振器 | absorber | 20lV02201-0171 | 1 | 1 | ||||
| 6 | 曲轴前齿轮 | front gear | 200-02115-0278 | 1 | 1 | ||||
| 7 | 主轴瓦 | main bearing | 201V01113-6082 | 7 | 7 | ||||
| 7.1 | 主轴瓦上瓦 | main bearing | 201V01113-0113 | 1 | 1 | ||||
| 7.2 | 主轴瓦下瓦 | main bearing | 200V01113-0115 | 1 | 1 | ||||
| 8 | 止推片付 | thrust piece pay | 201V01114-5501 | 2 | 2 | ||||
| 8.1 | 止推片下片 | thrust piece pay | 200V01114-0230 | 1 | 1 | ||||
| 8.2 | 止推片上片 | thrust piece pay | 200V01114-0231 | 1 | 1 | ||||
| 9 | 曲轴后齿轮(用于售后) | behind gear(for customer service) | 200-02115-6094 | 1 | 1 | ||||
| 10 | 曲轴后齿轮 | behind gear | 200-02115-0256 | 1 | 1 | ||||
|
序号 No. |
名称 | Part Name |
零件图号 Part No. |
每台数量 Q’ty |
规格标准 Standard Specification |
备注 Remark |
|||
| MC1136G401 | MC1140G401 | ||||||||
| 11 | 平面密封 | plane seal | MQ4-10160-9202 | 1 | 1 | LOCTITE574 TB250ML | |||
| 12 | 销 | pin | MQ6-22220-1222 | 1 | 1 | GB/T 879.4-8X60 | |||
