序号 No. |
名称 | Part Name |
零件图号 Part No. |
每台数量 Q’ty |
规格标准 Standard Specification |
备注 Remark |
|||
| MC1136G401 | MC1140G401 | ||||||||

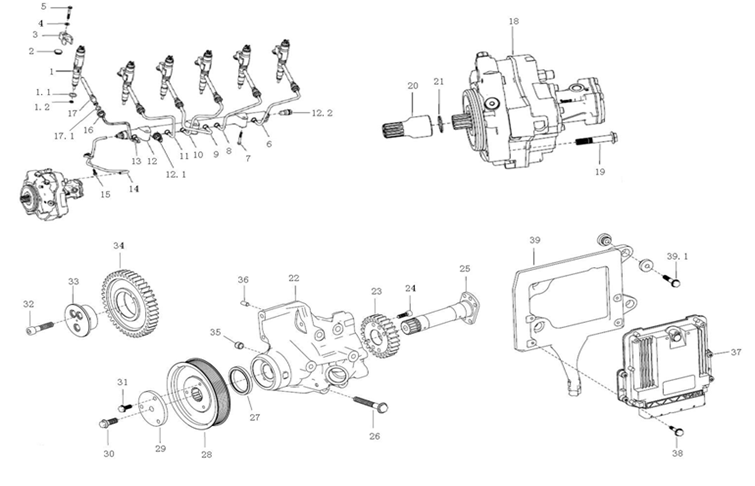

| 1 | 喷油器 | fuel injector | 200V10100-6126 | 6 | 6 | ||||
| 1.1 | O型圈 | o-ring | 200V96501-0502 | 6 | 6 | 20,9X3 用于CR-喷油器 | |||
| 1.2 | 喷油器密封垫圈 | injector sealing washer | 200V98701-0139 | 6 | 6 | CUSN8 | |||
| 2 | 止推块 | thrust block | 200V90720-0214 | 6 | 6 | ||||
| 3 | 喷油器压板 | injector platen | 200V10104-0065 | 6 | 6 | ||||
| 4 | 球面垫圈 | spherical washer | MQ6-15140-2102 | 6 | 6 | C 8,4-GB/T 11376-ZNPHR3F | |||
| 5 | 六角法兰面螺栓 | hexagon flange bolts | MQ6-03216-8310 | 6 | 6 | Q186-M8X50-10.9-MAN183-B1 | |||
| 6 | 高压油管 | high-pressure oil tube | 201V10304-0323 | 1 | 1 | 8*3.5 6缸 | |||
| 7 | 六角法兰面螺栓 | hexagon flange bolts | MQ6-03216-8310 | 3 | 3 | Q186-M8X50-10.9-MAN183-B1 | |||
| 8 | 高压油管 | high-pressure oil tube | 201V10304-0322 | 1 | 1 | 8*3.5 5缸 | |||
| 9 | 高压油管 | high-pressure oil tube | 201V10304-0321 | 1 | 1 | 8*3.5 4缸 | |||
| 10 | 高压油管 | high-pressure oil tube | 201V10304-0320 | 1 | 1 | 8*3.5 3缸 | |||
| 11 | 高压油管 | high-pressure oil tube | 201V10304-0319 | 1 | 1 | 8*3.5 2缸 | |||
| 12 | 轨带限压阀及集成节流阀 | pressure limiting valve and throttle valve | 200V10311-6082 | 1 | 1 | ||||
|
序号 No. |
名称 | Part Name |
零件图号 Part No. |
每台数量 Q’ty |
规格标准 Standard Specification |
备注 Remark |
|||
| MC1136G401 | MC1140G401 | ||||||||
| 12.1 | 轨压传感器 | rail pressure sensor | 200V27421-0229 | 1 | 1 | ||||
| 12.2 | 限压阀 | pressure limiting valve | 200V10304-0291 | 1 | 1 | ||||
| 13 | 高压油管 | high-pressure oil tube | 201V10304-0318 | 1 | 1 | 8*3.5 1缸 | |||
| 14 | 高压油管 泵-轨 | high-pressure oil tube | 201V10301-6189 | 1 | 1 | ||||
| 15 | 六角法兰面螺栓 | hexagon flange bolts | MQ6-03216-8303 | 1 | 1 | Q186-M8X16-10.9-MAN183-B1 | |||
| 16 | 压紧螺母 | compression nut | 200-10303-0999 | 6 | 6 | ||||
| 17 | 喷油器进油接管 | oil inlet nozzle | 200-10301-6161 | 6 | 6 | ||||
| 17.1 | O型圈 | o-ring | 200V96501-0532 | 1 | 1 | 13,5X3 用于高压管接头 | |||
| 18 | 高压油泵 | high pressure oil pump | 200Vlll03-7792 | 1 | 1 | CP3.4+ | |||
| 19 | 六角法兰面螺栓 | hexagon flange bolts | MQ6-03216-8411 | 3 | 3 | Q186-M10X55-10.9-MAN183-B1 | |||
| 20 | 传动轴套 | drive shaft sleeve | 200Vll310-0007 | 1 | 1 | ||||
| 21 | 孔用弹性挡圈 | circlip | MQ6-29029-0199 | 1 | 1 | Q430-21X1-MAN183-B1 | |||
| 22 | 高压油泵驱动壳体 | high pressure oil pump drive housing | 200-38507-5020 | 1 | 1 | ||||
| 23 | 高压油泵驱动齿轮 | high pressure oil pump drive gear | 200-11301-0258 | 1 | 1 | ||||
|
序号 No. |
名称 | Part Name |
零件图号 Part No. |
每台数量 Q’ty |
规格标准 Standard Specification |
备注 Remark |
|||
| MC1136G401 | MC1140G401 | ||||||||
| 24 | 内六角圆柱头螺钉 | hexagon socket head cap screws | MQ6-02191-0409 | 6 | 6 | GB/T70.1-M8×25-10.9--MAN183-PHR | |||
| 25 | 传动轴 | drive axle | 200V38516-5006 | 1 | 1 | ||||
| 26 | 六角法兰面螺栓 | hexagon flange bolts | MQ6-03216-8516 | 4 | 4 | Q186-M12X90-10.9-MAN183-B1 | |||
| 27 | 油封 | oil seal | 201V96501-0573 | 1 | 1 | ||||
| 28 | 皮带轮 | belt pulley | 200V95820-0090 | 1 | 1 | ||||
| 29 | 传动轴垫片 | drive axle gasket | 200V90710-0450 | 1 | 1 | ||||
| 30 | 六角法兰面螺栓 | hexagon flange bolts | MQ6-03216-8506 | 1 | 1 | Q186-M12X30-10.9-MAN183-B1 | |||
| 31 | 六角法兰面螺栓 | hexagon flange bolts | MQ6-03216-8304 | 3 | 3 | Q186-M8X20-10.9-MAN183-B1 | |||
| 32 | 内六角圆柱头螺钉 | hexagon socket head cap screws | MQ6-02191-0614 | 3 | 3 | GB/T70.1-M12×50-10.9--MAN183-PHR | |||
| 33 | 前端中间齿轮轴 | middle gear axle | 200Vll302-0053 | 1 | 1 | ||||
| 34 | 前端中间齿轮 | middle gear | 200-11306-5007 | 1 | 1 | ||||
| 35 | 定位轴套 | positioning shaft sleeve | 200V91701-0894 | 1 | 1 | ||||
| 36 | 圆柱销 | cylindrical pin | MQ6-22022-3061 | 1 | 1 | GB/T 119.1 8H8X18-材料45-GB/T 3078-GB/T 11376-ZNPHR3F | |||
|
序号 No. |
名称 | Part Name |
零件图号 Part No. |
每台数量 Q’ty |
规格标准 Standard Specification |
备注 Remark |
|||
| MC1136G401 | MC1140G401 | ||||||||
| 37 | EDC-控制单元 | control unit | 202V258D3-7915 | 1 | 1 | ||||
| 38 | 六角法兰面螺栓 | hexagon flange bolts | MQ6-03216-8206 | 4 | 4 | Q186-M6X30-10.9-MAN183-B1 | |||
| 39 | ECU支架总成 | ECU bracket assembly | 202Vll640-6014 | 1 | 1 | ||||
| 39.1 | 六角法兰面螺栓 | hexagon flange bolts | MQ6-02829-0025 | 4 | 4 | ||||
