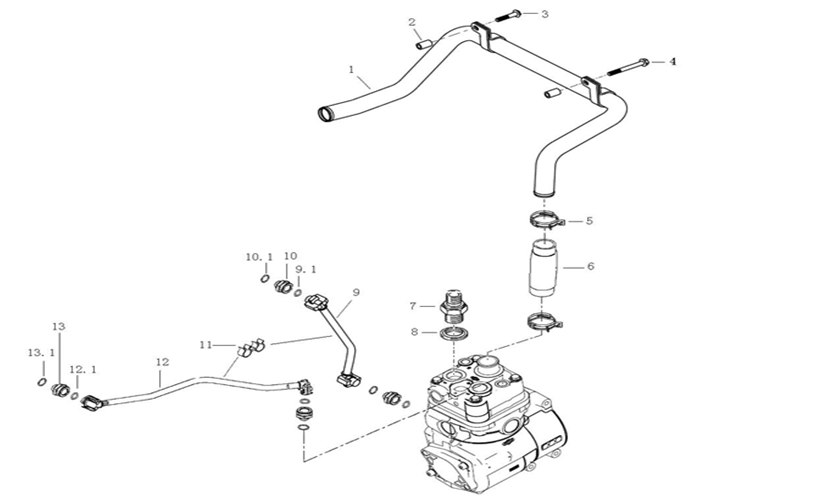

序号 No. |
名称 | Part Name |
零件图号 Part No. |
每台数量 Q’ty |
规格标准 Standard Specification |
备注 Remark |
|||
| MC1136G401 | MC1140G401 | ||||||||
| 1 | 空压机进气管 | air compressor air inlet pipe | 202V54120-5341 | 1 | 1 | ||||
| 2 | 固定块 | fixed block | VG1043130004 | 2 | 2 | ||||
| 3 | 六角法兰面螺栓 | hexagon flange bolts | MQ6-03216-8308 | 1 | 1 | Q186-M8X40-10.9-MAN183-B1 | |||
| 4 | 六角法兰面螺栓 | hexagon flange bolts | MQ6-03216-8314 | 1 | 1 | Q186-M8X70-10.9-MAN183-B1 | |||
| 5 | 弹性钢带卡箍 | spring band clamp | MQ6-67420-1244 | 3 | 3 | A-44X12 | |||
| 6 | 成型软管 | molded hose | 202V96305-0046 | 1 | 1 | ||||
| 7 | 卡套式直通接头 | through joint | MQ6-71251-2705 | 1 | 1 | LL16-A-M26X1,5-ST-A4C | |||
| 8 | 复合密封垫圈 | composite sealing gasket | MQ6-56631-0112 | 1 | 1 | BS-26,7 X34,9 -ST/FPM1-80 | |||
| 9 | 空压机冷却进水管 | air compressor cooling water inlet pipe | 200V06303-5838 | 1 | 1 | ||||
| 9.1 | 环形密封圈 | O-ring seal | 200V96501-0568 | 1 | 1 | 11X2,5 FPM1-60 MAN 308 | |||
| 10 | 旋入式直通接头 | through joint | 200V98181-6018 | 2 | 2 | NG12 M16X1,5 | |||
| 10.1 | O型圈 | o-ring | 200V96501-0571 | 1 | 1 | 15X2 FPM1-70-绿色 MAN 308 | |||
| 11 | 双路管夹 | dual pipe clamp | 200V97401-0552 | 1 | 1 | ||||
| 12 | 空压机冷却回水管 | air compressor cooling water return pipe | 200V06303-5460 | 1 | 1 | ||||
|
序号 No. |
名称 | Part Name |
零件图号 Part No. |
每台数量 Q’ty |
规格标准 Standard Specification |
备注 Remark |
|||
| MC1136G401 | MC1140G401 | ||||||||
| 12.1 | 环形密封圈 | o-ring seal | 200V96501-0568 | 1 | 1 | 11X2,5 FPM1-60 MAN 308 | |||
| 13 | 旋入式直通接头 | through joint | 200V98181-6018 | 2 | 2 | NG12 M16X1,5 | |||
| 13.1 | O型圈 | o-ring | 200V96501-0571 | 1 | 1 | 15X2 FPM1-70-绿色 MAN 308 | |||
