序号 No. |
名称 | Part Name |
零件图号 Part No. |
每台数量 Q’ty |
规格标准 Standard Specification |
备注 Remark |
|||
| MC1136G401 | MC1140G401 | ||||||||

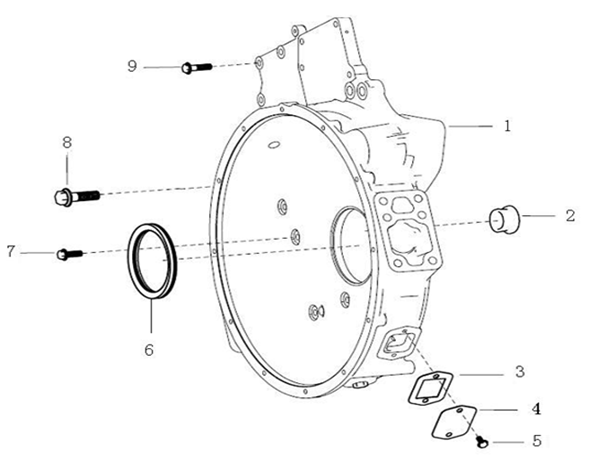

| 1 | 铸铁飞轮壳 | cast iron flywheel shell | 201-01401-0327 | 1 | 1 | ||||
| 2 | 堵盖 | plug cover | 200V96002-0004 | 1 | 1 | ||||
| 3 | 垫片 | gasket | 201V96601-0382 | 1 | 1 | ||||
| 4 | 观察孔盖 | sight cap | 201V98112-0119 | 1 | 1 | ||||
| 5 | 六角法兰面螺栓 | hexagon flange bolts | MQ6-03216-8303 | 2 | 2 | Q186-M8X16-10.9-MAN183-B1 | |||
| 6 | 曲轴后油封 | crankshaft rear oil seal | 201V01510-0283 | 1 | 1 | ||||
| 7 | 六角法兰面螺栓 | hexagon flange bolts | MQ6-03216-8406 | 9 | 9 | Q186-M10X30-10.9-MAN183-B1 | |||
| 8 | 六角法兰面螺栓 | hexagon flange bolts | MQ6-03216-8701 | 4 | 4 | Q186-M16X1.5X55-10.9-MAN183-B1 | |||
| 9 | 六角法兰面螺栓 | hexagon flange bolts | MQ6-03216-8408 | 4 | 4 | Q186-M10X40-10.9-MAN183-B1 | |||
| 10 | 密封胶 | sealant | MQ4-10394-9272 | 1 | 1 | N703-A2 DK300ML LOCTITE5900 | |||
