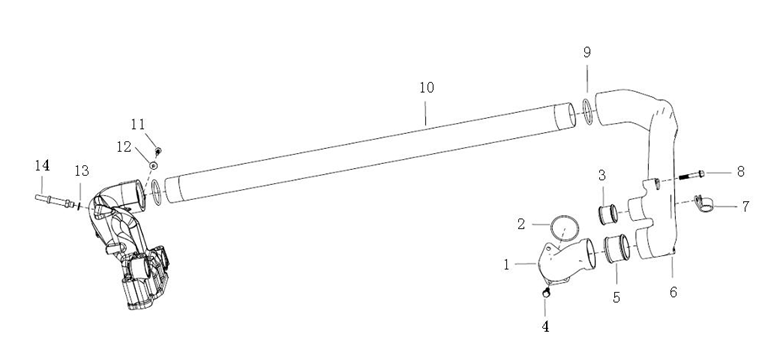

序号 No. |
名称 | Part Name |
零件图号 Part No. |
每台数量 Q’ty |
规格标准 Standard Specification |
备注 Remark |
|||
| MC1136G401 | MC1140G401 | ||||||||
| 1 | 冷却液弯管 | coolant pipe | 200V06302-0657 | 1 | 1 | ||||
| 2 | O型圈 | o-ring | MQ6-56936-2423 | 1 | 1 | 60X3 N-FPM 1-70 | |||
| 3 | 插接管 | insert tube | 200V98182-0050 | 1 | 1 | 直径44/DN35 用于冷却液 | |||
| 4 | 六角法兰面螺栓 | hexagon flange bolts | MQ6-03216-8305 | 3 | 3 | Q186-M8X25-10.9-MAN183-B1 | |||
| 5 | 插接管 | insert tube | 200V98182-0026 | 1 | 1 | 直径62/DN51 用于冷却液 | |||
| 6 | 冷却液弯管 | coolant pipe | 201V06302-0759 | 1 | 1 | ||||
| 7 | 管夹 | pipe clamp | 810W97401-0682 | 1 | 1 | ||||
| 8 | 六角法兰面螺栓 | hexagon flange bolts | MQ6-03216-8310 | 3 | 3 | Q186-M8X50-10.9-MAN183-B1 | |||
| 9 | O型圈 | o-ring | MQ6-56939-0079 | 1 | 1 | 57 X 4,5 N -EPDM 9-70 | |||
| 10 | 水管 | water pipe | 200-98182-0089 | 1 | 1 | ||||
| 11 | 六角法兰面螺栓 | hexagon flange bolts | MQ6-03216-8204 | 1 | 1 | Q186-M6X20-10.9-MAN183-B1 | |||
| 12 | 大垫圈 | gasket | MQ6-15193-0307 | 1 | 1 | GB/T96.1- 6-MAN183-B1 | |||
| 13 | 复合密封垫圈 | composite sealing gasket | MQ6-56631-0105 | 1 | 1 | BS-12,7 X18,0 -ST/FPM1-80 | |||
| 14 | 软管接头 | gladhand | 200V98131-0223 | 1 | 1 | ||||
| 15 | 节温器壳放气管堵盖 | thermostat housing cover vent pipe | 202V06330-2043 | 1 | 1 | ||||
