序号 No. |
名称 | Part Name |
零件图号 Part No. |
每台数量 Q’ty |
规格标准 Standard Specification |
备注 Remark |
|||
| MC1136G401 | MC1140G401 | ||||||||

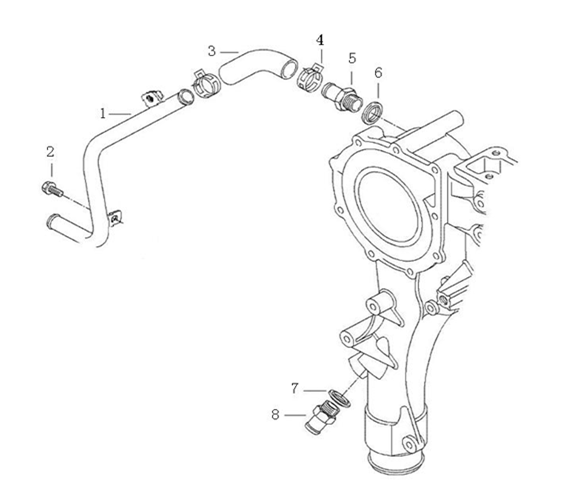

| 1 | 暖风进水管 | warm air inlet pipe | 200V06303-5534 | 1 | 1 | ||||
| 2 | 六角法兰面螺栓 | hexagon flange bolts | MQ6-03216-8304 | 1 | 1 | Q186-M8X20-10.9-MAN183-B1 | |||
| 3 | 成型软管 | molded hose | 810W96305-0200 | 1 | 1 | ||||
| 4 | 弹性钢带卡箍 | spring band clamp | MQ6-67420-1226 | 2 | 2 | A-26X12 | |||
| 5 | 软管接头 | gladhand | 200V98131-0049 | 1 | 1 | M22X1,5 DN18 | |||
| 6 | 复合密封垫圈 | composite sealing gasket | MQ6-56631-0110 | 1 | 1 | BS-22,7 X30,0 -ST/FPM1-80 | |||
| 7 | 复合密封垫圈 | composite sealing gasket | MQ6-56631-0110 | 2 | 2 | BS-22,7 X30,0 -ST/FPM1-80 | |||
| 8 | 环形接头 | ring joint | 202V98131-0001 | 1 | 1 | ||||
| 9 | 空心螺栓 | hollow bolt | 202Vg8131-0002 | 1 | 1 | ||||
