序号 No. |
名称 | Part Name |
零件图号 Part No. |
每台数量 Q’ty |
规格标准 Standard Specification |
备注 Remark |
|||
| MC1136G401 | MC1140G401 | ||||||||

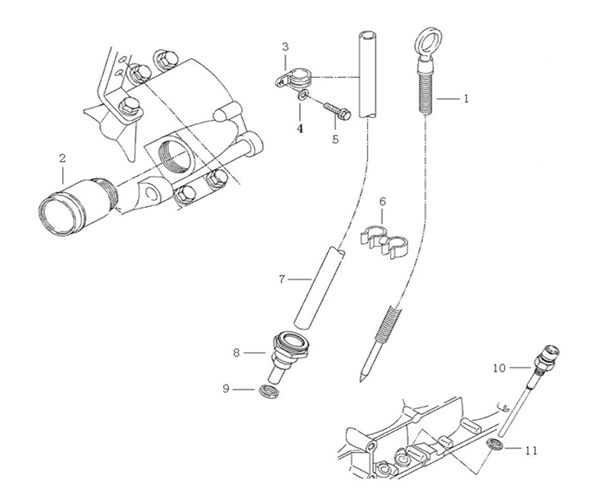

| 1 | 机油尺 | oil rule | 200V05805-5784 | 1 | 1 | ||||
| 2 | 加油接管 | refueling nozzle | 200V01810-0043 | 1 | 1 | ||||
| 3 | 固定夹 | fixation clamp | MQ6-67399-0005 | 1 | 1 | D1-12X20-W1-2-MAN307 MVQ1-70 | |||
| 4 | 垫圈 | gasket | MQ6-15013-0411 | 1 | 1 | GB/T97.1-8-200HV-MAN183-B1 | |||
| 5 | 六角法兰面螺栓 | hexagon flange bolts | MQ6-03216-8303 | 1 | 1 | Q186-M8X16-10.9-MAN183-B1 | |||
| 6 | 双路管夹 | dual pipe clamp | 200V97401-0552 | 1 | 1 | ||||
| 7 | 机油尺管 | dipstick tube | 202V05806-5199 | 1 | 1 | ||||
| 8 | 过渡接头 | transition joint | 202V98181-0004 | 1 | 1 | ||||
| 9 | 复合密封垫圈 | composite sealing gasket | MQ6-56631-0106 | 1 | 1 | BS-14,7 X22,0 -ST/FPM1-80 | |||
| 10 | 螺塞 | plug | MQ6-08042-0206 | 1 | 1 | M20X1,5-ST-GB/T 5267.1-电镀锌A3C | |||
| 11 | 复合密封垫圈 | composite sealing gasket | MQ6-56631-0121 | 1 | 1 | ||||
| 12 | 单管夹子 | clamp | VG2600010447 | 1 | 1 | ||||
| 13 | 机油标尺的橡胶软管 | rubber hose | VG2600010446 | 1 | 1 | ||||
| 14 | 油位传感器 | oil level sensor | 201V27421-0141 | 1 | 1 | ||||
