序号 No. |
名称 | Part Name |
零件图号 Part No. |
每台数量 Q’ty |
规格标准 Standard Specification |
备注 Remark |
|||
| MC1136G401 | MC1140G401 | ||||||||

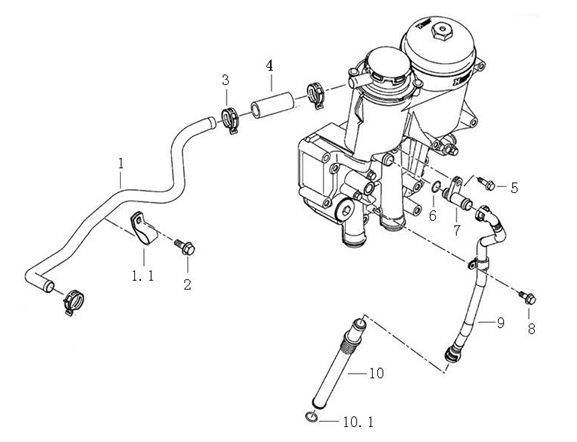

| 1 | 油气分离器出气管总成 | oil and gas separator outlet pipe assembly | 201V01802-5675 | 1 | 1 | ||||
| 1.1 | 管夹 | pipe clamp | 201V97401-0458 | 1 | 1 | ||||
| 2 | 六角法兰面螺栓 | hexagon flange bolts | MQ6-03216-8605 | 1 | 1 | Q186-M14X25-10.9-MAN183-B1 | |||
| 3 | 弹性钢带卡箍 | spring band clamp | MQ6-67420-1229 | 2 | 2 | A-29X12 | |||
| 4 | 连接软管 | connection hose | 200V96330-0346 | 1 | 1 | ||||
| 5 | 六角法兰面螺栓 | hexagon flange bolts | MQ6-03216-8206 | 1 | 1 | Q186-M6X30-10.9-MAN183-B1 | |||
| 6 | O型圈 | o-ring | MQ6-56936-0893 | 1 | 1 | 17X2 N FPM 1-70 | |||
| 7 | 油气分离器回油管过渡接头 | return pipe of oil gas separator ltransition joint | 200V98130-0549 | 1 | 1 | ||||
| 8 | 六角法兰面螺栓 | hexagon flange bolts | MQ6-03216-8203 | 1 | 1 | Q186-M6X16-10.9-MAN183-B1 | |||
| 9 | 油气分离器回油管 | return pipe of oil gas separator | 200V01802-5573 | 1 | 1 | ||||
| 10 | 油气分离器回油管接管 | return pipe of oil gas separator nozzle | 200V05701-0374 | 1 | 1 | ||||
| 10.1 | O型圈 | o-ring | MQ6-56936-1300 | 1 | 1 | 25X2,5-FPM 1-70 | |||
