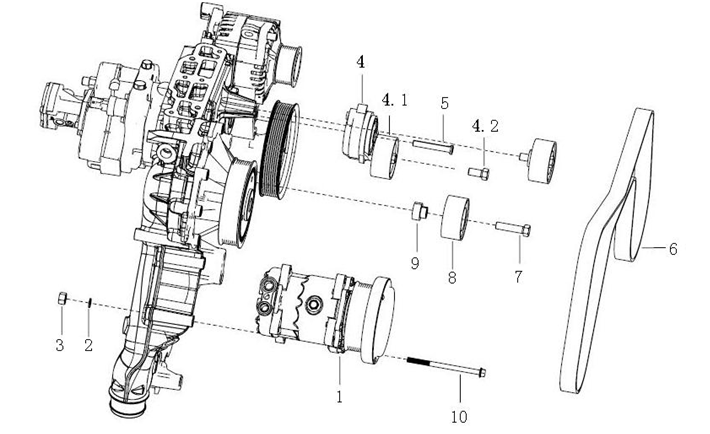

序号 No. |
名称 | Part Name |
零件图号 Part No. |
每台数量 Q’ty |
规格标准 Standard Specification |
备注 Remark |
|||
| MC1136G401 | MC1140G401 | ||||||||
| 1 | 制冷压缩机 | refrigeration compressor | 200V77970-7028 | 1 | 1 | ||||
| 2 | 垫圈 | gasket | MQ6-15013-0412 | 2 | 2 | DIN EN ISO 7089-10-200HV-MAN183-B1 | |||
| 3 | 螺母 | plug | MQ6-11065-2115 | 2 | 2 | GB/T6170-M10-10级-MAN183-B1 | |||
| 4 | 自动张紧轮 | automatic tensioner | 201V95800-7477 | 1 | 1 | ||||
| 4.1 | 惰轮 | idler | 201V95800-6099 | 1 | 1 | ||||
| 4.2 | 六角头带肩螺栓 | hexagon head shoulder bolt | 201V90020-0439 | 1 | 1 | M12X1,75X35-10.9 | |||
| 5 | 埋头螺钉 | countersunk head screw | 200V90040-0007 | 1 | 1 | M10X70-10.9 按M3483 | |||
| 6 | 多楔带 | poly V-belt | 200V96820-0345 | 1 | 1 | 8PK 1920 | |||
| 7 | 六角头螺栓 | hexagon head bolts | 200V90020-0436 | 2 | 2 | M12X55 | |||
| 8 | 惰轮 | idler | 201V95800-6099 | 2 | 2 | ||||
| 9 | 间隔轴套 | spacer sleeves | 200V91701-0892 | 2 | 2 | ||||
| 10 | 内六角圆柱头螺栓 | inner hexagon cylinder head bolt | VG1246060066 | 2 | 2 | ||||
