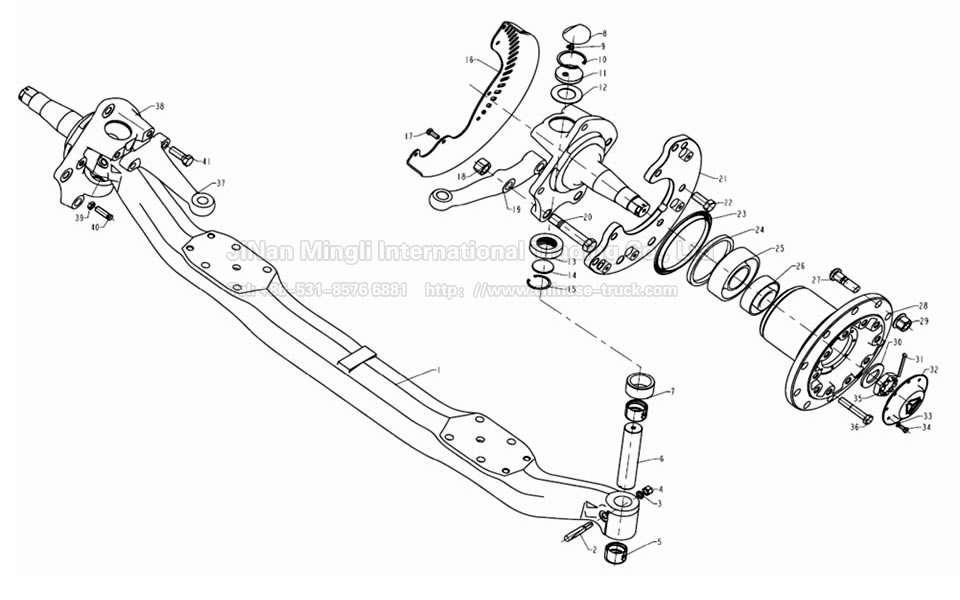

NO.
|
Part number
|
Qty
|
Name
|
Note
|
| 0 | AH40HY171.S1100 | 1 | Front steering axle | 前轴总成 |
| 1 | AZ9900410083 | 1 | Front axle | 前轴 |
| 2 | AZ9100411005 | 2 | Banking screw | 主销限位螺钉 |
| 3 | Q40314 | 2 | Spring shim | 弹簧垫圈 |
| 4 | Q340B14T13F2 | 2 | Castle Nut | I型六角螺母 |
| 5 | WG9100411035 | 4 | Bushing | 衬套 |
| 6 | AZ9100413045 | 2 | Knuckle pin | 转向节销 |
| 7 | AZ9100413035 | 2 | Space ring | 主销隔环 |
| 8 | AZ9100413080 | 2 | Dust cap | 主销防尘盖 |
| 9 | Q701B70 | 2 | Grease fitting | 弯颈油脂嘴 |
| 10 | Q43070 | 2 | Spacers | 孔用弹性挡圈 |
| 11 | AZ9100413070 | 2 | Kingpin cap | 主销盖 |
| 12 | AZ9100413011 -24 | nB | Shim | 垫圈 |
| 13 | WG9700411049 | 2 | Bearing | 前轴推力轴承 |
| 14 | AZ9100411007 | 2 | Lid | 盖 |
| 15 | Q43055 | 2 | Spacers | 孔用弹性挡圈 |
| 16 | WG9100413051/3/5 | 1 | Protctive cover | 防护罩(右) |
| 16a | WG9100413050/2/4 | 1 | Protctive cover | 防护罩(左) |
| 17 | Q150B1025 | 8 | Cap screw | 六角头螺栓 |
| 18 | Q361B24T13F2 | 4 | Nut | 2型六角螺母-细牙 |
| 19 | AZ9719413004 | 1 | Tie rod arm(right) | 转向横拉杆臂(右) |
| 19a | AZ9719413003 | 1 | Tie rod arm(left) | 转向横拉杆臂(左) |
| 20 | AZ9100413008 | 4 | Cap screw | 六角头螺栓 |
| 21 | WG9100413005 | 1 | conneting board | 连接板(右) |
| 21a | WG9100413004 | 1 | conneting board | 连接板(左) |
| 22 | Q151B2045TF2 | 4 | Nut | 六角头螺栓 |
| 23 | WG9112411028 | 2 | Annulus ring | 齿圈(前轴ABS用) |
| 24 | WG9003074387 | 2 | O ring | 轴用密封圈 |
| 25 | WG9100411014 | 2 | Bearing | 圆锥滚子轴承 |
| 26 | WG9100411010 | 2 | Bearing | 圆锥滚子轴承 |
| 27 | WG9100410212 | 20 | Wheel bolt | 车轮螺栓 |
| 28 | AZ9100412211 | 2 | Front hub | 前轮毂 |
| 29 | WG9003884160 | 20 | Nut | 车轮螺母 |
| 30 | WG9100410062 | 2 | Washer | 垫片 |
| 31 | Q5006370 | 2 | Cotter pin | 开口销 |
| 32 | WG9100410043 | 2 | Cap | 罩 |
| 33 | Q40308 | 16 | Spring shim | 弹簧垫圈 |
| 34 | Q150B0816 | 16 | Cap screw | 六角头螺栓 |
| 35 | AZ9100411140 | 2 | Knuckle lock nut | 转向节锁紧螺母 |
| 36 | Q151B1690TF2 | 20 | Cap screw | 六角头螺栓 |
| 37 | AZ9719411001 | 1 | Steering knuckle Arm | 转向节臂 |
| 38 | AZ9100413002 | 1 | Steering knuckle | 转向节(左) |
| 38a | AZ9100413003 | 1 | Steering knuckle | 转向节(右) |
| 39 | Q351B14T15 | 2 | Nut | 六角薄螺母 |
| 40 | WG880 410059 | 2 | Adjusting bolt | 调整螺钉 |
| 41 | Q151B1850TF2 | 2 | Cap screw | 六角头螺栓 |
