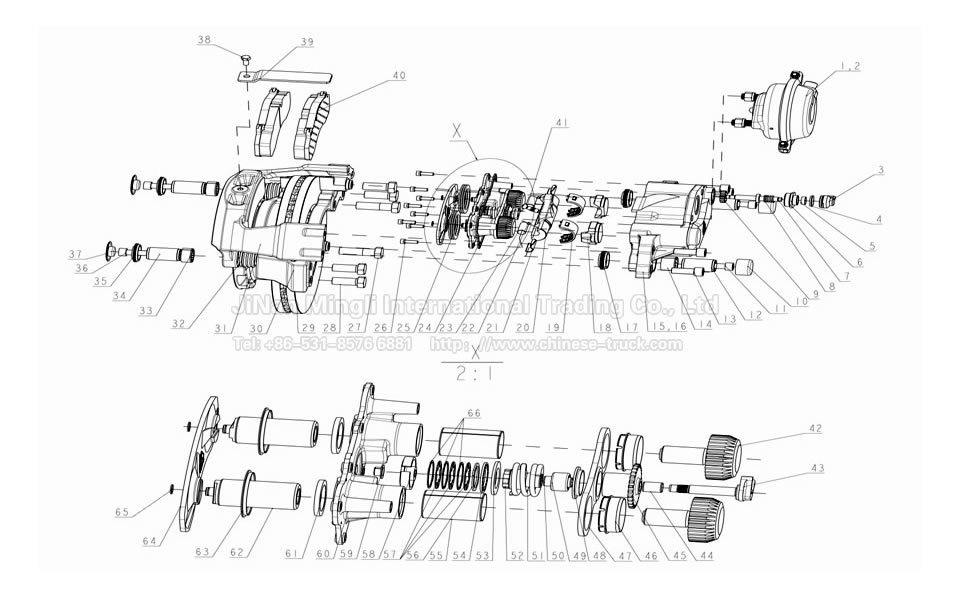

NO.
|
Part number
|
Qty
|
Name
|
Note
|
| 0 | AC71414400611 | 1 | Second Generation Applied Air Disc Brake | 第二代应用型盘式制动器 |
| 1 | WG9100360310/1 | 1 | Front-left Air Chamber 24 Inch | 前左制动气室24″(万安汽车制动系统) |
| 2 | WG9100360320/1 | 1 | Front-right Air Chamber 24 Inch | 前右制动气室24″(万安汽车制动系统) |
| 3 | WG9100443009/1 | 2 | Manual Override Stem Cap | 橡胶帽(青岛海力威) |
| 4 | AZ9100443010 | 2 | Manual Override Stem Retainer | 手调挡圈 |
| 5 | WG9100443011/1 | 2 | Manual Override Stem Seal | 密封圈(青岛海力威) |
| 6 | WG9100443008/1 | 2 | Manual Override Stem Saddle | 手调座(浙江国昌) |
| 7 | WG9100443041/1 | 2 | Manual Override Stem Shaft | 手调轴(恒信精密) |
| 8 | WG9100443043/1 | 2 | Manual Override Stem Spring | 弹簧(杭州弹簧) |
| 9 | WG9100443042/1 | 2 | Manual Override Stem Gear | 手调齿轮(恒信精密) |
| 10 | AZ9100443016 | 4 | End Sleeve | 滑销盖(钳体侧) |
| 11 | Q218B1450TF2 | 2 | Guide Sleeve Bolt | 内六角圆柱头螺钉 |
| 12 | AZ9100443013 | 2 | Guide Sleeve | 滑销 |
| 13 | Q218B1645TF2 | 8 | Return Screw | 内六角圆柱头螺钉 |
| 14 | WG9100443014/1 | 4 | Housing Guide Sleeve Bush | 滑销衬套(钳体侧，荣成远海) |
| 15 | AZ9100443301 | 1 | Housing(left) | 钳体(左) |
| 16 | AZ9100443401 | 1 | Housing(right ) | 钳体(右) |
| 17 | WG9100443017/1 | 4 | Housing Guide Sleeve Excluder | 滑销保护套(青岛海力威) |
| 18 | AZ9100443023 | 4 | Half Bearing Saddle | 半月轴承座 |
| 19 | WG9100443022/1 | 4 | Half Bearing | 半月轴承总成(常州光洋) |
| 20 | WG9100443031/1 | 2 | Operation Shaft | 杠杆(台州山源) |
| 21 | WG9100443033/1 | 4 | Bearing | 衬垫(荣成远海) |
| 22 | WG9100443034/1 | 4 | Rivet | 铆钉(台州山源) |
| 23 | AZ9100443021 | 4 | Roller | 圆柱销 |
| 24 | WG9100443024/1 | 2 | Gasket | 橡胶垫片(青岛海力威) |
| 25 | WG9100443027/1 | 4 | Piston Dust Excluder | 活塞防尘套(青岛海力威) |
| 26 | Q218B0825TF2 | 16 | Piston Housing Assembly Bolt | 内六角圆柱头螺钉 |
| 27 | Q151B2070TF2 | 4 | Brige Screw | 六角头螺栓 |
| 28 | Q151B2050TF2 | 8 | Carrier Screw | 六角头螺栓 |
| 29 | WG9100443001/1 | 2 | Disc | 制动盘(莱州华汽) |
| 30 | AZ9100443002 | 2 | Carrier | 托架 |
| 31 | AZ9100443004 | 2 | Brige | 钳体桥 |
| 32 | WG9100443017/1 | 4 | Brige Guide Sleeve Excluder | 滑销保护套(青岛海力威) |
| 33 | WG9100443019/1 | 4 | Brige Guide Sleeve Bush | 滑销衬套(钳体桥侧，荣成远海) |
| 34 | AZ9100443013 | 4 | Bride Guide Sleeve | 滑销 |
| 35 | WG9100443017/1 | 4 | Brige Guide Sleeve Excluder | 滑销保护套(青岛海力威) |
| 36 | Q218B1450TF2 | 4 | Guide Sleeve Bolt | 内六角圆柱头螺钉 |
| 37 | AZ9100443018 | 4 | End Cap | 滑销盖(钳体桥侧) |
| 38 | Q150B1020TF2 | 2 | Screw | 六角头螺栓 |
| 39 | AZ9100443006 | 2 | Pad Retaining Plate | 压板 |
| 40 | WG9100443050/1 | 4 | Pad Assembly | 制动块总成(REMSA) |
| 41 | WG9100443032/1 | 2 | Drive Pin | 驱动头(台州山源) |
| 42 | WG9100443532/1 | 4 | Tappet | 推杆(恒信精密) |
| 43 | WG9100443511/1 | 2 | Adjuster Shaft | 主调叉(恒信精密) |
| 44 | WG9100443528/1 | 2 | Adjuster Bush | 主调衬套(荣成远海) |
| 45 | WG9100443512/1 | 2 | Adjuster Gear | 主调齿轮(恒信精密) |
| 46 | WG9100443525/1 | 4 | Tappet Distance Sleeve | 推杆隔离套(宁海佳能) |
| 47 | AZ9100443518 | 2 | Adjuster Plate | 主调压板 |
| 48 | WG9100443524/1 | 2 | Adjuster Distance Sleeve | 主调隔离套(宁海佳能) |
| 49 | WG9100443526/1 | 2 | Unilateralism Clutch | 单向离合器(INA) |
| 50 | WG9100443529/1 | 2 | Clutch Shaft Bush | 离合器轴衬套(荣成远海) |
| 51 | WG9100443519/1 | 2 | Return Spring | 弹簧(杭州弹簧) |
| 52 | WG9100443515/1 | 2 | Overload Clutch Shaft | 过载离合器轴(恒信精密) |
| 53 | WG9100443513/1 | 2 | Saddle | 支撑座(杭州奇碟) |
| 54 | WG9100443520/1 | 2 | Thrust Bearing | 推力轴承总成(常州光洋) |
| 55 | WG9100443530/1 | 4 | Pistion Bush | 活塞衬套(荣成远海) |
| 56 | WG9100443521/1 | 2 | Bearing Backing Board | 轴承垫板(杭州奇碟) |
| 57 | WG9100443517/1 | 6 | Overload Clutch Innner Friction Piece | 过载离合器内摩擦片(杭州奇碟) |
| 58 | WG9100443514/1 | 2 | Overload Clutch Shell | 过载离合器壳(恒信精密) |
| 59 | WG9100443536/1 | 2 | F1008 Flanging Bearing | F1008翻边轴承(荣成远海) |
| 60 | AZ9100443527 | 2 | Pistion Bracket | 活塞支架 |
| 61 | WG9100443539/1 | 4 | Seal | 油封(青岛海力威) |
| 62 | WG9100443531/1 | 4 | Pistion | 活塞(玉环万邦) |
| 63 | WG9100443534/1 | 4 | Exluder Clamping Ring | 防尘套压环(青岛海力威) |
| 64 | AZ9100443533 | 2 | Spreader Plate | 整体推盘 |
| 65 | Q43112 | 4 | Circlip for Shaft | 轴用弹性挡圈 |
| 66 | WG9100443516/1 | 6 | Exterior Overload Clutch Friction Piece | 过载离合器外摩擦片(杭州奇碟) |
