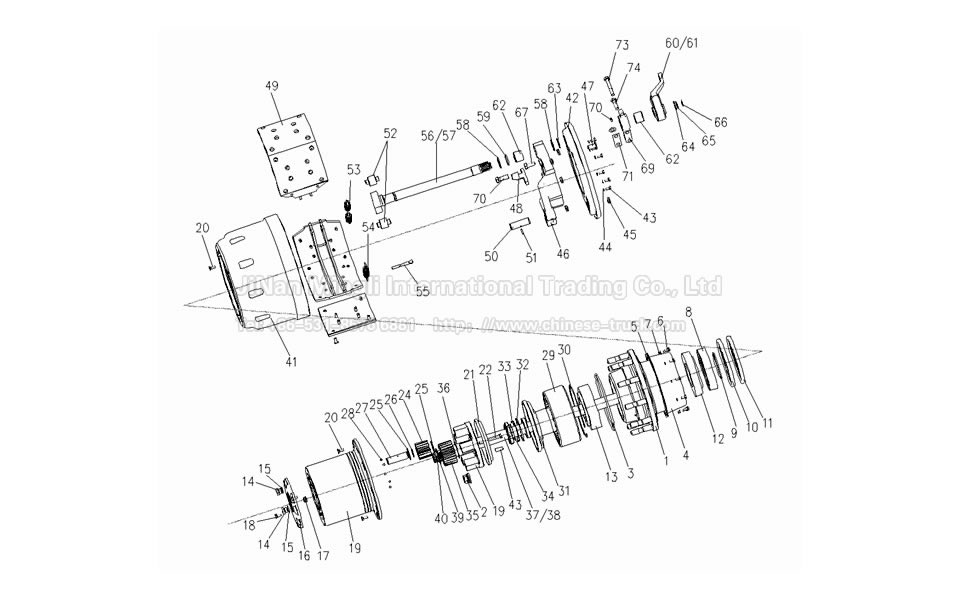

NO.
|
Part number
|
Qty
|
Name
|
Note
|
| 1 | AZ9231340910 | 2 | Rear wheel hub C | 后轮毂总成 |
| 2 | WG9003884160 | 20 | Nut | 车轮螺母 |
| 3 | WG9012340029 | 2 | Gasket | 密封圈 |
| 4 | WG9231340921 | 2 | Oil drip pan | 挡油罩 |
| 5 | WG9012340020 | 2 | Gasket | 密封垫片 |
| 6 | Q150B0816 | 20 | Screw | 六角头螺栓 |
| 7 | Q40308 | 20 | Spring washer | 弹簧垫圈 |
| 8 | WG9231340917 | 2 | Spacer ring | 隔圈 |
| 10 | WG9112340113 | 2 | Gasket | 轴密封圈 |
| 11 | WG9112340114 | 2 | Gasket | 轴密封圈 |
| 12 | 190003326167 | 4 | Roller bearing | 圆锥滚子轴承 32222 GB/T297-9 |
| 13 | 190003326167 | 4 | Roller bearing | 圆锥滚子轴承 32222 GB/T297-9 |
| 14 | 190003961309 | 4 | Screw | 圆柱头内六角螺塞 |
| 15 | 190003098026 | 4 | Gasket | 密封垫圈 |
| 16 | WG9231340001 | 2 | Cover | 端盖 |
| 17 | WG9012340011 | 2 | Bolt | 端盖顶销 |
| 18 | Q150B1018 | 20 | Screw | 六角头螺栓 |
| 19 | 199112340029 | 2 | Planetary carrier | 行星架总成 |
| 20 | Q2541025 | 8 | Screw | 十字槽沉头螺钉 |
| 21 | WG880420027 | 2 | Oil drip pan | 行星架挡油盘 |
| 22 | Q151C1295TF2 | 10 | Screw | 六角头螺栓 |
| 23 | 190003901704 | 10 | Cyl.pin | 园柱销 |
| 24 | WG9012340122 | 10 | Bevel pinion | 行星轮(Z=16) |
| 25 | WG9012340075 | 20 | Washer | 行星轮垫片 |
| 26 | WG9012340077 | 10 | Washer | 垫圈 |
| 27 | WG9012340004 | 10 | Bolt | 行星轮轴 |
| 28 | 190003330148 | 10 | Bolt | 钢球--8.0000 G200 b-GB308 |
| 29 | WG9012340121 | 2 | Intermed.ring gear | 内齿圈(Z=57) |
| 30 | WG880420014 | 2 | Srap ring | 轴用挡圈 |
| 31 | WG9112340021 | 2 | Support for intermed.ring gear | 齿圈支架总成 |
| 32 | WG880420034 | 2 | Ring | 止推垫环 |
| 33 | WG680340015 | 2 | Securing sheet | 止推垫圈 |
| 34 | WG680340016 | 按需 | Shim | 调整垫片(厚0.1) |
| 34 | WG680340017 | 按需 | Shim | 调整垫片(厚0.2) |
| 34 | WG680340018 | 按需 | Shim | 调整垫片(厚1.0) |
| 34 | WG680340019 | 按需 | Shim | 调整垫片(厚1.5) |
| 34 | WG680340186 | 按需 | Shim | 调整垫片(厚0.5) |
| 34 | WG680340187 | 按需 | Shim | 调整垫片(厚0.15) |
| 35 | WG9012340005 | 2 | Helical gear | 太阳轮 (Z=23) |
| 36 | WG9012340076 | 2 | Stop washer | 太阳轮垫圈 |
| 37 | WG9231340223 | 1 | Drive shafe(left) | 半轴（左） |
| 38 | WG9231340224 | 1 | Drive shaft(right) | 半轴(右) |
| 39 | WG880 410097 | 2 | Washer | 垫圈 |
| 40 | 190003933351 | 2 | Circlip | 轴用弹性挡圈 |
| 41 | WG9231342006 | 2 | Brake grum | 后制动鼓 |
| 42 | AZ9231342008 | 2 | Brake cover | 制动器防尘罩 |
| 43 | Q150B0816 | 12 | Screw | 六角头螺栓 |
| 44 | Q40308 | 12 | Spring washer | 弹簧垫圈 |
| 45 | WG880340037 | 8 | Seal-ring | 密封圈 |
| 46 | AZ9231340562 | 2 | Brake anchor | 制动底板 |
| 47 | WG9112340010 | 2 | Bush | ABS传感器输出保护套 |
| 48 | AZ9231340956 | 2 | Bracket | ABS传感器支架 |
| 49 | AZ9231342010 | 4 | Brake shoe C | 制动蹄带衬片总成 |
| 50 | AZ9231340104 | 4 | Bolt | 支销 |
| 51 | Q5280624 | 4 | Pin | 弹性园柱销 |
| 52a | WG9231340106 | 4 | Bracket | 制动蹄滚轮保持架 |
| 52 | WG9231340105 | 4 | Pressure roller | 滚轮 |
| 53 | WG2258W803 | 2 | Spring washer | 回位弹簧 |
| 54 | WG9112340049 | 4 | Spring washer | 回位弹簧 |
| 56 | WG9231340226 | 1 | Brake camshaft left | 制动凸轮轴(左) |
| 57 | WG9231340227 | 1 | Brake camshaft right | 制动凸轮轴(右) |
| 58 | WG880440010 | 4 | Washer | 附加垫片 |
| 59 | WG880340023 | 2 | Gasket | O形密封圈 |
| 60 | WG9100340056 | 1 | Rod adjusting device 1. | 间隙调节臂总成（左） |
| 61 | WG9100340057 | 1 | Rod adjusting device r. | 间隙调节臂总成（右） |
| 62 | WG9100340017 | 4 | Bush | 复合衬套 |
| 63 | 190003933300 | 2 | Snap ring | 轴用弹性挡圈 |
| 64 | WG880340022 | 2 | Washer | 垫圈 |
| 65 | WG80 320028 | 按需 | Shim | 调整垫圈 |
| 65 | WG80 320029 | 按需 | Shim | 调整垫圈 |
| 65 | WG80 320030 | 按需 | Shim | 调整垫圈 |
| 65 | WG80 320046 | 按需 | Shim | 调整垫圈 |
| 66 | 190003933116 | 2 | Circlip | 轴用弹簧档圈 |
| 67 | Q151B1635TF2 | 16 | Screw | 六角头螺栓 |
| 68 | Q151B1645TF2 | 4 | Screw | 六角头螺栓 |
| 69 | 199014340041 | 2 | Bracket | 凸轮轴支架 |
| 70 | 190003963112 | 2 | Grease nipple | 米制锥螺纹滑脂嘴 |
| 71 | WG880340031 | 按需 | Shim | 调整垫片(厚0.1) |
| 71 | WG880340032 | 按需 | Shim | 调整垫片(厚0.15) |
| 71 | WG880340033 | 按需 | Shim | 调整垫片(厚0.4) |
| 71 | WG880340034 | 按需 | Shim | 调整垫片(厚1.0) |
| 72 | WG3809470031 | 按需 | Shim | 调整垫片 |
| 72 | WG3809470032 | 按需 | Shim | 调整垫片 |
| 72 | WG3809470033 | 按需 | Shim | 调整垫片 |
| 73 | Q151B1490 | 2 | Screw | 六角头螺栓 |
| 74 | Q151B1445 | 2 | Screw | 六角头螺栓 |
