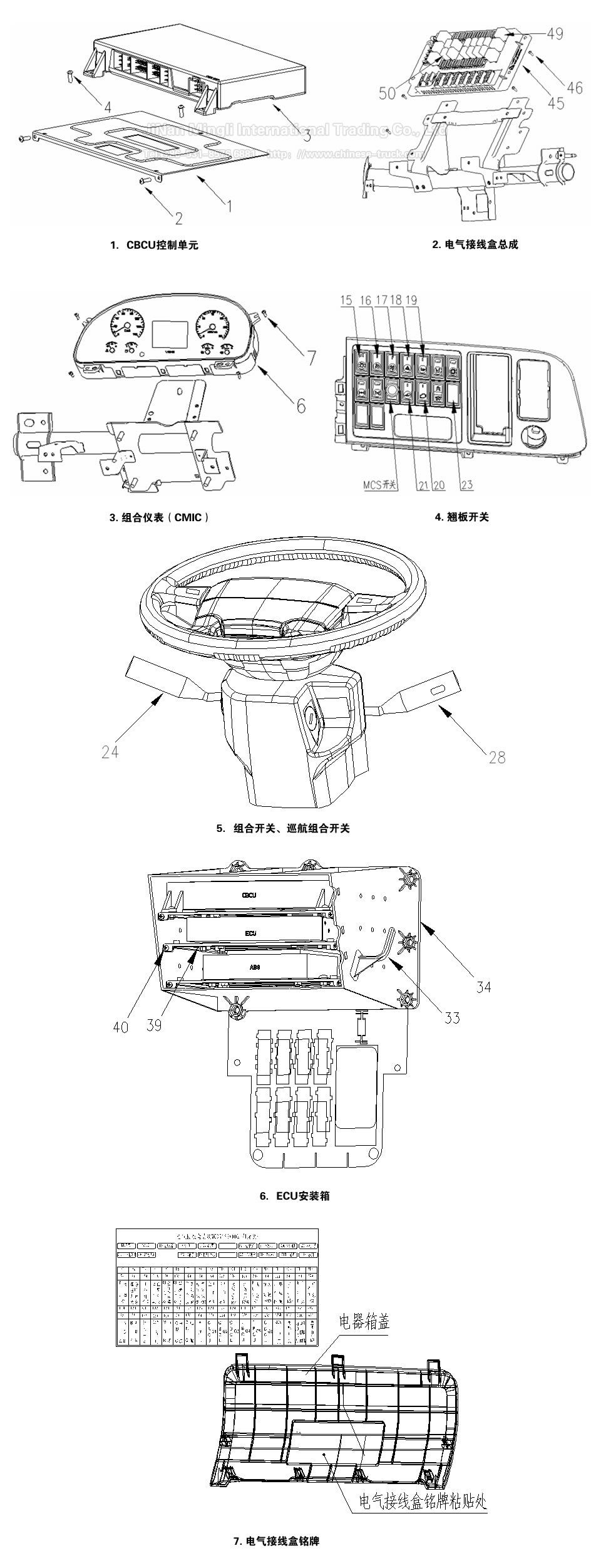

NO.
|
Part number
|
Qty
|
Name
|
Note
|
| 1 | AZ9724580002 | 1 | CBCU安装板 | |
| 2 | Q2714216 | 2 | 十字槽盘头自攻螺钉 | |
| 3 | WG9716580023 | 1 | 中央控制单元（CBCU） | |
| 4 | Q2140512 | 3 | 十字槽盘头螺钉 | |
| 5 | Q40105 | 3 | 平垫圈 | |
| 6 | WG9716580025 | 1 | 组合仪表（CMIC） | |
| 7 | Q2714816 | 4 | 十字槽盘头自攻螺钉 | |
| 8 | Q40105 | 4 | 平垫圈 | |
| 9 | AZ9725584001 | 1 | 仪表台装配图 | |
| 10 | WG9100583058 | 1 | 车速传感器 | |
| 11 | 12130 050086 | 1 | 铅封 | |
| 12 | 190000810930 | 1 | 铅封线 | |
| 13 | WG9719582045 | 1 | 增减开关 | |
| 14 | WG9719582046 | 1 | 确认开关 | |
| WG9719582054 | 1 | MCS开关 | ||
| 15 | WG9719582001 | 1 | 灯光开关 | |
| 16 | WG9719582002 | 1 | 前雾灯开关 | |
| 17 | WG9719582003 | 1 | 后雾灯开关 | |
| 18 | WG9719582004 | 1 | 危急报警开关 | |
| 19 | WG9719582005 | 1 | 喇叭开关 | |
| 20 | WG9719582020 | 1 | ECU诊断开关 | |
| 21 | WG9719582007 | 1 | 工作灯开关 | |
| 22 | WG9725580005 | 1 | 诊断接口外壳 | |
| 23 | WG9900580021 | 9 | 盖板 | |
| 24 | WG9130583117 | 1 | 组合开关(转向柱上) | |
| 25 | Q2540512 | 3 | 十字槽沉头螺钉 | |
| 26 | Q40105 | 3 | 平垫圈 | |
| 27 | Q40305 | 3 | 弹簧垫圈 | |
| 28 | WG9725584009 | 1 | 巡航组合开关 | |
| 29 | Q2540512 | 3 | 十字槽沉头螺钉 | |
| 30 | Q40105 | 3 | 平垫圈 | |
| 31 | Q40305 | 3 | 弹簧垫圈 | |
| 32 | WG9100580142 | 1 | 24V点烟器 | |
| 33 | WG9725584026 | 1 | 线束固定夹 | |
| 34 | WG9725584029 | 1 | ECU安装箱 | |
| 35 | Q150B0825 | 5 | 六角头螺栓 | |
| 36 | Q40108 | 5 | 平垫圈 | |
| 37 | Q40308 | 5 | 弹簧垫圈 | |
| 38 | Q340B08 | 5 | 1型六角螺母 | |
| 39 | WG9725584028 | 1 | 发动机ECU安装支架 | |
| 40 | Q2714216 | 2 | 十字槽盘头自攻螺钉 | |
| 41 | WG9725584010 | 1 | 发动机ECU | |
| 42 | Q2140512 | 8 | 十字槽盘头螺钉 | |
| 43 | Q40105 | 8 | 平垫圈 | |
| 44 | Q40305 | 8 | 弹簧垫圈 | |
| 45 | WG9716580021 | 1 | 电气接线盒总成 | |
| 46 | Q2140635 | 4 | 盘头螺钉 | |
| 47 | Q40106 | 4 | 平垫圈 | |
| 48 | AZ9724580001 | 1 | 电气接线盒铭牌 | |
| 49 | WG9725584001 | 5 | 40A转换式继电器 | |
| 50 | WG9725584002 | 11 | 20A常开式继电器 | |
| 51 | WG9725584003 | 1 | 20A转换式继电器 | |
| 52 | WG9725584011 | 1 | 怠速调节器 | |
| 53 | AZ9725580018 | 1 | 怠速调节器安装图 | |
| 54 | WG9718710005 | 1 | 离合器开关 |
