序号
|
名称
|
Part Name
|
零部件图号
|
每台数量Qty
|
Note
|
||||
|
No.
|
Part No.
|
WD615.92E
|
WD615.93E
|
WD615.95E
|
WD615.96E
|
WD615.97E
|
|||

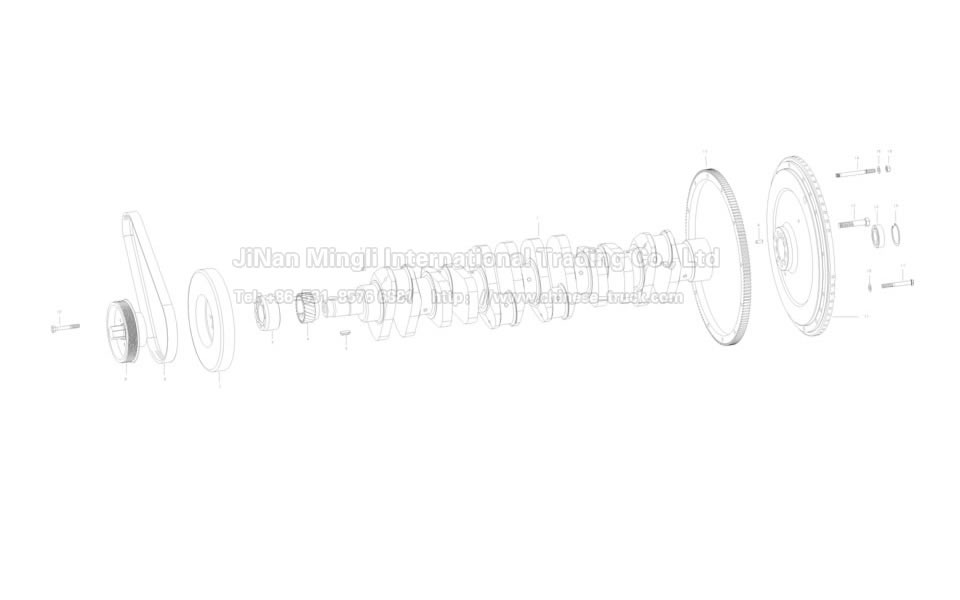

| - | 曲轴总成 | Crankshaft ass | 161560020029 | - | - | 1 | 1 | - | |
| 曲轴总成 | Crankshaft ass | 161500020071 | 1 | 1 | - | - | 1 | ||
| 1 | 曲轴 | Crankshaft | 161560020024 | - | - | 1 | 1 | - | |
| 曲轴 | Crankshaft | 161500020012 | 1 | 1 | - | - | 1 | ||
| 2 | 圆柱销 | Dowel pin | 90003901504 | 6* | 6* | 6* | 6* | 6* | |
| 堵塞 | Jam | VG2600020311 | 6* | 6* | 6* | 6* | 6* | ||
| 3 | 法兰 | Flange | VG1500020070 | 1 | 1 | 1 | 1 | 1 | |
| 4 | 曲轴齿轮 | Crankshaft gear | VG14020038 | 1 | 1 | 1 | 1 | 1 | |
| 5 | 平键 | Key | 90003960569 | 1 | 1 | 1 | 1 | 1 | |
| 6 | 圆柱销 | Dowel pin | 90003901418 | 1 | 1 | 1 | 1 | 1 | |
| 7 | 减振器 | Vibration damper | VG1560020010 | 1 | 1 | 1 | 1 | 1 | |
| 8 | 汽车多楔带 | Ribbed belt | VG2600020253 | 1 | 1 | 1 | 1 | 1 | |
| 9 | 皮带轮 | Belt pulley | VG1560020020 | 1 | 1 | 1 | 1 | 1 | |
| 10 | 六角头螺栓 | Bolt | 90003802558 | 8 | 8 | 8 | 8 | 8 | |
| 11 | 飞轮 | Flywheel | AZ1092020002 | 1 | 1 | 1 | 1 | 1 | |
| 12 | 六角头螺栓 | Bolt | VG1500020046 | 9 | 9 | 9 | 9 | 9 | |
| 13 | 飞轮齿圈 | Ring gear | VG2600020208 | 1 | 1 | 1 | 1 | 1 | |
| 14 | 向心球轴承 | Ball bearing | 90003311416 | 1 | 1 | 1 | 1 | 1 | |
| 15 | 孔用弹性挡圈62×2 | Circlip | 90003934310 | 1 | 1 | 1 | 1 | 1 | |
| 16 | 波形弹性垫圈B10 | Spring washer | 90003932024 | 12 | 12 | 12 | 12 | 12 | |
| 17 | 六角头螺栓 | Bolt | Q150B1085 | 10 | 10 | 10 | 10 | 10 | |
| 18 | 双头螺栓 | Stud | 90003813571 | 2 | 2 | 2 | 2 | 2 | |
| 19 | 六角头螺母 | Nut | 90003871308 | 2 | 2 | 2 | 2 | 2 | |
