序号
|
名称
|
Part Name
|
零部件图号
|
每台数量Qty
|
Note
|
||||
|
No.
|
Part No.
|
WD615.92E
|
WD615.93E
|
WD615.95E
|
WD615.96E
|
WD615.97E
|
|||

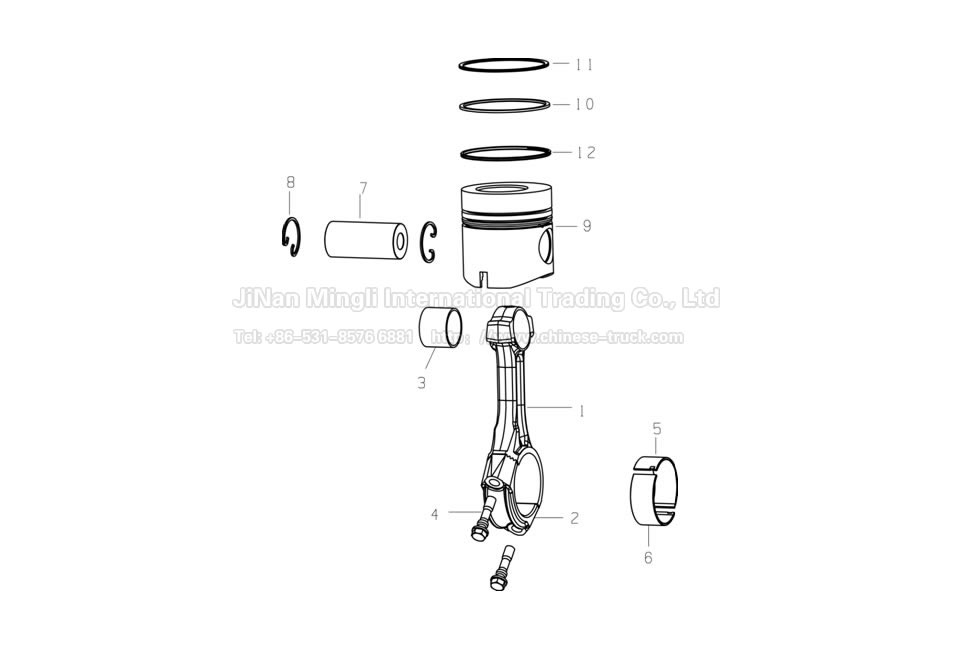

| 1 | 连杆体 | Connecting rod | 161500030008 | 6 | 6 | 6 | 6 | 6 | |
| 2 | 连杆盖 | Connecting rod cover | 161500030022 | 6 | 6 | 6 | 6 | 6 | |
| 3 | 连杆衬套 | Connecting rod bush | VG1500030077 | 6 | 6 | 6 | 6 | 6 | |
| 4 | 连杆螺栓 | Connecting rod bolt | VG1500030023 | 12 | 12 | 12 | 12 | 12 | |
| 5 | 连杆上瓦 | Connecting rod bearing | VG1560037034 | 6 | 6 | 6 | 6 | 6 | |
| 6 | 连杆下瓦 | Connecting rod bearing | VG1560037033 | 6 | 6 | 6 | 6 | 6 | |
| 7 | 活塞销 | Piston pin | VG1560030013 | 6 | 6 | 6 | 6 | 6 | |
| 8 | 活塞销挡圈 | Piston pin retaining ring | VG1560030012 | 12 | 12 | 12 | 12 | 12 | |
| 9 | 活塞 | Piston | VG1560030010 | 6 | 6 | - | - | 6 | |
| 活塞 | Piston | VG1560037011 | - | - | 6 | 6 | - | ||
| - | 活塞环套件 | Ring series | VG1540030005 | 6 | 6 | 6 | 6 | 6 | |
| 10 | 锥面环 | Conical ring | VG1540030006 | 6 | 6 | 6 | 6 | 6 | |
| 11 | 梯形桶面环 | Double ladder ring | VG1540030007 | 6 | 6 | 6 | 6 | 6 | |
| 12 | 螺旋撑簧油环 | Spiral spring oil ring | VG1540030008 | 6 | 6 | 6 | 6 | 6 | |
