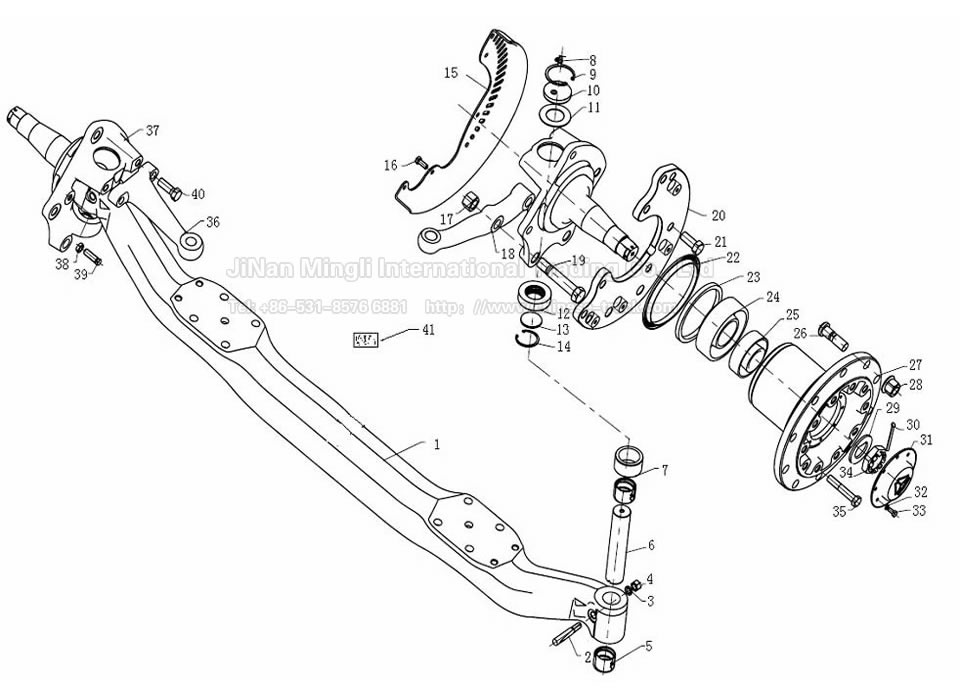

NO. | Part number | Note | Name | Quantity |
1 | AZ9900410083 | Front axle | 前轴(7吨) | 1 |
1a | AZ9719410090 | Front axle | 前轴(7吨 板簧距900) | 1 |
2 | AZ9100411005 | Banking screw | 主销限位螺钉 | 2 |
3 | Q40314 | Spring shim | 弹簧垫圈 | 2 |
4 | Q340B14T13F2 | Castle Nut | I型六角螺母 | 2 |
5 | WG9100411035 | Bushing | 衬套 | 4 |
6 | AZ9100413045 | Knuckle pin | 转向节销 | 2 |
7 | AZ9100413035 | Space ring | 主销隔环 | 2 |
8 | Q701B70 | Grease fitting | 弯颈油脂嘴 | 2 |
9 | Q43070 | Spacers | 孔用弹性挡圈 | 2 |
10 | AZ9100413070 | Kingpin cap | 主销盖 | 2 |
11 | AZ9100413011 -24 | Shim | 垫圈 | nB |
12 | WG9700411049 | Bearing | 前轴推力轴承 | 2 |
13 | AZ9100411007 | Lid | 盖 | 2 |
14 | Q43055 | Spacers | 孔用弹性挡圈 | 2 |
15 | WG9100413053 | Protctive cover | 防护罩(右) | 1 |
15a | WG9100413052 | Protctive cover | 防护罩(左) | 1 |
16 | Q150B1025 | Cap screw | 六角头螺栓 | 8 |
17 | Q361B24T13F2 | Nut | 2型六角螺母-细牙 | 4 |
18 | AZ9719413004 | Tie rod arm(right) | 转向横拉杆臂(右) | 1 |
18a | AZ9719413003 | Tie rod arm(left) | 转向横拉杆臂(左) | 1 |
19 | AZ9100413008 | Cap screw | 六角头螺栓 | 4 |
20 | WG9100413004 | conneting board | 连接板 | 2 |
21 | Q151B2045TF2 | Nut | 六角头螺栓 | 4 |
22 | WG9112410019 | Annulus ring | 齿圈 | 2 |
23 | WG9003074387 | "O" ring | 轴用密封圈 | 2 |
24 | WG9100411014 | Bearing | 圆锥滚子轴承 | 2 |
25 | WG9100411010 | Bearing | 圆锥滚子轴承 | 2 |
26 | WG9100410212 | Wheel bolt | 车轮螺栓 | 20 |
27 | AZ9100412211 | Front hub | 前轮毂 | 2 |
28 | WG9003884160 | Nut | 车轮螺母 | 20 |
29 | WG9100410062 | Washer | 垫片 | 2 |
30 | Q5006370 | Cotter pin | 开口销 | 2 |
31 | WG9100410043 | Cap | 罩 | 2 |
32 | Q40308 | Spring shim | 弹簧垫圈 | 16 |
33 | Q150B0816 | Cap screw | 六角头螺栓 | 16 |
34 | AZ9100411140 | Knuckle lock nut | 转向节锁紧螺母 | 2 |
35 | Q151B1690TF2 | Cap screw | 六角头螺栓 | 20 |
36 | AZ9719411011 | Steering knuckle Arm | 转向节臂 | 1 |
37 | AZ9100413002 | Steering knuckle | 转向节(左) | 1 |
37a | AZ9100413003 | Steering knuckle | 转向节(右) | 1 |
38 | Q351B14T15 | Nut | 六角薄螺母 | 2 |
39 | WG880 410059 | Adjusting bolt | 调整螺钉 | 2 |
40 | Q151B1850TF2 | Cap screw | 六角头螺栓 | 2 |
41 | WG2297Y4835 | Plaque | 铭牌 | 1 |
