Aapplied second generation air disc brake

Aapplied second generation air disc brake

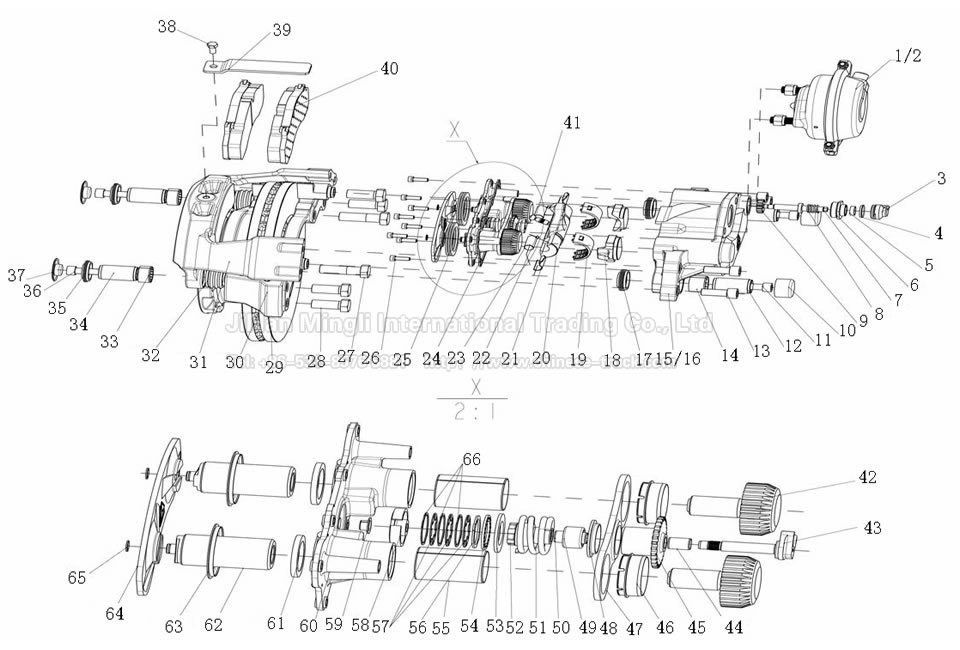

NO. Part number Note Name Quantity
1 WG9100360410 Front-left  Air Chamber 24 Inch 前左制动气室22″ 1
2 WG9100360420 Front-right  Air Chamber 24 Inch 前右制动气室22″ 1
3 WG9100443009 Manual Override Stem Cap 橡胶帽 2
4 AZ9100443010 Manual Override Stem Retainer 手调挡圈  2
5 WG9100443011 Manual Override Stem Seal 密封圈 2
6 WG9100443008 Manual Override Stem Saddle 手调座 2
7 WG9100443041 Manual Override Stem Shaft 手调轴 2
8 WG9100443043 Manual Override Stem Spring 弹簧 2
9 WG9100443042 Manual Override Stem Gear 手调齿轮 2
10 AZ9100443016 End Sleeve 滑销盖 4
11 Q218B1450TF2 Guide Sleeve Bolt 内六角圆柱头螺钉 4
12 AZ9100443013 Guide Sleeve 滑销 4
13 Q218B1645TF2 Return Screw 内六角圆柱头螺钉 8
14 WG9100443014 Housing Guide Sleeve Bush 滑销衬套 4
15 AZ9100443301 Housing(left) 钳体(左) 1
16 AZ9100443401  Housing(right ) 钳体(右) 1
17 WG9100443017 Housing Guide Sleeve Excluder 滑销保护套 4
18 AZ9100443023 Half Bearing Saddle 半月轴承座 4
19 WG9100443022 Half Bearing 半月轴承总成 4
20 WG9100443031 Operation Shaft 杠杆 2
21 WG9100443033 Bearing 衬垫 4
22 WG9100443034 Rivet 铆钉 4
23 AZ9100443021 Roller 圆柱销 4
24 WG9100443024 Gasket 橡胶垫片  2
25 WG9100443027 Piston Dust Excluder 活塞防尘套 4
26 Q218B0825TF2 Piston Housing Assembly Bolt  内六角圆柱头螺钉 16
27 Q151B2050TF2  Screw 六角头螺栓 8
28 Q151B2070TF2 Screw 六角头螺栓 4
29 WG9100443001 Disc 制动盘 2
30 AZ9100443002 Carrier  托架 2
31 AZ9100443004 Brige 钳体桥 2
32 WG9100443017 Brige Guide Sleeve Excluder 滑销保护套 4
33 WG9100443019 Brige Guide Sleeve Bush 滑销衬套 4
34 AZ9100443013 Bride Guide Sleeve 滑销 4
35 WG9100443017 Brige Guide Sleeve Excluder 滑销保护套 4
36 Q218B1450TF2 Guide Sleeve Bolt 内六角圆柱头螺钉 4
37 AZ9100443018 End Cap 滑销盖 4
38 Q150B1020TF2 Screw 六角头螺栓 2
39 AZ9100443006 Pad Retaining Plate 压板 2
40 WG9100443050 Pad Assembly 制动块总成 4
41 WG9100443032 Drive Pin 驱动头 2
42 WG9100443532 Tappet 推杆 4
43 WG9100443511 Adjuster Shaft 主调叉 2
44 WG9100443528 Adjuster Bush 主调衬套 2
45 WG9100443512 Adjuster Gear 主调齿轮 2
46 WG9100443525 Tappet Distance Sleeve 推杆隔离套 4
47 AZ9100443518 Adjuster Plate 主调压板 2
48 WG9100443524 Adjuster Distance Sleeve 主调隔离套 2
49 WG9100443526 Unilateralism Clutch 单向离合器 2
50 WG9100443529 Clutch Shaft Bush 离合器轴衬套 2
51 WG9100443519 Return Spring 弹簧 2
52 WG9100443515 Overload Clutch Shaft 过载离合器轴 2
53 WG9100443513 Saddle 支撑座 2
54 WG9100443520 Thrust Bearing 推力轴承总成 2
55 WG9100443530 Pistion Bush 活塞衬套 4
56 WG9100443521 Bearing Backing Board 轴承垫板 2
57 WG9100443517 Overload Clutch Innner Friction Piece 过载离合器内摩擦片 6
58 WG9100443514 Overload Clutch Shell 过载离合器壳 2
59 WG9100443536 F1008  Flanging Bearing F1008翻边轴承 2
60 AZ9100443527 Pistion Bracket 活塞支架 2
61 WG9100443539 Seal 油封 4
62 WG9100443531 Pistion 活塞 4
63 WG9100443534 Exluder Clamping Ring 防尘套压环 4
64 AZ9100443533 Spreader Plate 整体推盘 2
65 Q43112 Circlip for Shaft 轴用弹性挡圈 4
