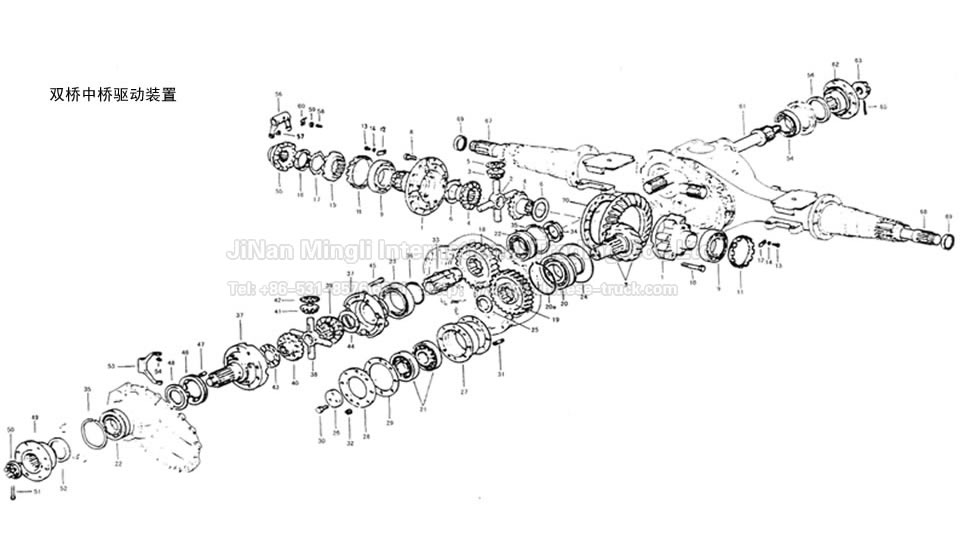

Middle Axle Driving Device
|
NO. |
Part number |
Name |
Quantity |
Note |
|
0 |
AZ9231320774 |
中桥中段 |
|
|
|
1 |
199014320165 |
差速器壳 |
1 |
|
|
2 |
199014320091 |
差速器十字轴 |
1 |
|
|
3 |
199012320010 |
行星齿轮 |
4 |
|
|
4 |
199012320009 |
半轴齿轮 |
2 |
|
|
5 |
199012320150 |
行星齿轮垫片 |
4 |
|
|
6 |
11800 320012 |
调整垫片 |
nB |
|
|
6 |
199012320129 |
调整垫片 |
nB |
|
|
6 |
11800 320131 |
调整垫片 |
nB |
|
|
6 |
11800 320132 |
调整垫片 |
nB |
|
|
6 |
13809 320169 |
调整垫片 |
nB |
|
|
7 |
WG9114320252 |
锥齿轮付 |
1 |
速比6.72 |
|
|
WG9014320255 |
锥齿轮付 |
1 |
速比9.49 |
|
8 |
Q151B1635TF2 |
六角头螺栓 |
16 |
速比6.72 |
|
|
Q151B1650TF2 |
六角头螺栓 |
16 |
速比9.49 |
|
|
WG9014320153 |
衬环 |
1 |
速比9.49 |
|
9 |
190003326148 |
圆锥滚子轴承32216GB/T297-94 |
2 |
|
|
10 |
190003803712 |
六角头螺栓-Q151B1480TF2 |
8 |
|
|
11 |
13809 320159 |
差俗器轴承调整螺母 |
2 |
|
|
12 |
179000320027 |
止动片 |
2 |
|
|
13 |
190003802411 |
六角头螺栓-Q151B0816 |
2 |
|
|
14 |
190003931102 |
弹簧垫圈-Q40308 |
2 |
|
|
15 |
13809 320155 |
固定啮合套 |
1 |
|
|
16 |
13809 320157 |
园螺母 |
1 |
|
|
17 |
13809 320158 |
锁止垫片 |
1 |
|
|
18 |
199014320209 |
主动圆柱齿轮z=31 |
1 |
|
|
19 |
199014320208 |
从动圆柱齿轮z=26 |
1 |
|
|
20 |
199014320257 |
滚柱轴承 |
1 |
|
|
21 |
190003326333 |
钢丝挡圈 |
1 |
|
|
22 |
190003311543 |
圆锥滚子轴承31311GB/T297-94 |
2 |
|
|
23 |
190003310239 |
有止动槽的向心球轴承6312N |
2 |
|
|
24 |
199014320'174 |
带防尘盖深沟球轴承60'19-Z |
1 |
|
|
25 |
199014320140 |
隔圈 |
1 |
|
|
26 |
AZ9114320002 |
防松锁片--轴承压板紧固螺栓 |
1 |
|
|
26 |
1780 320088 |
轴承压板 |
1 |
|
|
27 |
199014320129 |
轴承座 |
1 |
|
|
28 |
199014320128 |
轴承外环压板 |
1 |
|
|
29 |
199014320131 |
调整垫片 |
nB |
|
|
29 |
199014320132 |
调整垫片 |
nB |
|
|
29 |
199014320133 |
调整垫片 |
nB |
|
|
29 |
199014320134 |
调整垫片 |
nB |
|
|
30 |
190003802721 |
六角头螺栓-Q150B1430TF2 |
3 |
|
|
31 |
190003813543 |
双头螺栓 |
8 |
|
|
32 |
190003888452 |
2型全金属六角锁紧螺母-Q33210 |
8 |
|
|
33 |
199014320135 |
空心轴 |
1 |
|
|
34 |
199012250031 |
开槽园螺母 |
1 |
|
|
35 |
190003935383 |
轴用压扁钢丝挡圈-Q433130 |
2 |
|
|
36 |
190003933580 |
轴用弹性挡圈 |
1 |
|
|
37 |
199014320165 |
差速器壳 |
1 |
|
|
38 |
199014320091 |
差速器十字轴 |
1 |
|
|
39 |
199014320059 |
半轴齿轮（后） |
1 |
|
|
40 |
199114320032 |
半轴齿轮（前） |
1 |
|
|
41 |
199012320010 |
行星齿轮 |
4 |
|
|
42 |
199012320150 |
行星齿轮垫片 |
4 |
|
|
43 |
199014320067 |
半轴齿轮（前）垫片 |
nB |
|
|
43 |
199014320068 |
半轴齿轮（前）垫片 |
nB |
|
|
43 |
199014320211 |
半轴齿轮（前）垫片 |
nB |
|
|
43 |
199014320069 |
半轴齿轮（前）垫片 |
nB |
|
|
43 |
199014320070 |
半轴齿轮（前）垫片 |
nB |
|
|
44 |
199014320071 |
半轴齿轮（后）垫片 |
nB |
|
|
44 |
199014320072 |
半轴齿轮（后）垫片 |
nB |
|
|
44 |
199014320210 |
半轴齿轮（后）垫片 |
nB |
|
|
44 |
199014320073 |
半轴齿轮（后）垫片 |
nB |
|
|
44 |
199014320074 |
半轴齿轮（后）垫片 |
nB |
|
|
45 |
190003803712 |
六角头螺栓-Q151B1480TF2 |
8 |
|
|
46 |
1288 320105 |
差速器锁环 |
1 |
|
|
47 |
1288 320106 |
差速锁销 |
10 |
|
|
48 |
199014320061 |
轴间差速器壳垫片 |
1 |
|
|
50 |
AZ9231320014 |
180端面齿法兰 |
1 |
|
|
50 |
WG79000320013 |
凸缘螺母 |
1 |
|
|
51 |
190003920450 |
开口销-Q5005055 |
1 |
|
|
52 |
190003078722 |
轴密封圈 |
1 |
|
|
52 |
190003070026 |
轴密封圈 |
1 |
|
|
53 |
199014320053 |
拨叉 |
1 |
|
|
54 |
11800 320077 |
拨叉活动块 |
2 |
|
|
55 |
13809 320156 |
滑动啮合套 |
1 |
|
|
56 |
199012320014 |
拨叉 |
1 |
|
|
57 |
11800 320077 |
拨叉活动块 |
2 |
|
|
58 |
190003902481 |
开槽锥端紧定螺钉-Q2800825 |
1 |
|
|
59 |
190003871252 |
1型六角螺母-Q340B08 |
1 |
|
|
60 |
199012320023 |
弯板 |
1 |
|
|
61 |
AZ9231320261 |
贯通轴 |
1 |
|
|
62 |
WG9231320205 |
凸缘总成 |
1 |
|
|
63 |
WG79000320013 |
凸缘螺母 |
1 |
|
|
64 |
WG9231326212 |
深沟球轴承 |
1 |
|
|
65 |
190003920450 |
开口销-Q5005055 |
1 |
|
|
66 |
190003078772 |
轴密封圈 |
1 |
|
|
67 |
AZ9231342023 |
半轴（左） |
1 |
|
|
68 |
AZ9231342024 |
半轴（右） |
2 |
|
|
69 |
190003074340 |
轴密封圈 |
2 |
|
|
70 |
199014320153 |
差速器壳垫片 |
1 |
|
