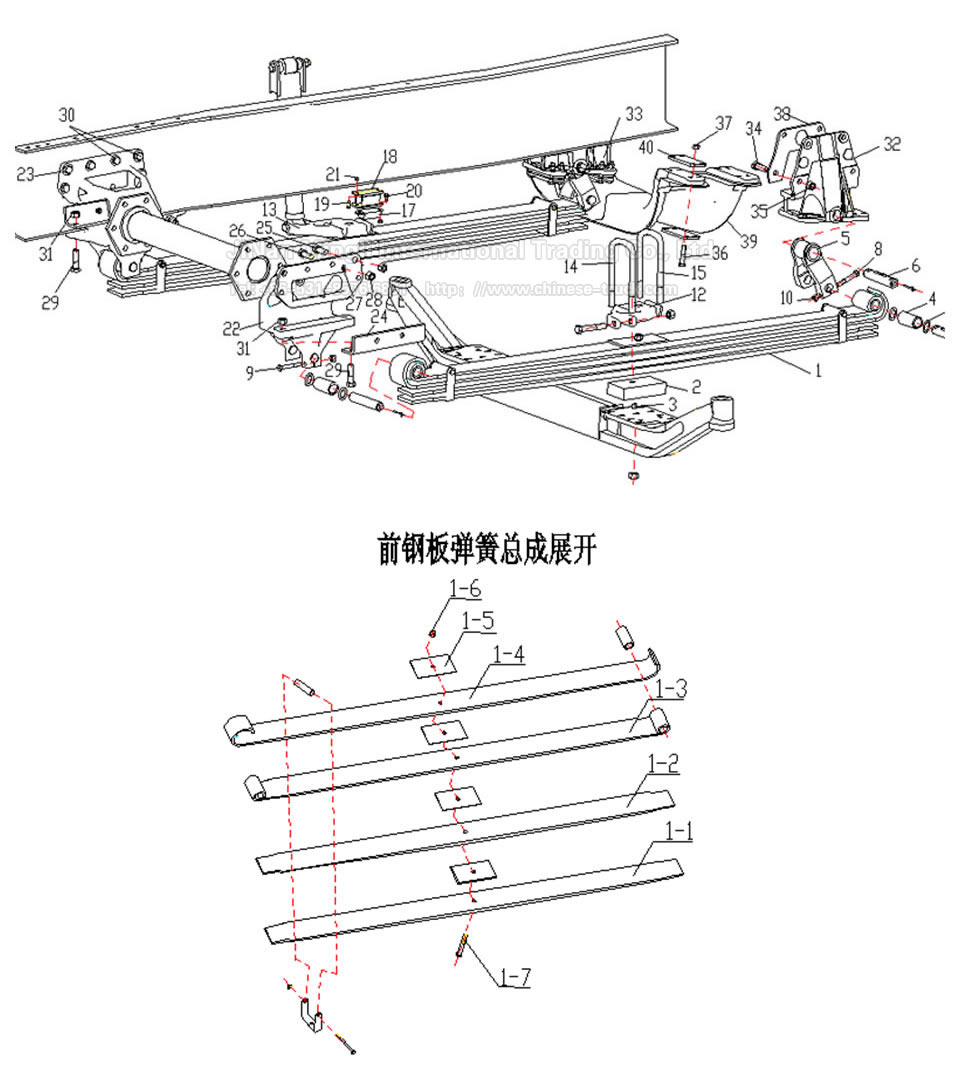

No. |
Part number |
Quantity |
Designation |
Designation |
Name |
Note |
1 |
WG9725522007 |
2 |
|
Spring C of few leaf,front |
少片前钢板弹簧总成 |
|
1-1 |
WG9725522007 +001 |
2 |
|
1st few leaf,front spring |
少片前钢板弹簧第一片 |
|
1-2 |
WG9725522007 +002 |
2 |
|
2nd few leaf,front spring |
少片前钢板弹簧第二片 |
|
1-3 |
WG9725522007 +003 |
2 |
|
3rd few leaf,front spring |
少片前钢板弹簧第三片 |
|
1-4 |
WG9725522007 +004 |
2 |
|
4th few leaf,front spring |
少片前钢板弹簧第四片 |
|
1-5 |
WG9725522007 +005 |
8 |
|
Plate |
垫板 |
|
1-6 |
WG9725522007 +006 |
2 |
|
Center nut,front spring |
少片前钢板弹簧中心螺母 |
|
1-7 |
WG9725522007 +007 |
2 |
|
Center bolt,front spring |
少片前钢板弹簧中心螺栓 |
|
2 |
AZ9925520008 |
2 |
|
Spring seat |
弹簧座 |
|
3 |
199000520006 |
2 |
|
Guide pin |
导向销 |
|
4 |
WG9000520078 |
4 |
|
Bushing |
衬套 |
|
5 |
WG9100520034 |
2 |
|
Spring shackle front C |
前簧吊耳总成 |
|
6 |
WG9100520065 |
6 |
|
Spring catch |
弹簧销 |
|
7 |
1680 520050 |
12 |
|
Washer |
垫圈 |
|
8 |
Q151C1270 |
2 |
|
Screw |
六角头螺栓 |
|
9 |
Q151C1275 |
4 |
|
Screw |
六角头螺栓 |
|
10 |
190003888457 |
6 |
|
Lock nut |
自锁螺母 |
|
11 |
190003963127 |
6 |
|
Grease nipple |
米制锥螺纹滑脂嘴 |
|
12 |
WG9925520037 |
1 |
|
Plate left |
左前簧压板 |
|
13 |
WG9925520038 |
1 |
|
Plate right |
右前簧压板 |
|
14 |
AZ9925520028 |
2 |
|
Spring clip |
前簧骑马螺栓 |
|
15 |
AZ9925520027 |
2 |
|
Spring clip |
前簧骑马螺栓 |
|
16 |
Q33020T13F2 |
8 |
|
Spring washer |
全金属六角法兰面锁紧螺母 |
|
17 |
WG9323520010 |
2 |
|
Stop block C |
限位块总成 |
|
18 |
WG9731520034 |
2 |
|
Stop bracket C |
限位支架总成 |
|
19 |
Q150B1240 |
4 |
|
Screw |
六角头螺栓 |
|
20 |
Q150B1230 |
4 |
|
Screw |
六角头螺栓 |
|
21 |
Q33212 |
8 |
|
Lock nut |
2型全金属六角锁紧螺母 |
|
22 |
WG9925520030 |
1 |
|
Spring bracket front,left |
板簧前左支架 |
|
23 |
WG9925520031 |
1 |
|
Spring bracket front,right |
板簧前右支架 |
|
24 |
AZ9925520023 |
2 |
|
Doubling plate C |
加强板总成 |
|
25 |
Q151B1645 |
5 |
|
Screw |
六角头螺栓 |
|
26 |
Q151B1670TF2 |
3 |
|
Screw |
六角头螺栓(细牙) |
|
27 |
Q40316 |
3 |
|
Spring washer |
弹簧垫圈 |
|
28 |
Q361B16T13F2 |
3 |
|
Nut |
2型六角螺母(10级) |
|
29 |
Q151B1665 |
4 |
|
Screw |
六角头螺栓 |
|
30 |
Q151B1655 |
6 |
|
Screw |
六角头螺栓 |
|
31 |
190003888459 |
15 |
|
Lock nut |
自锁螺母 |
|
32 |
WG9232520010 |
1 |
|
Spring bracket rear,left |
前簧左后支架 |
|
33 |
WG9232520011 |
1 |
|
Spring bracket rear,left |
前簧右后支架 |
|
34 |
Q151B1650 |
8 |
|
Screw |
六角头螺栓 |
|
35 |
190003888459 |
8 |
|
Lock nut |
自锁螺母 |
|
36 |
Q151C1260 |
16 |
|
Screw |
六角头螺栓 |
|
37 |
190003888457 |
16 |
|
Lock nut |
自锁螺母 |
|
38 |
AZ9725523310 |
2 |
|
Plate |
垫板 |
|
39 |
WG9114510512 |
1 |
|
Cross beam |
横梁 |
|
40 |
199100520025 |
8 |
|
Plate |
板 |
|
