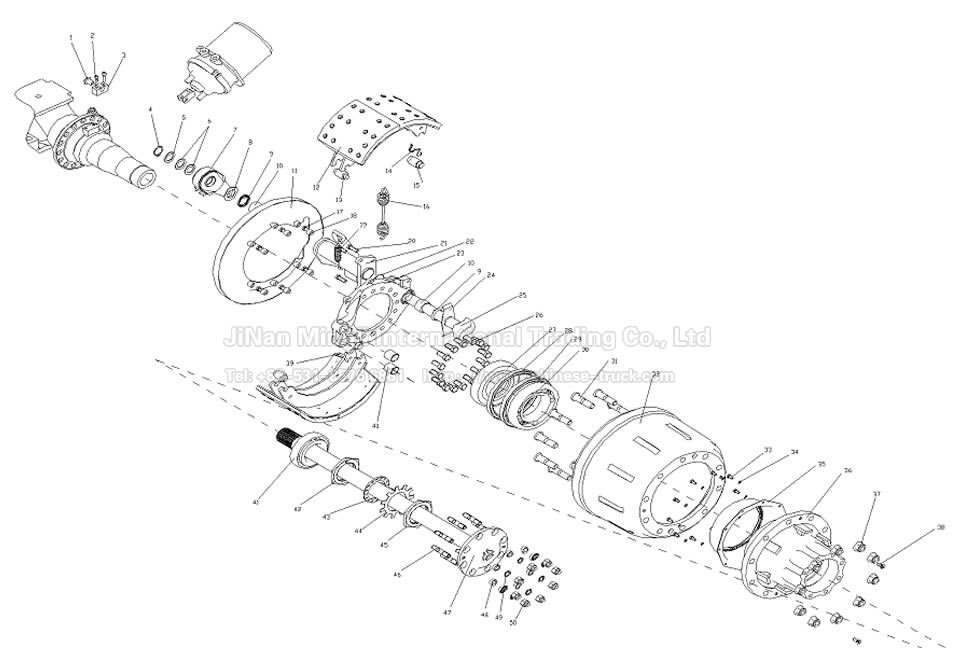

No.
|
Part number
|
Quantity
|
Designation
|
Designation
|
Name
|
Note
|
| 1 | AZ9107346010 | 1 | Bush | ABS传感器输出保护套 | ||
| 2 | Q218B0835 | 2 | Screw | 内六角圆柱头螺钉 | ||
| 3 | AZ9107346006 | 1 | Sensor bracket | 传感器支架 | ||
| 4 | 1229D2942 | 1 | Snap ring | 卡环 | ||
| 5 | 1229W3117 | 1 | Washer | 平垫圈 | ||
| 6 | 1229J3130 | 2 | Washer | 平垫圈 | ||
| 7 | AZ9111340040 | 1 | Self rod adjusting device | 制动间隙调整臂总成 | ||
| 8 | 1229H4090 | 1 | Washer | 平垫圈 | ||
| 9 | A 1205V1556 | 2 | Gasket | 油封--凸轮轴支架 | ||
| 10 | WG1225L1208 | 2 | Bush | 凸轮轴衬套 | ||
| 11 | 3236R2124 | 1 | Brake cover | 防尘罩 | ||
| 12 | AZ9761340106 | 2 | Brake shoe& lining C | 制动蹄带衬片总成 | ||
| 13 | 1259N274 | 2 | Brake shoe pin | 制动蹄支销 | ||
| 14 | 3105B210 | 2 | Bracket | 制动蹄滚轮保持架 | ||
| 15 | 1779R18 | 2 | Pressure roller | 制动蹄滚子 | ||
| 16 | 2258W803 | 1 | Spring washer | 弹簧--制动蹄 | ||
| 17 | Q150B1028 | 6 | Screw | 六角头螺拴 | ||
| 18 | AZ9118340012 | 6 | Washer | 防尘罩垫块 | ||
| 19 | 2258H1230 | 2 | Spring | 弹簧 | ||
| 20 | Q150B1235 | 4 | Screw | 六角头螺栓 | ||
| 21 | AZ9761345541 | 1 | Bracket.1 | 制动气室支架总成（左） | ||
| 22 | 1205G761 | 1 | O-ring | O 形圈 | ||
| 23 | 3211W6003 | 1 | Brake anchor | 制动底板 | ||
| 24 | 1229G4089 | 1 | Shim | 凸轮头部垫片 | ||
| 25 | AZ9761348144 | 1 | Brake camshaft | 凸轮轴 | ||
| 26 | Q151B1635TF2 | 15 | Screw | 六角头螺栓 | ||
| 27 | AZ9111340017 | 1 | Spacer ring | 隔圈 | ||
| 28 | WG9112340114 | 1 | Gasket | 轴密封圈 | ||
| 29 | WG9112340113 | 1 | Gasket | 轴密封圈 | ||
| 30 | WG9100340001 | 1 | Roller bearing | 圆锥滚子轴承 33022X2 | ||
| 31 | WG9107340002 | 10 | Wheet bolt | 车轮螺拴（强度等级10.9） | ||
| 32 | AZ9118340006 | 1 | Brake grum | 制动鼓 | ||
| 33 | Q150B0816 | 10 | Screw | 六角头螺栓 | ||
| 34 | Q40308 | 10 | Spring washer | 弹簧垫圈 | ||
| 35 | WG9761340022 | 1 | Oil drip pan | 挡油罩 | ||
| 36 | AZ9761340092 | 1 | Rear wheel hub | 后轮毂 | ||
| 37 | WG9003884160 | 10 | Nut | 车轮螺母 | ||
| 38 | Q2541025 | 2 | Screw | 十字槽沉头螺钉 | ||
| 39 | 1218G85 | 2 | Pin | 制动弹簧销 | ||
| 40 | WG1225L1208 | 2 | Bearing bush | 凸轮轴衬套 | ||
| 41 | 32218 | 1 | Roller bearing | 圆锥滚子轴承GB/T297-94 | ||
| 42 | 1227N1184 | 1 | Nut | 轮毂轴承内调整螺母 | ||
| 43 | 1229M3003 | 1 | Shim | 锁止垫片 | ||
| 44 | AZ9107334673 | 1 | Securing sheet | 锁紧垫圈 | ||
| 45 | 1227P1186 | 1 | Nut | 轮毂轴承外调整螺母 | ||
| 46 | WG9107340003 | 8 | Stud | 双头螺柱（强度等级10.9） | ||
| 47 | AZ9761341020 | 1 | Drive axle left | 半轴(左) | ||
| 48 | 1246V1166 | 8 | Cone bush | 锥套 | ||
| 49 | 1229X518 | 8 | Securing sheet | 外齿型防松垫圈 | ||
| 50 | 190003888627 | 8 | Securing nut | 自锁螺母 |
