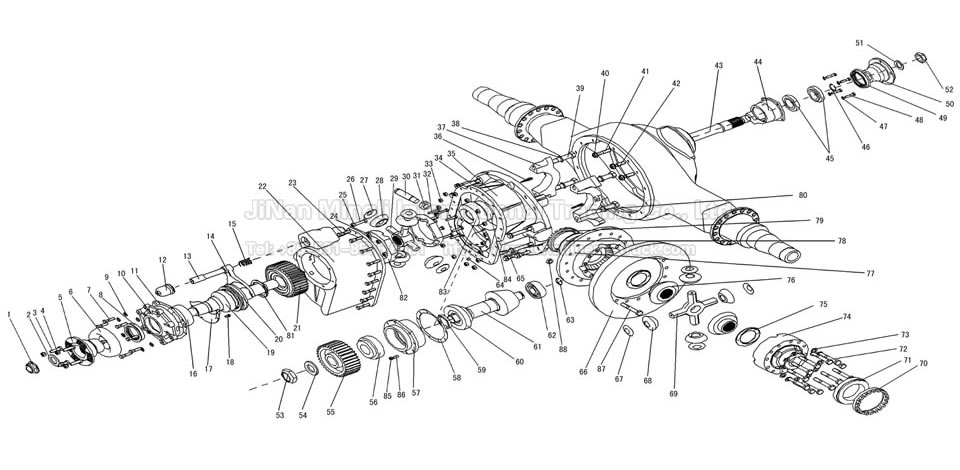

No.
|
Part number
|
Quantity
|
Designation
|
Designation
|
Name
|
Note
|
| 1 | WG40X1233 | 1 | Nut | 自锁螺母 | ||
| 2 | 1229N1730 | 1 | Washer | 垫圈 | ||
| 3 | Q151B1450TF2 | 4 | Screw | 六角头螺栓 | ||
| 4 | AZ9003888458 | 4 | Nut | 自锁螺母(14×1.5 10级) | ||
| 5 | AZ9761320281 | 1 | ф180 Toothed flange | 端面齿法兰（Φ180） | ||
| 6 | 3264G189 | 1 | Shield | 防护罩 | ||
| 7 | MS212045 1 | 7 | Screw | 螺栓 | ||
| 8 | A 1205J2428 | 1 | Gasket | 油封总成 | ||
| 9 | 1229D4632 | 7 | Washer | 平垫圈 | ||
| 10 | A 3226H1126 | 1 | Bearing housing | 输入轴承座总成 | ||
| 11 | 2203K9241 | 3 | Shim | 垫片 | ||
| 2203L9242 | 2 | Shim | 垫片 | |||
| 2203M9243 | 1 | Shim | 垫片 | |||
| 12 | A2 3261Q1057 | 1 | Cylinder | 气缸总成 | ||
| 13 | 2244K1025 | 1 | Lever | 轴间差速锁推杆 | ||
| 14 | AZ9761321086 | 1 | Shifting fork | 拨叉 | ||
| 15 | 2258U411 | 1 | Spring | 弹簧 | ||
| 16 | HM813810-HM813844 | 1 | Bearing | 轴承 | ||
| 17 | AZ9111320020 | 1 | Oil drip pan | 挡油罩 | ||
| 18 | Q150B0816、Q40308 | 各3 | Screw&Spring washer | 六角头螺栓、弹簧垫圈 | ||
| 19 | AZ9761321195 | 1 | Input shaft | 输入轴总成 | ||
| 20 | 3107U1061 | 1 | Mesh set | 啮合套成品 | ||
| 21 | AZ9761320085 | 1 | Driving cylindrical gear | 主动圆柱齿轮总成 | ||
| 22 | AZ9761321312 | 1 | Housing | 过桥箱 | ||
| 23 | Q150B1250 | 18 | Screw | 六角头螺栓 | ||
| 24 | Q340B10、1229K1597 | 各8 | Nut&Washer | 六角螺母、垫圈 | ||
| 25 | MN 312 1 | 1 | Nut | 六角头螺母（C-010M） | ||
| 26 | 41X1208 | 1 | Screw | 螺栓（10.9级） | ||
| 27 | 1229Q2929 | 4 | Washer | 止推垫片 | ||
| 28 | 2233K245 | 4 | Bevel pinion | 轴间差速器行星齿轮 | ||
| 29 | 3278N300 | 1 | Diff.spider | 轴间差速器十字轴成品 | ||
| 30 | AZ9761321167 | 1 | Screw | 止推螺栓 | ||
| 31 | 1227D472 | 1 | Nut | 六角螺母 | ||
| 32 | MS210080A 1 | 8 | Screw | 螺栓 | ||
| 33 | Q340B12、Q40312 | 各18 | Nut&Spring washer | Ⅰ型六角头螺母、弹簧垫圈 | ||
| 34 | MS216120 1 | 5 | Screw | 六角头螺栓（B-020M） | ||
| 35 | AZ9761321894 | 1 | Housing for 1st rear axle driver | 主减速器壳 | ||
| 36 | 1199R2176 | 2 | Split pin | 开口销-调整环锁止 | ||
| 37 | A 3212Z1196 | 1 | Spring housing | 轴承盖总成 | ||
| 38 | 42X1024 | 4 | Washer | 垫圈 | ||
| 39 | 41X1018 | 4 | Screw | 六角头螺栓(10.9级) | ||
| 40 | MN 316 1 | 3 | Screw | 六角螺母（10.0级 C-010M） | ||
| 41 | 4X1746 | 1 | Stud | 双头螺柱（10.9级） | ||
| 42 | 4X1740 | 2 | Stud | 双头螺柱（10.9级） | ||
| 43 | AZ9761321010 | 1 | Transfixion shaft | 贯通轴 | ||
| 44 | AZ9761321112 | 1 | Spring housing | 轴承座 | ||
| 45 | 385A-382A | 2 | Bearing | 轴承内圈-轴承外圈 | ||
| 46 | AZ9761322590 | 1 | Snap ring | 孔用卡簧组-贯通轴后轴承（按需使用） | ||
| 47 | Q40110 | 4 | Washer | 平垫圈 | ||
| 48 | Q150B1025 | 4 | Screw | 六角头螺栓 | ||
| 49 | AZ9761322430 | 1 | Cover | 油封总成 | ||
| 50 | AZ9761320282 | 1 | ф165 Toothed flange | HW1697桥中桥端面齿输出法兰（Φ165） | ||
| 51 | 1229T1736 | 1 | Washer | 平垫圈 | ||
| 52 | 40X1237 | 1 | Nut | 锁紧螺母（12.0级） | ||
| 53 | WG40X1145 | 1 | Nut | 自锁螺母 （12.0级） | ||
| 54 | 1229G4063 | 1 | Washer | 平垫圈 | ||
| 55 | AZ9761320016 | 1 | Driven cylindrical gear | 从动圆柱齿轮 | ||
| 56 | H715311-H715341 | 1 | Bearing | 轴承外圈-轴承内圈 | ||
| 57 | AZ9761320017 | 1 | Spring housing | 轴承座 | ||
| 58 | AZ9761322785 | 1 | Shim | 主动锥齿轮轴承座垫片组-按需使用 | ||
| 59 | AZ9761320020 | 1 | Shim | 调整垫圈组0021-0066 | ||
| 60 | 9185-9121 | 1 | Bearing | 轴承内圈-轴承外圈 | ||
| 61 | AZ9761320124 | 1 | Pinion gear | 主动锥齿轮（上偏置25.4，齿数9） | ||
| 62 | WG1228S1267 | 1 | Bearing | 滚柱轴承 | ||
| 63 | 1229L1624 | 1 | Gasket | 轴用挡圈 | ||
| 64 | Q5211016 | 2 | Pin | 园柱销 | ||
| 65 | MS216060 1 | 6 | Screw | 六角头螺栓（B-020M） | ||
| 66 | AZ9761320125 | 1 | Ring gear | 从动锥齿轮（上偏置25.4，齿数38） | ||
| 67 | 1229K3001 | 4 | Washer | 止推垫片 | ||
| 68 | AZ9118321001 | 4 | Bevel pinion | 差速器行星齿轮成品 | ||
| 69 | 3278W335 | 1 | Diff.spider | 差速器十字轴成品 | ||
| 70 | 2214S1137 | 1 | Screwed ring | 差速器轴承调整螺母成品 | ||
| 71 | JM822010-JM822049 | 1 | Bearing | 轴承内圈-轴承外圈 | ||
| 72 | WG41X1275 | 12 | Screw | 差速器壳联接螺栓（12.9级） | ||
| 73 | 1229U1503 | 12 | Washer | 平垫圈 | ||
| 74 | 3235F2138 | 1 | Diff.housing | 差速器半壳(不带法兰) | ||
| 75 | 1229L3002 | 2 | Washer | 止推垫片 | ||
| 76 | 2234Z1066 | 2 | Bevel pinion | 半轴齿轮 | ||
| 77 | AZ9761322143 | 1 | Diff.housing | 差速器半壳（带法兰） | ||
| 78 | NP022042-NP579116 | 1 | Bearing | 轴承内圈-轴承外圈 | ||
| 79 | 2214G1125 | 1 | Screwed ring | 差速器轴承调整螺母成品 | ||
| 80 | A 3212X1194 | 1 | Bearing housing | 轴承盖总成 | ||
| 81 | AZ9761324785 | 1 | Washer | 输入轴止推垫圈 | ||
| 82 | 3235Q1967 | 2 | Diff.housing | 轴间差速器壳（前） | ||
| 83 | AZ9761321190 | 1 | Diff.housing | 轴间差速器半轴齿轮 | ||
| 84 | JM714210-JM714249 | 1 | Bearing | 轴承内圈-轴承外圈 | ||
| 85 | Q340B12、Q40312 | 各9 | Screw&Spring washer | Ⅰ型六角头螺母-弹簧垫圈 | ||
| 86 | Q1201232 | 9 | Stud | 双头螺柱 | ||
| 87 | AZ9118321334 | 16 | Bearing | 被动锥齿轮联接螺栓（12.9级） | ||
| 88 | WG40X1182、1229W1557 | 16 | Nut&Washer | 自锁螺母-GB3098.2 12.0级、平垫圈 | ||
| 89 | AZ9111320010 | 1 | Helix Plug | 螺塞 | ||
| 90 | MWA 516 | 14 | Washer | 平垫圈 |
