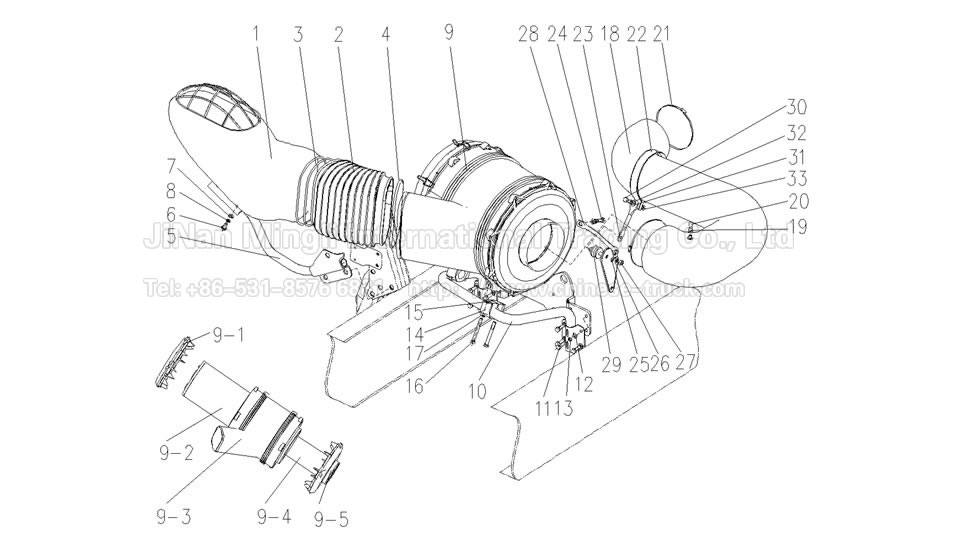

No.
|
Part number
|
Quantity
|
Designation
|
Designation
|
Name
|
Note
|
| 1 | WG9925190003 | 1 | Intake hose | 进气管 | ||
| 2 | WG9925190004 | 1 | Intake hose | 进气胶管 | ||
| 3 | Q675240 | 1 | Clamp | 软管卡箍 | ||
| 4 | Q675210 | 1 | Clamp | 软管卡箍 | ||
| 5 | AZ9925190019 | 1 | Bracket | 进气管支架总成 | ||
| 6 | Q150B0820 | 2 | Screw | 六角头螺栓 | ||
| 7 | Q40108 | 2 | Washer | 平垫圈 | ||
| 8 | Q40308 | 2 | Spring washer | 弹簧垫圈 | ||
| 9 | WG9925190005 | 1 | Air cleaner | 空滤器总成 | ||
| 9-1 | WG9925190005+003/1 | 1 | Cover | 密封端盖(曼.胡默尔) | ||
| 9-2 | WG9725190102/1 | 1 | Element | 主滤芯总成（曼.胡默尔） | ||
| 9-3 | WG9925190005+001/1 | 1 | Air cleaner shell | 空滤器壳体(曼.胡默尔) | ||
| 9-4 | WG9725190103/1 | 1 | Secondary element | 安全滤芯总成（曼.胡默尔） | ||
| 9-5 | WG9925190005+002/1 | 1 | Cover | 出气口端盖(曼.胡默尔) | ||
| 10 | AZ9925190020 | 1 | Bracket | 空滤器支架总成 | ||
| 11 | Q150B1030 | 8 | Screw | 六角头螺栓 | ||
| 12 | Q40110 | 8 | Washer | 平垫圈 | ||
| 13 | Q40310 | 8 | Spring washer | 弹簧垫圈 | ||
| 14 | AZ9725190012 | 2 | Support | 固定支座 | ||
| 15 | AZ9725190013 | 2 | Rubber support | 橡胶支座 | ||
| 16 | Q150B1065 | 4 | Screw | 六角头螺栓 | ||
| 17 | Q40110 | 4 | Washer | 平垫圈 | ||
| 18 | WG9925190016 | 1 | Air hose | 空气软管 | ||
| 19 | WG1200190040 | 1 | Indicator | 干式空滤器堵塞指示器开关 | ||
| 20 | WG9100770028 | 1 | Cover | 保护罩 | ||
| 21 | 190003989365 | 1 | Clamp | 软管卡箍 | ||
| 22 | AZ9925190021 | 1 | Clamp | 管夹 | ||
| 23 | AZ9925190022 | 1 | Support | 支撑板 | ||
| 24 | Q150B1028 | 1 | Screw | 六角头螺拴 | ||
| 25 | Q40110 | 1 | Washer | 平垫圈 | ||
| 26 | Q40310 | 1 | Spring washer | 弹簧垫圈 | ||
| 27 | Q340B10 | 1 | Nut | 六角螺母 | ||
| 28 | AZ9925190023 | 1 | Support | 空滤器辅助支撑杆 | ||
| 29 | 1380A 540083 | 1 | Rubber support | 橡胶金属支承 | ||
| 30 | Q150B1022 | 1 | Screw | 六角头螺栓 | ||
| 31 | Q40110 | 3 | Washer | 平垫圈 | ||
| 32 | Q40310 | 3 | Spring washer | 弹簧垫圈 | ||
| 33 | Q340B10 | 2 | Nut | 六角螺母 |
