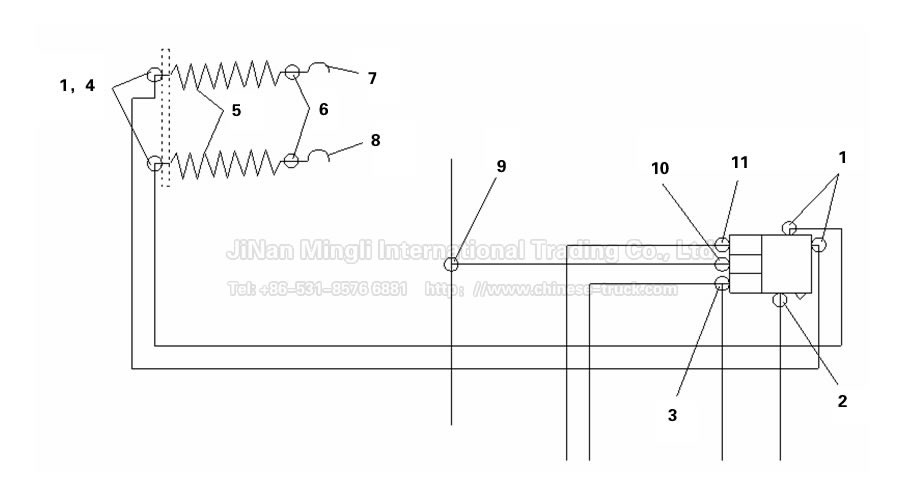

No.
|
Part number
|
Quantity
|
Designation
|
Designation
|
Name
|
Note
|
| 1 | WG9000361204 | 4 | V204 | 直角接头体NG12/NW9 | φ12 | |
| 2 | WG9000361101 | 1 | V101 | 直通接头体NG12/NW9 | φ12 | |
| 3 | WG9000361304 | 1 | V304 | L型三通接头体NG12/2-NW6 | ||
| 4 | WG9000361105 | 2 | V105 | 卡套式直通过板接头体L12/NG12 | ||
| 5 | WG9000360140 | 2 | 螺旋管 | |||
| 6 | 190003559490 | 2 | L89 | 卡套式端直通接头体M16/M18 | ||
| 7 | WG9000360170 | 1 | 挂车接头(供能红) | |||
| 8 | WG9000360171 | 1 | 挂车接头(控制黄) | |||
| 9 | WG9000361319 | 1 | V319 | T型三通接头体2-NW9/NW6 | ||
| 10 | WG9000361104 | 1 | V104 | 直通接头体NG12/NW6 | ||
| 11 | WG9000361106 | 1 | V106 | 直通接头体NG8/NW6 | ||
|
其他管路连接件
|
||||||
| WG9000361004 | 1 | V004 | 弹性元件NG12 | φ8 | ||
| WG9000361005 | 1 | V005 | 卡簧NG12 | φ8 | ||
| WG9000361006 | 1 | V006 | 螺母座NG12 | φ8 | ||
| WG9000361007 | 5 | V007 | 弹性元件NG12 | φ12 | ||
| WG9000361008 | 5 | V008 | 卡簧NG12 | φ12 | ||
| WG9000361009 | 5 | V009 | 螺母座NG12 | φ12 | ||
| WG9000361014 | 2 | V014 | 六角薄螺母M18X1.5 | |||
| WG9000360292 | 2 | P5 | 密封圈 | |||
| 1406 070015 | 2 | P6 | 密封圈 | |||
| WG9000361013 | 2 | V013 | 六角薄螺母M16X1.5 | |||
