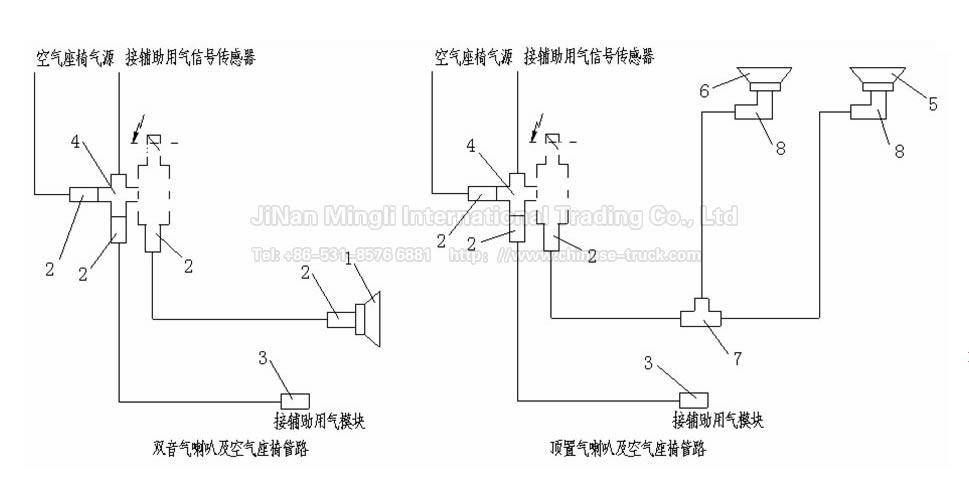

No.
|
Part number
|
Quantity
|
Designation
|
Designation
|
Name
|
Note
|
| 1 | WG9000270002 | 1 | 双音气喇叭无支架 | 双音气喇叭 | ||
| 2 | WG9000361107 | 4 | V107 | 直通接头体NG6/NW4 | 双音气喇叭 | |
| 3 | V107 | 顶置气喇叭 | ||||
| 3 | WG9000361109 | 1 | 直通接头体NG8/NW4 | 双音/顶置气喇叭 | ||
| 4 | WG9000361405 | 1 | V405 | 十字四通接头体2-NG6/M10×1/L6 | 双音/顶置气喇叭 | |
| 5 | WG9000270004 | 1 | 气喇叭总成(长杆) | 顶置气喇叭 | ||
| 6 | WG9000270005 | 1 | 气喇叭总成(短杆) | 顶置气喇叭 | ||
| 7 | WG9000361317 | 1 | V317 | T型三通接头体3-NW6 | 顶置气喇叭 | |
| 8 | WG9000361207 | 2 | V207 | 直角接头体NG6/NW4 | 顶置气喇叭 | |
|
其他管路连接件
|
||||||
| AZ9925360863 | 1 | 双音气喇叭支架 | 双音气喇叭 | |||
| Q150B0620 | 2 | 六角头螺栓 | 双音气喇叭 | |||
| Q40306 | 2 | 弹簧垫圈 | 双音气喇叭 | |||
| Q40106 | 2 | 平垫圈 | 双音气喇叭 | |||
| Q340B06 | 2 | I型六角螺母 | 双音气喇叭 | |||
| WG9000361001 | 2 | V001 | 弹性元件NG6 | 双音气喇叭 | ||
| 3 | 顶置气喇叭 | |||||
| WG9000361002 | 2 | V002 | 卡簧NG6 | 双音气喇叭 | ||
| 3 | 顶置气喇叭 | |||||
| WG9000361003 | 2 | V003 | 螺母座NG6 | 双音气喇叭 | ||
| 3 | 顶置气喇叭 | |||||
| Q150B0816 | 2 | 六角头螺栓 | 双音气喇叭 | |||
| Q40308 | 2 | 弹簧垫圈 | 双音气喇叭 | |||
| Q40108 | 2 | 平垫圈 | 双音气喇叭 | |||
| Q340B08 | 2 | I型六角螺母 | 双音气喇叭 | |||
| Q150B0830 | 6 | 六角头螺栓 | 顶置气喇叭 | |||
| Q40308 | 6 | 弹簧垫圈 | 顶置气喇叭 | |||
| Q40108 | 6 | 平垫圈 | 顶置气喇叭 | |||
| 190003179782 | 8 | 单位：m | 聚酰胺管子φ6 | 双音/顶置气喇叭 | ||
