No.
|
Part number
|
Quantity
|
Designation
|
Designation
|
Name
|
Note
|

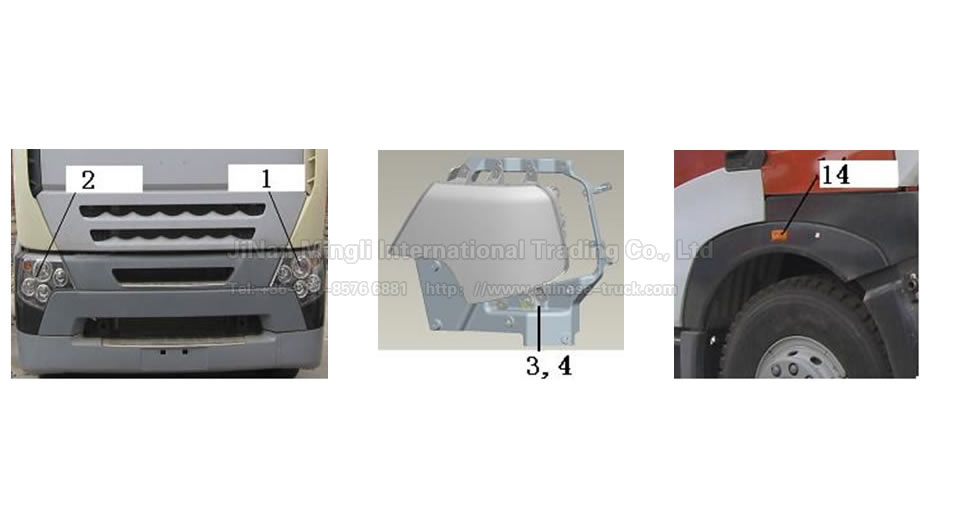

| 1 | WG9925720001 | 001 | Left head lamp | 组合前照灯总成(左) | ||
| 2 | WG9925720002 | 001 | Right head lamp | 组合前照灯总成(右) | ||
| 3 | AZ9925720001 | 001 | Left head lamp Bracket | 前大灯左支架 | ||
| 4 | AZ9925720002 | 001 | Right head lamp Bracket | 前大灯右支架(与左件对称) | ||
| 5 | Q150B0825 | 010 | Screw | 六角头螺栓 | ||
| 6 | Q340B08 | 010 | Nut | 1型六角螺母 | ||
| 7 | Q40308 | 010 | Spring washer | 弹簧垫圈 | ||
| 8 | Q40108 | 010 | Even washer | 平垫圈 | ||
| 9 | Q2714819 | 002 | Screw | 十字槽盘头自攻螺钉 | ||
| 10 | Q150B1025 | 008 | Screw | 六角头螺栓 | ||
| 11 | Q40210 | 008 | Washer | 大垫圈 | ||
| 12 | Q40310 | 008 | Spring washer | 弹簧垫圈 | ||
| 13 | Q340B10 | 008 | Nut | 六角螺母 | ||
| 14 | WG9925720012 | 001 | Left side direction indicato | 侧转向灯(左) | ||
| 15 | WG9925720013 | 001 | Right side direction indicator | 侧转向灯(右) | ||
| 16 | Q340B06 | 004 | Nut | I型六角螺母 | ||
| 17 | Q40306 | 004 | Spring washer | 弹簧垫圈 | ||
| 18 | Q40106 | 004 | Even washer | 平垫圈 |
