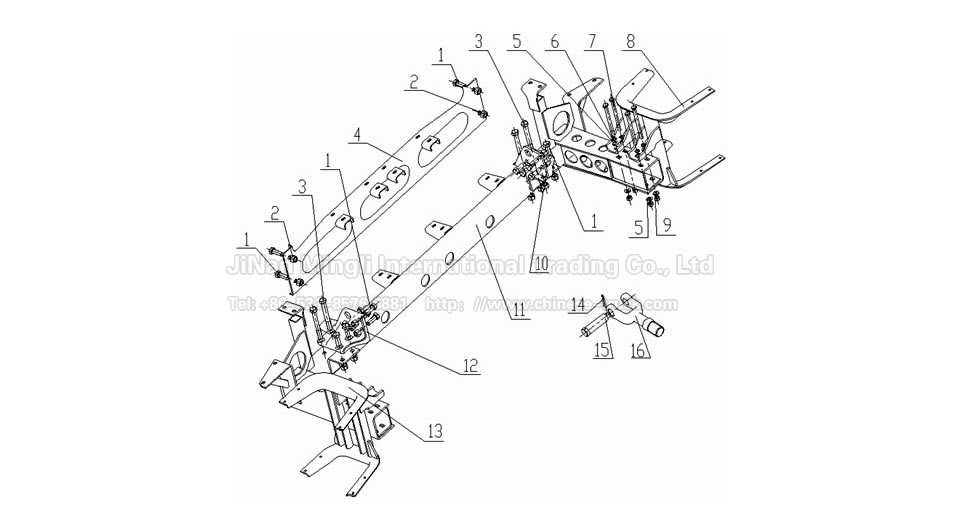

No.
|
Part number
|
Quantity
|
Designation
|
Designation
|
Name
|
Note
|
| 1 | Q150B1645 | 16 | Screw | 六角头螺栓 | ||
| 2 | Q33216 | 20 | Nut | 自锁螺母 | ||
| 3 | AZ9925930032 | 4 | Screw | 螺栓 | ||
| 4 | AZ9925930025 | 1 | Upper bracket assembly | 上支架总成 | ||
| 5 | Q40112 | 16 | Washer | 垫圈 | ||
| 6 | Q40312 | 8 | Spring washer | 弹簧垫圈 | ||
| 7 | Q150B12150 | 8 | Screw | 六角头螺栓 | ||
| 8 | AZ9925930006 | 1 | Bracket assembly for right pedal | 右踏板支架总成 | ||
| 9 | Q340B12 | 8 | Nut | Ⅰ型六角螺母 | ||
| 10 | WG9925930031 | 1 | Right bracket | 右支架 | ||
| 11 | AZ9925930001 | 1 | Bumper bracket assembly | 保险杠支架总成 | ||
| 12 | WG9925930030 | 1 | Left bracket | 左支架 | ||
| 13 | AZ9925930016 | 1 | Bracket assembly for left pedal | 左踏板支架总成 | ||
| 14 | AZ9008830001 | 1 | Locking pin | 锁销 | ||
| 15 | AZ9925930038 | 1 | Dowel | 销子 | ||
| 16 | AZ9925930037 | 1 | Drag hook | 牵引钩 |
