No.
|
Part number
|
Quantity
|
Designation
|
Designation
|
Name
|
Note
|

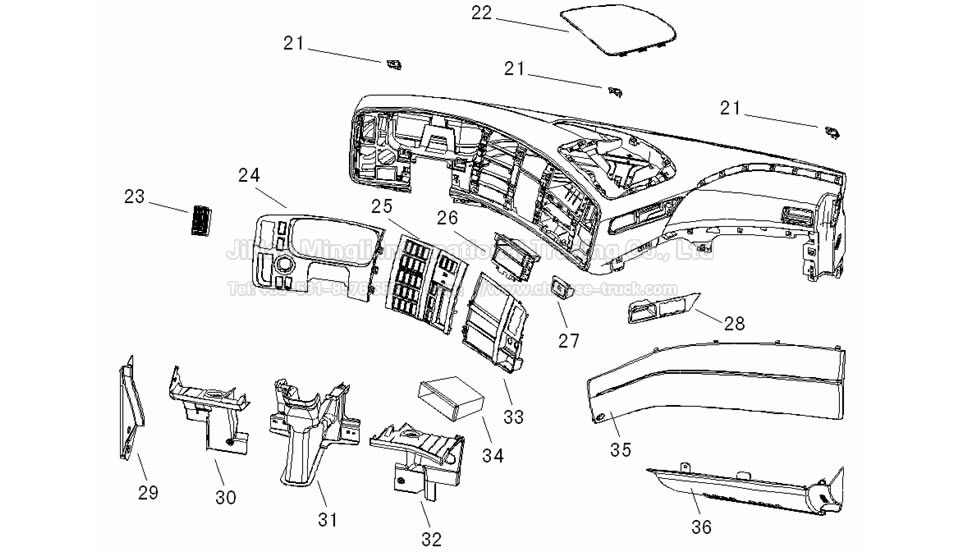

| 21 | AZ1664160170 | 3 | screw cover | 螺钉堵盖 | ||
| 22 | WG1664160260 | 1 | electric box cover | 电器箱盖总成 | ||
| 23 | AZ1642160150 | 4 | air outlet | 出风口总成 | ||
| 24 | WG1664160210 | 1 | cluster cover | 仪表面板总成 | ||
| Q2204816 | 5 | Combination self taping screw | 十字槽盘头自攻螺钉和平垫圈组合件 | |||
| 25 | WG1664160240 | 1 | center panel | 中间面板总成 | ||
| 26 | WG1664160205 | 1 | upper box-center left panel | 上储物盒-中左侧面板 | ||
| Q2300620 | 3 | Combination screw | 十字槽盘头螺钉和平垫圈组合件 | |||
| Q2204816 | 2 | Combination self taping screw | 十字槽盘头自攻螺钉和平垫圈组合件 | |||
| 27 | WG1664160220 | 1 | ash tray | 烟灰盒总成 | ||
| 28 | WG1664160250 | 1 | center right panel | 中右侧面板总成 | ||
| 29 | AZ1664160300 | 1 | a pillar left lower panel | A柱左下护板 | ||
| Q2204816 | 1 | Combination self taping screw | 十字槽盘头自攻螺钉和平垫圈组合件 | |||
| Q39748201 | 1 | clip nut | 簧片螺母 | |||
| 30 | AZ1664160310 | 1 | left lower panel | 司机侧左下护板总成 | ||
| Q2204816 | 3 | Combination self taping screw | 十字槽盘头自攻螺钉和平垫圈组合件 | |||
| Q2300620 | 1 | Combination screw | 十字槽盘头螺钉和平垫圈组合件 | |||
| 31 | AZ1664160290 | 1 | column cover | 转向柱护罩 | ||
| Q2204816 | 2 | Combination self taping screw | 十字槽盘头自攻螺钉和平垫圈组合件 | |||
| 32 | AZ1664160315 | 1 | right lower panel | 司机侧右下护板总成 | ||
| Q2204816 | 4 | Combination self taping screw | 十字槽盘头自攻螺钉和平垫圈组合件 | |||
| 33 | WG1664160215 | 1 | center left panel | 中左侧面板总成 | ||
| Q2204816 | 3 | Combination self taping screw | 十字槽盘头自攻螺钉和平垫圈组合件 | |||
| 34 | WG1664160225 | 1 | lower box-center left panel | 下储物盒总成-中左侧面板 | ||
| 35 | WG1664160340 | 1 | right lower center panel(high floor cab) | 副司机侧下护板总成（高地板） | ||
| Q2204816 | 1 | Combination self taping screw | 十字槽盘头自攻螺钉和平垫圈组合件 | |||
| 36 | WG1664160390 | 1 | right lower panel | 副司机侧下护板下件总成 | ||
| Q2714816 | 3 | self taping screw | 十字槽盘头自攻螺钉 | |||
| Q40205 | 3 | washer | 大垫圈 |
